Compact HYDRA-360S desktop cylinder UV printer delivers high-precision spiral printing for tumblers, bottles, cans and tapered products. Equipped with 6-color ink system, Epson printhead and full servo control, it supports vivid color, 3D embossed and glossy finish, ideal for custom promotional merchandise small batch production.
Product List
Get Inquiry
If you want to start or expand your custom printing business on tumblers, water bottles, cans, and other cylindrical products, the FOCUS HYDRA-360S Desktop Cylinder Printer is the ideal solution. Many small and medium printing shops face the same challenges:
The HYDRA-360S solves these pain points with a compact, all-in-one design, professional-grade print quality, and versatile material compatibility. Whether you are a custom print shop, promotional product supplier, or e-commerce seller, this printer helps you meet personalized order demands quickly and profitably.

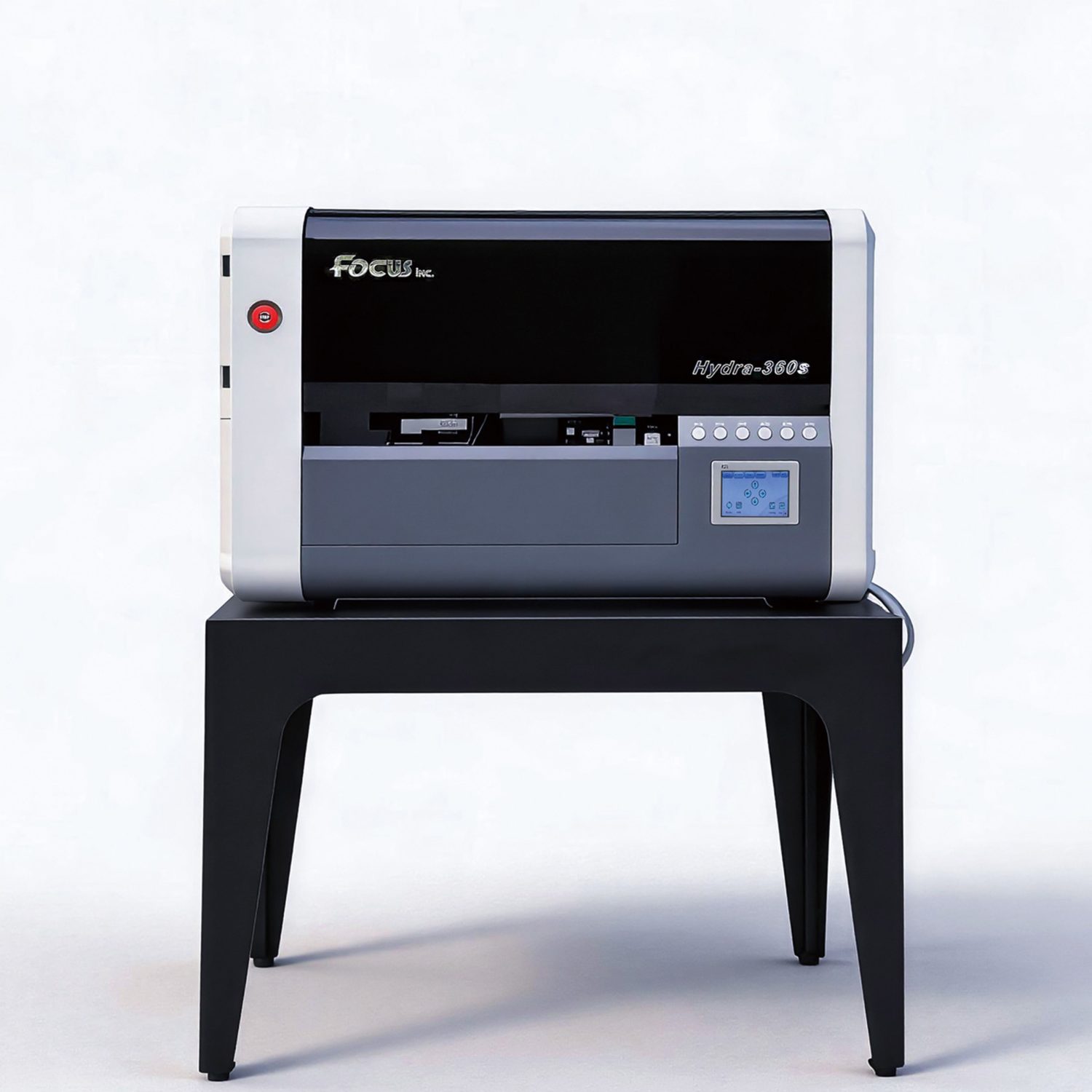

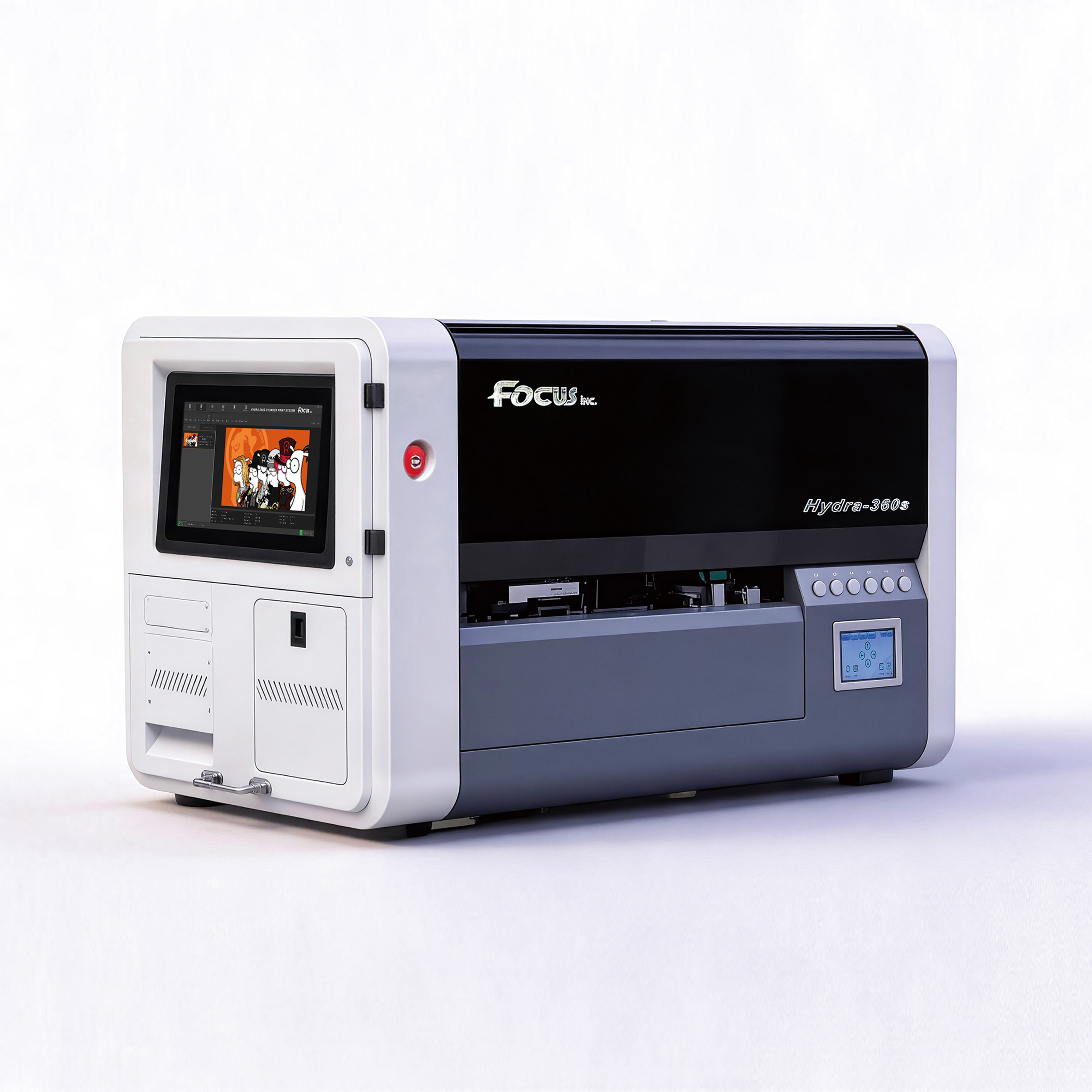

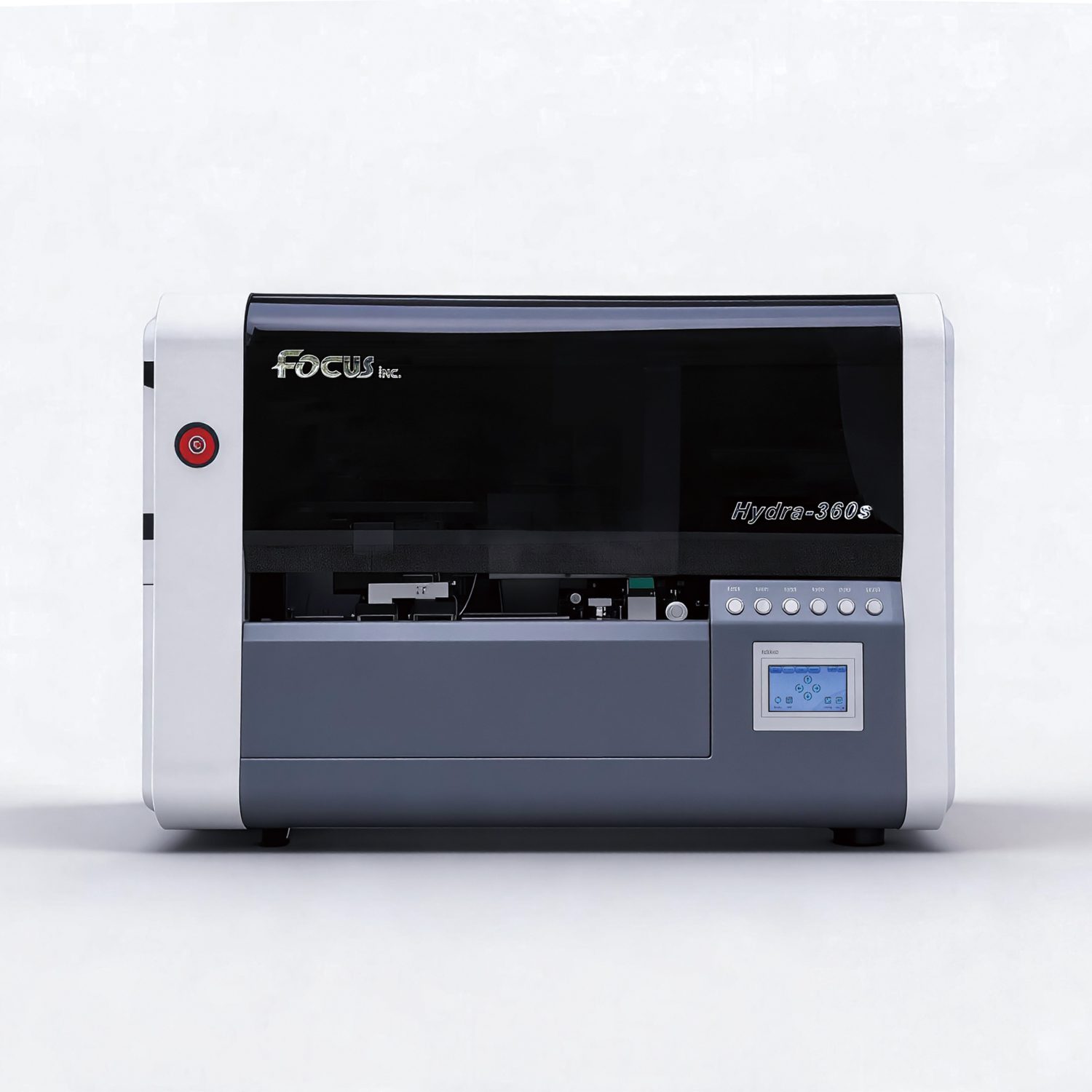

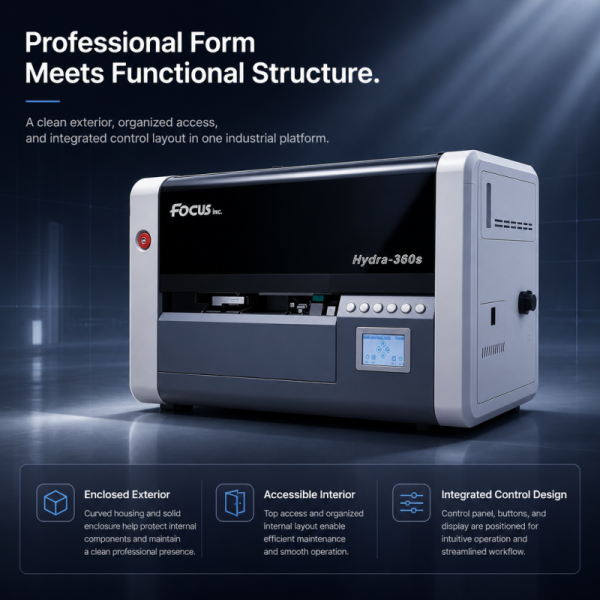

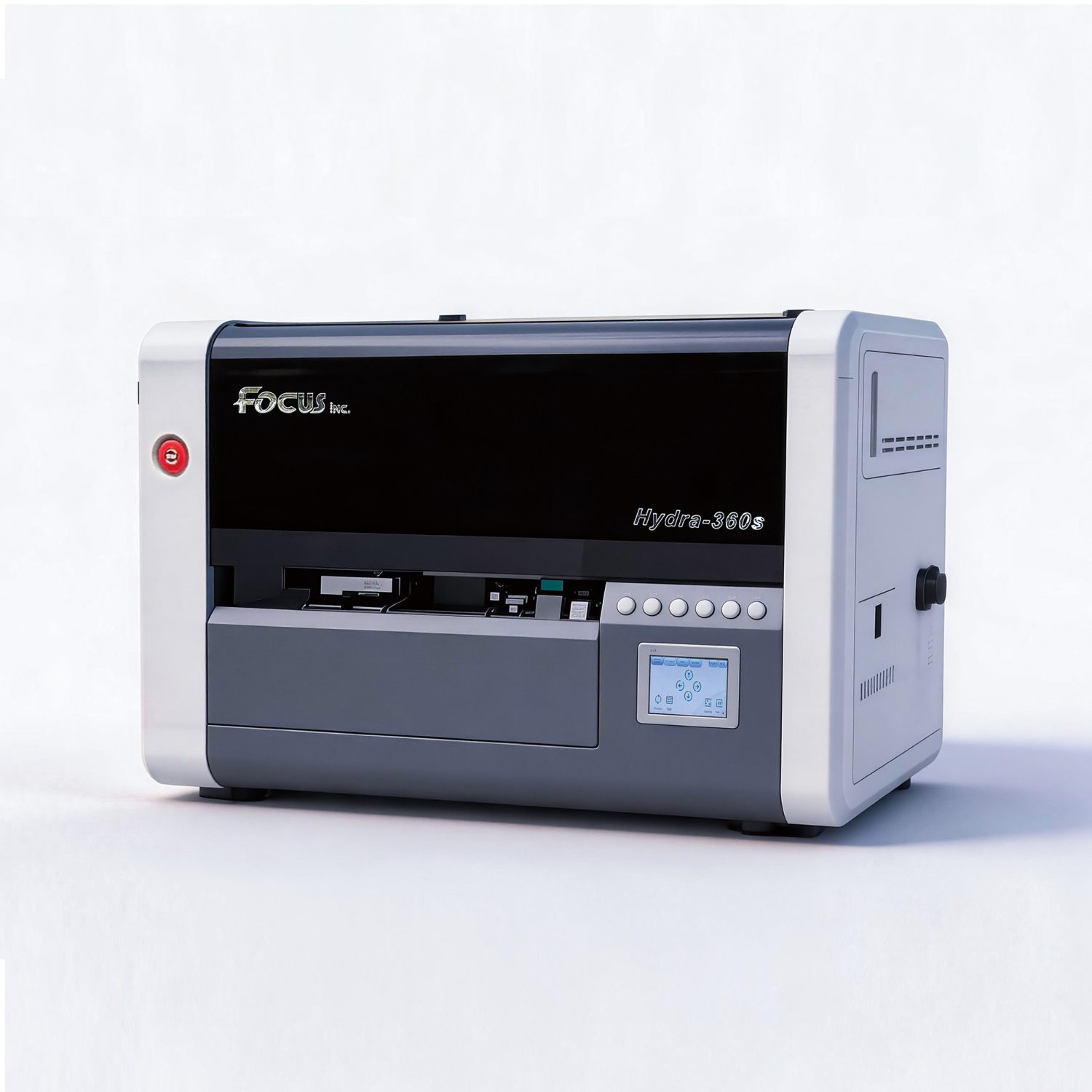

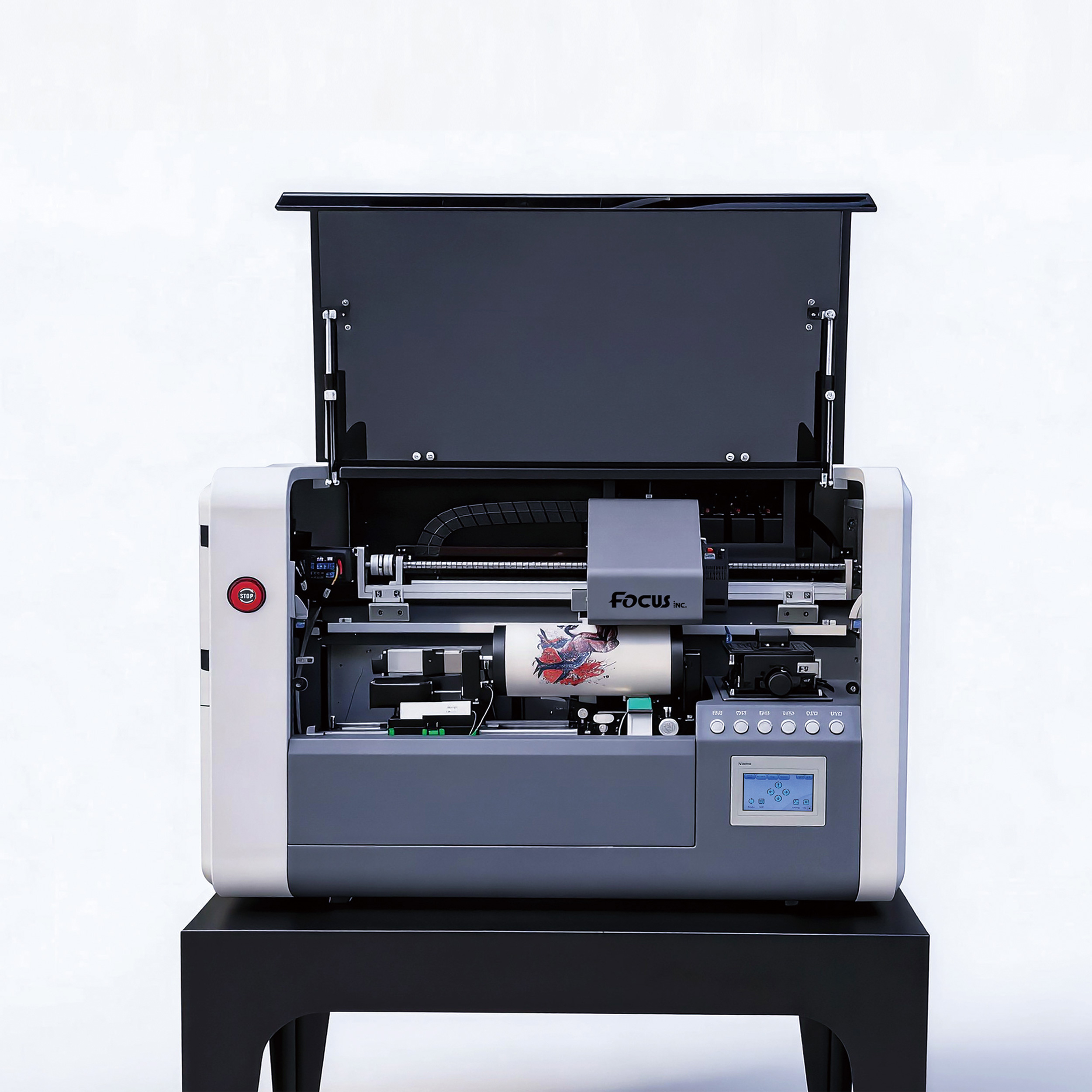

The FOCUSINC HYDRA-360S desktop UV cylinder printer is a compact, high-precision desktop cylinder UV printer designed for custom printing on cylindrical and tapered products. It combines advanced printing technology, multi-axis motion control, and user-friendly operation in a small footprint, making it perfect for small factories, print shops, and personalized customization businesses.

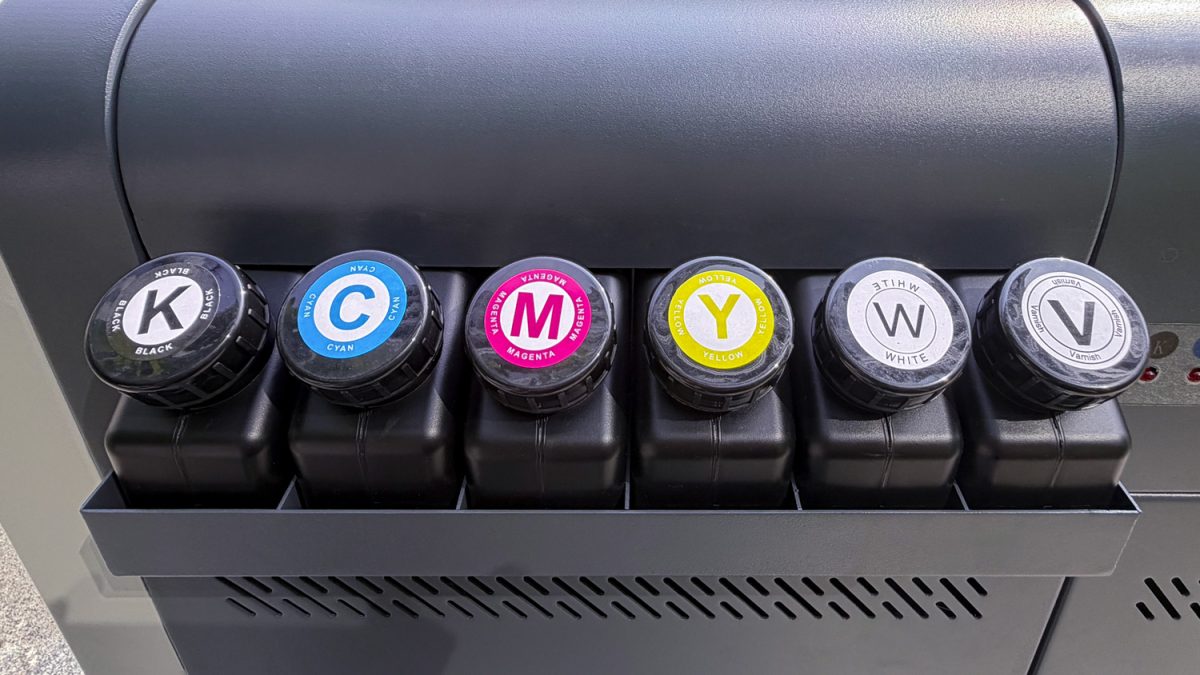

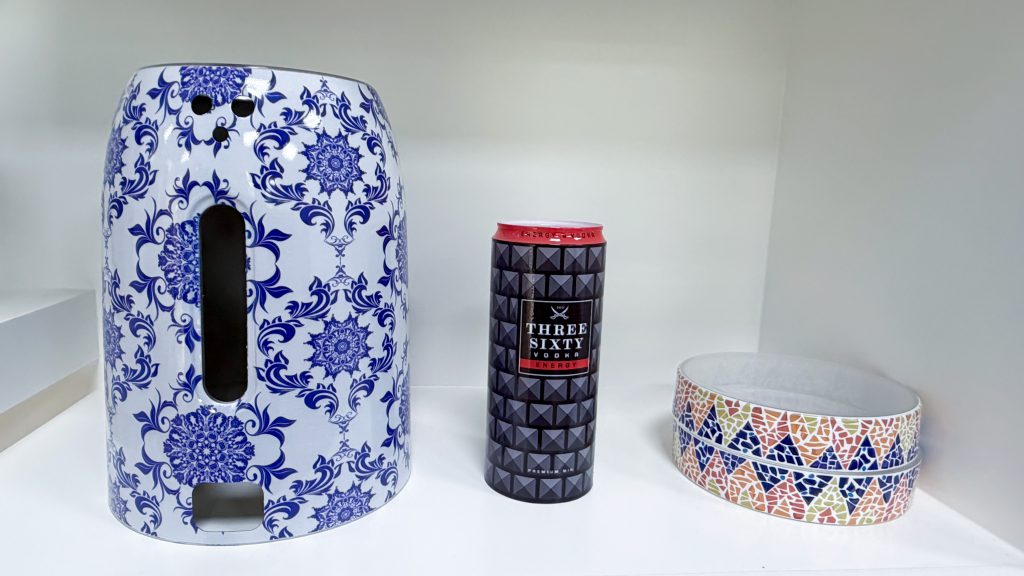

This printer supports full-color CMYK+W+V printing, allowing you to achieve vibrant colors, white ink base, and glossy varnish effects on different material backgrounds. It works on a wide range of cylindrical objects, including tumblers, stainless steel bottles, aluminum cans, glass cups, plastic containers, and tapered products like conical cups.

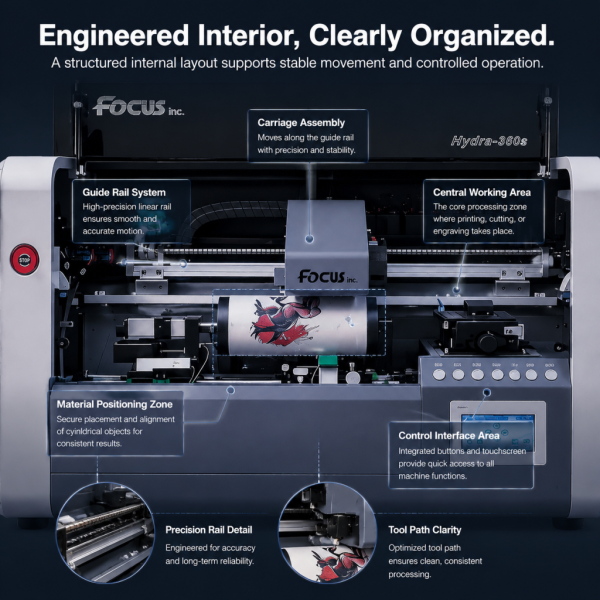

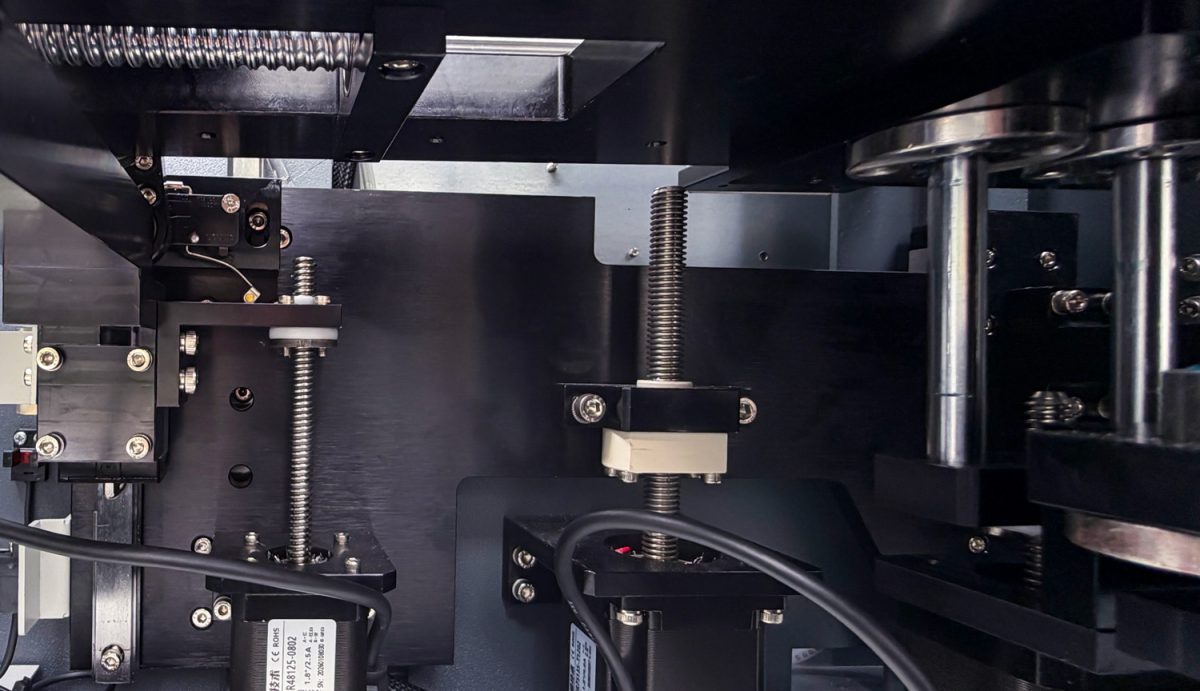

Built with industrial-grade components, the HYDRA-360S ensures stable, long-term operation. It features automatic material detection, adjustable print angles, and precise motion control, so you can produce consistent, high-quality prints with sharp details and smooth gradients.
Printing videos for different media

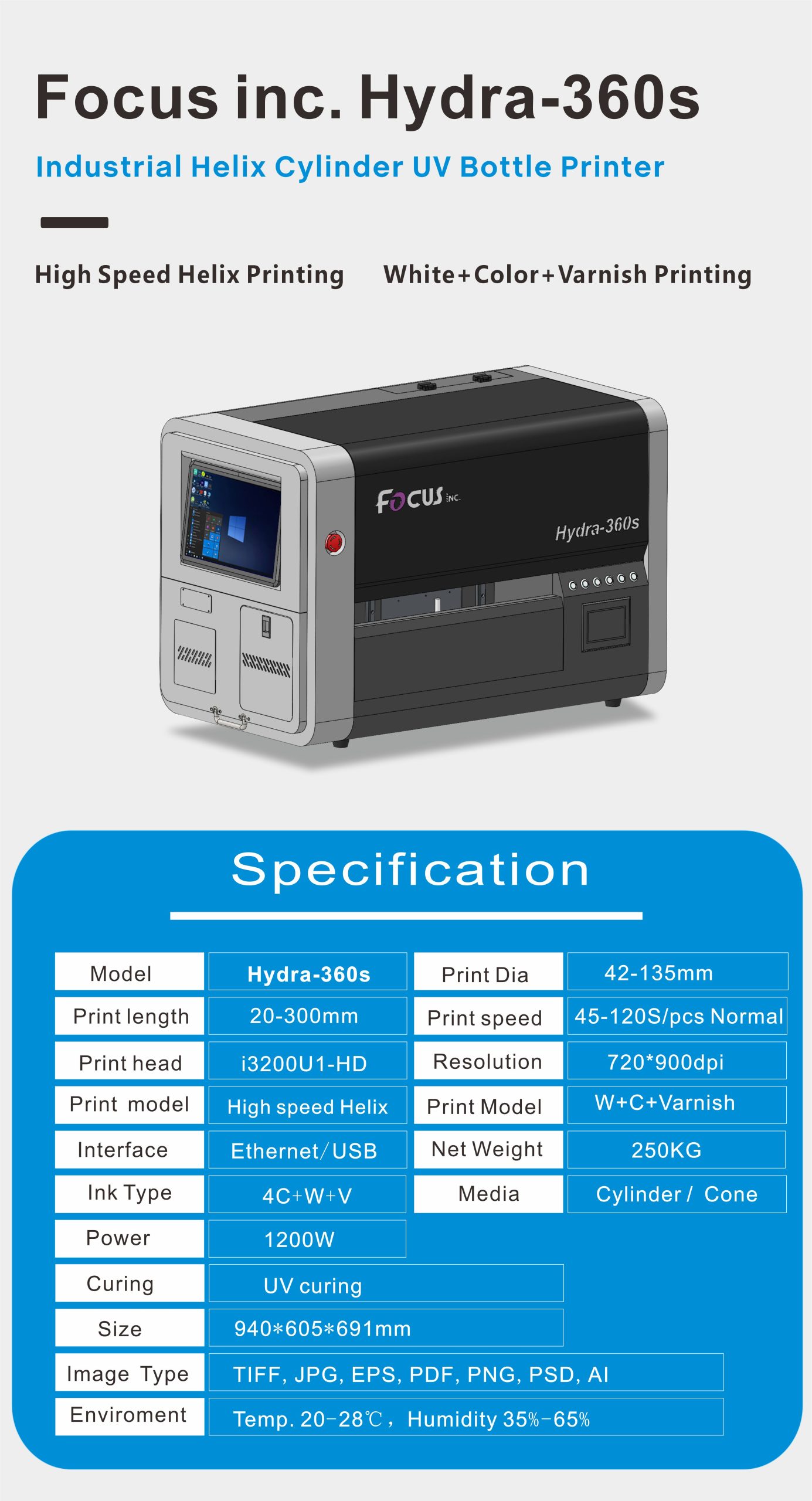

| Focus Inc. Hydra-360s Desktop UV Helix DTS Cylinder Printer Specification | ||
| Item | Specification | |
| Maximum effective printing area | Length: ≤240mm, Diameter: φ42mm~φ135mm , Taper Angle ≤13° | |

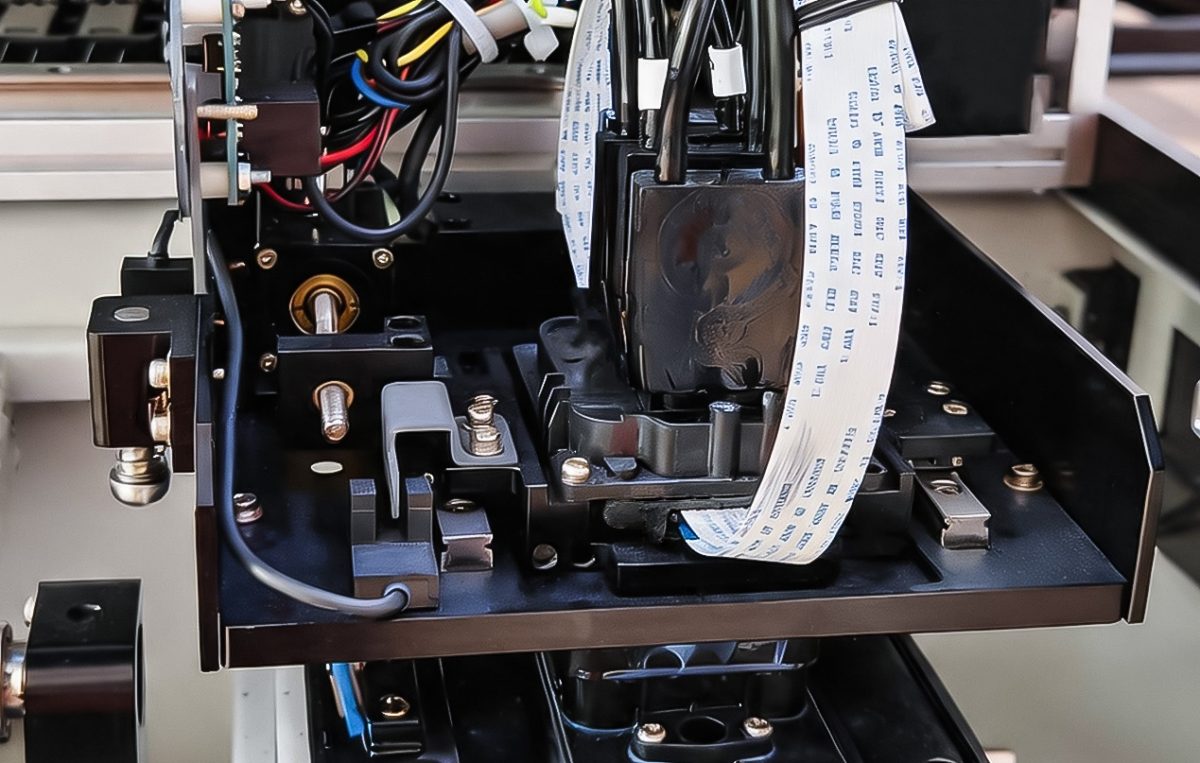

| Print head | EPSON I3200-U1HD | |
| Printing method | Micro Piezo Inkjet Print Technology | |
| Print model | 360 Degree Helix print | |
| Print resolution (dots per inch) | 720*900DPI / 720*1200DPI （According to different print model) | |

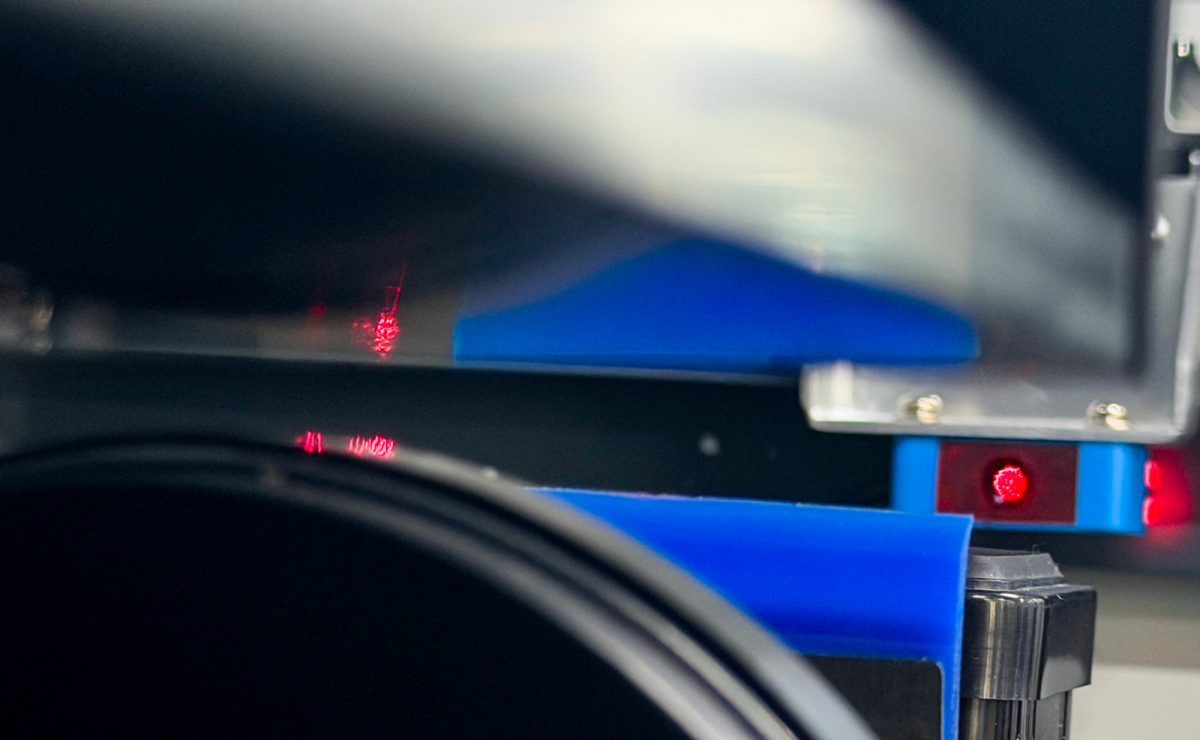

| Print Head protection technology | Head anti-scratch sensor+Laser detect sensor+Keep wet system | |
| Print speed | 40~120pcs/Hour (According to different print model and image size) | |
| RIP software | FocusRIP & Others Optional | |
| Accepted image data | Tiff, Jpeg, Pdf... | |
| Media Shape | Cylinder / Taper / Tumbler | |
| Media Type | Bottle, Can, Vase, Bowel etc. made from Glass, Ceramic, Metal, Carton, Pastic etc. | |
| Media size | Media length | ≤240mm |
| Media diameter | φ42mm~φ135mm , Taper Angle ≤13° | |
| Control interface | Electronic | Touch screen control electronic up down motion |
| Ink | Type | UV curing ink / Aqueous ink |
| Color | Black, Cyan, Magenta, Yellow + Spot color White + Glossy Varish Depend upon needs | |
| Ink tank capacity | 500ml per each color with ink level detect | |

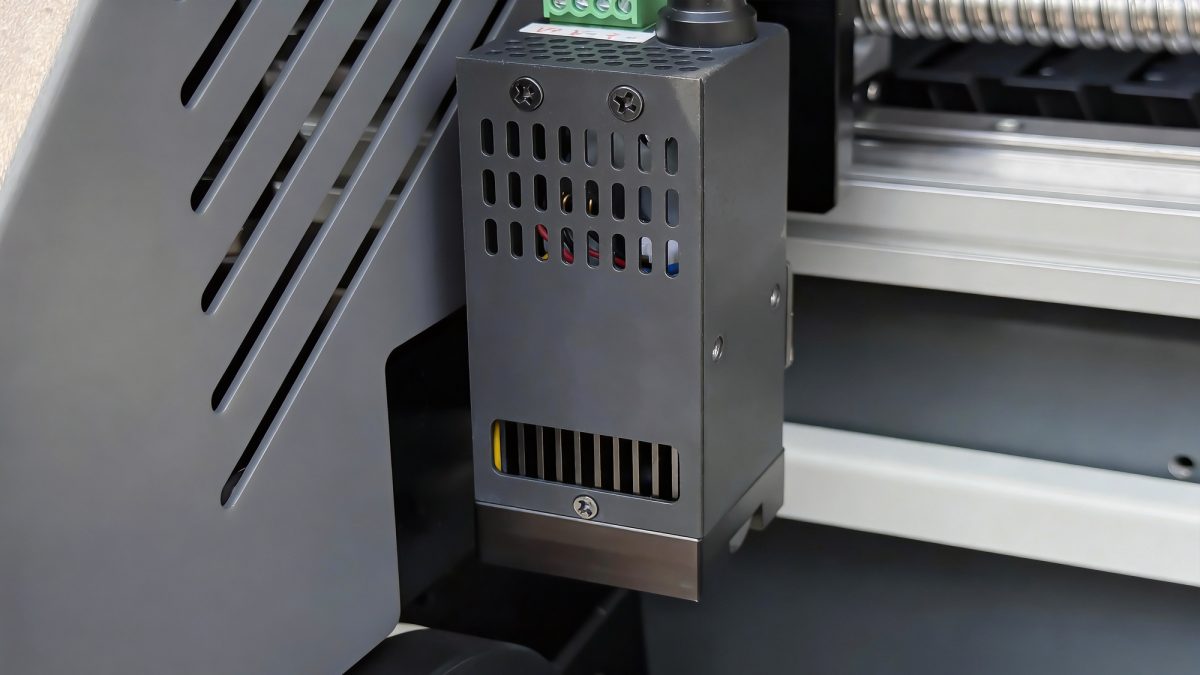

| UV curing system | Curing technology | LED UV Curing, 405nm, 0~480W Adjustable |
| Cooling technology | Water circulation cooling | |

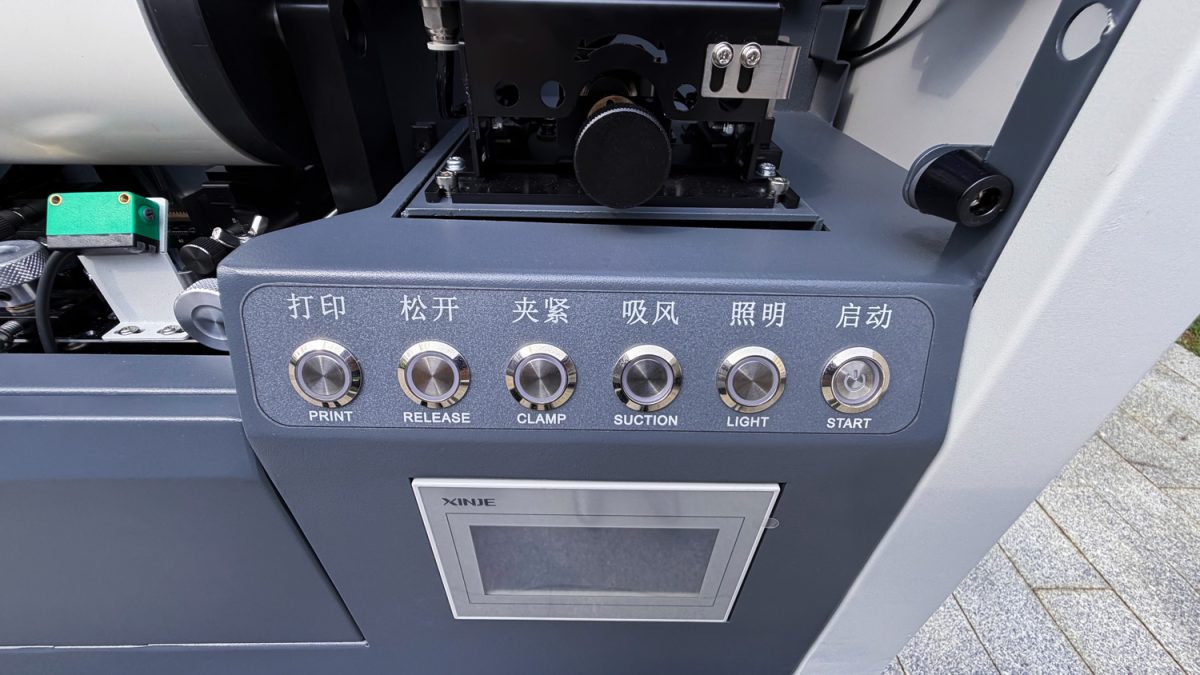

| Printer interface | Touch screen go with PLC | |
| Control interface | PC / 13.3" Touchpad (Optional) | |
| Dimension | Printer size | 39.0" (L) × 23.8" (W) × 30.0" (H) in. (990 × 605 × 685mm) |
| Packing size | 52.4" (L) × 46.5" (W) × 40.0" (H) in. (1,330× 1,180× 1,015 mm) | |
| Weight | Net weight | 319 lb (145kg) |
| Gross weight | 556 lb (253 kg) | |
| Environment | Temperature | 51 to 86 °F (18 to 30 °C) |
| Humidity | 45% ~ 75% | |
| Included items | Print cable, cleaning kit, USB Flash of technical data | |
| Connectivity | Ethernet cable | |
| Printer Power | 850W | |
| Power supply requirements | 16A Single-phase 220~240VAC, 50HZ/60HZ | |
| Acoustic noise level | 55 dB (A) or less | |
| Software System Requirements | ||
| Print control | System | Windows® 7/10/11 (64 bit) Recommend |
| (Bundled) | CPU | Intel® Core™ i5, 2.7 GHz or more |
| RAM | 16 GB or more | |
| Video card and monitor | A resolution of 1,152 × 854 with 16 bit color or higher | |
| HDD | Install space 1 GB or more | |
| Working space 300 GB | ||
The HYDRA-360S is widely used in custom printing for:

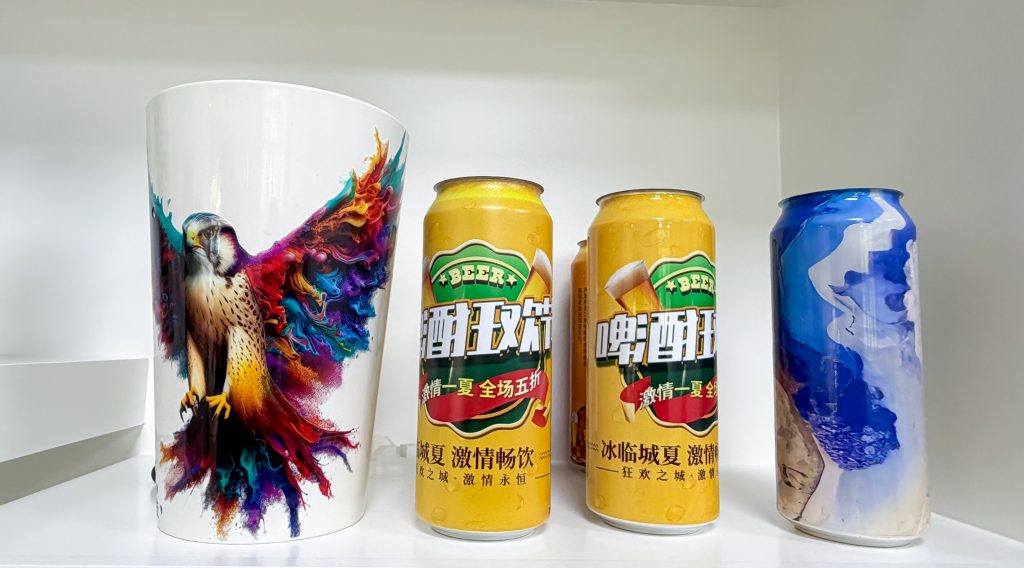

It produces durable, scratch-resistant prints with vibrant colors, clear logos, and fine text, meeting both commercial and personalized printing standards.
Advantage 1
Advantage 2
Advantage 3
Advantage 4
Advantage 5
Advantage 6
Advantage 7
Advantage 8
Advantage 9
Customer feedback1
Customer feedback2
Customer feedback3
Customer feedback4
Customer feedback5
Customer feedback6

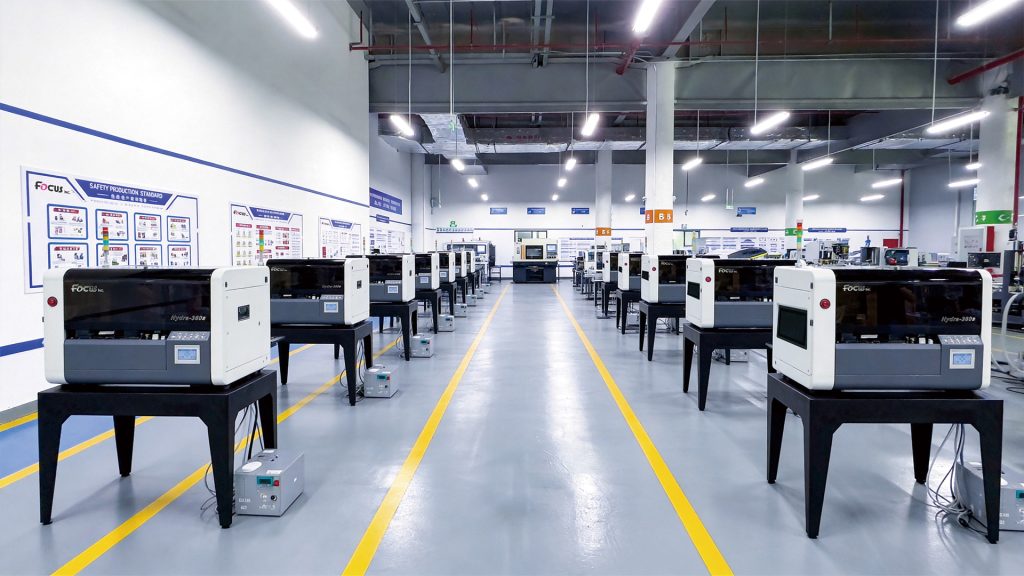

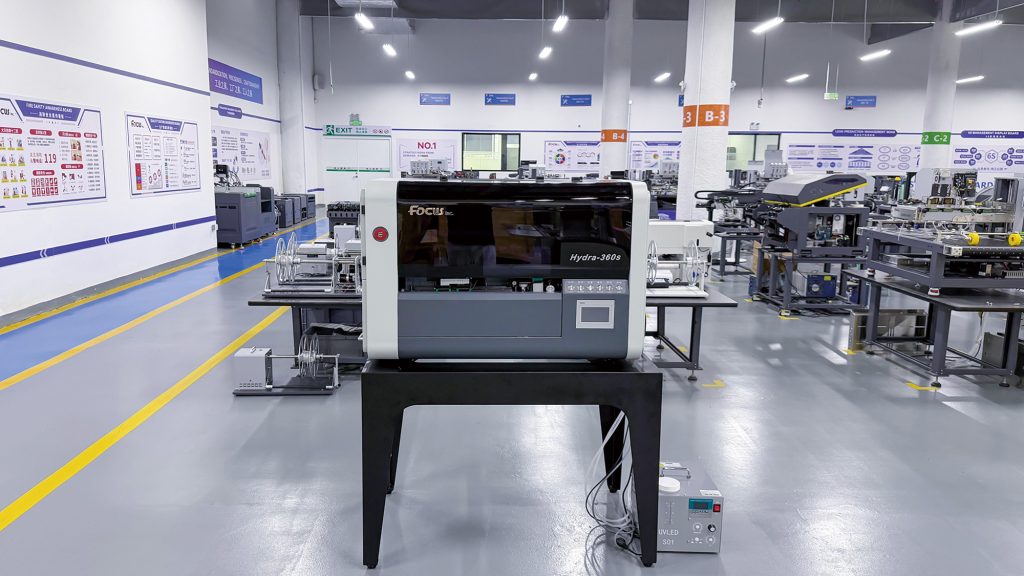

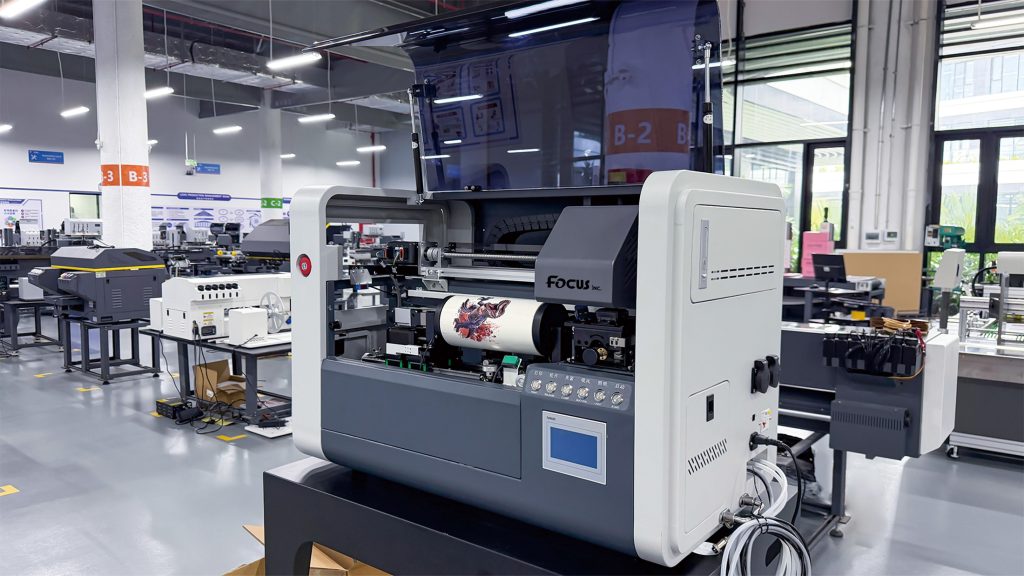

Production Line
A desktop cylinder printer like the HYDRA-360S is used for custom printing on cylindrical and tapered products such as tumblers, bottles, cans, and cups. It is ideal for personalized gifts, promotional items, and small-batch production.

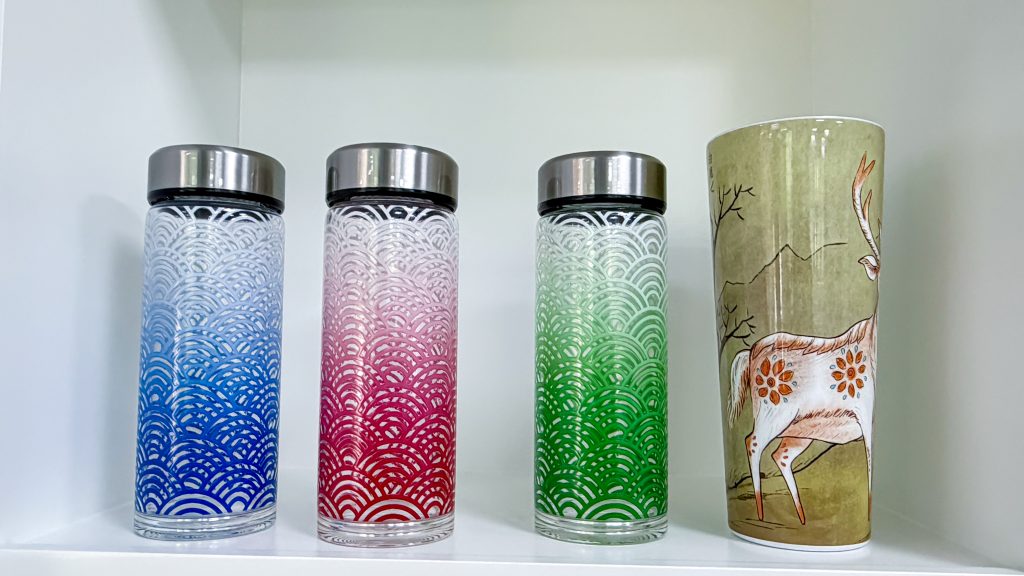

Yes. With the CMYK+W+V color system, the printer uses white ink as a base layer, allowing clear, vibrant printing on dark, metallic, or transparent materials.
The printer includes a white ink circulation and stirring system to prevent sedimentation. Combined with the ink maintenance station, it keeps nozzles clean and reduces clogging risks.

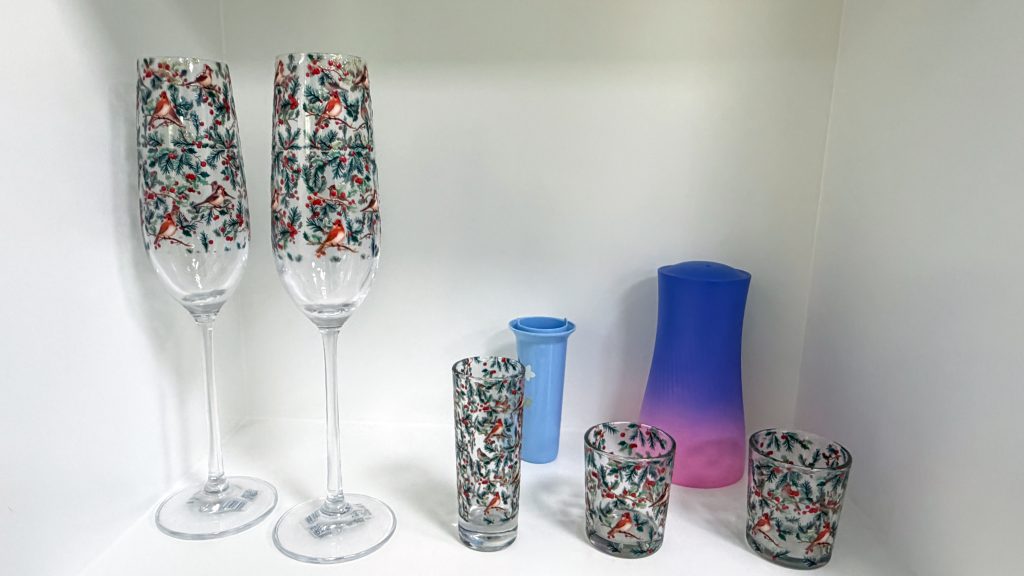

Yes. The adjustable fixture and adaptive printing technology support different tapers and angles, so you can print on conical cups and tapered products.
Yes. The white ink stacking technology allows for partial convex printing effects, creating a tactile, 3D texture on the surface.

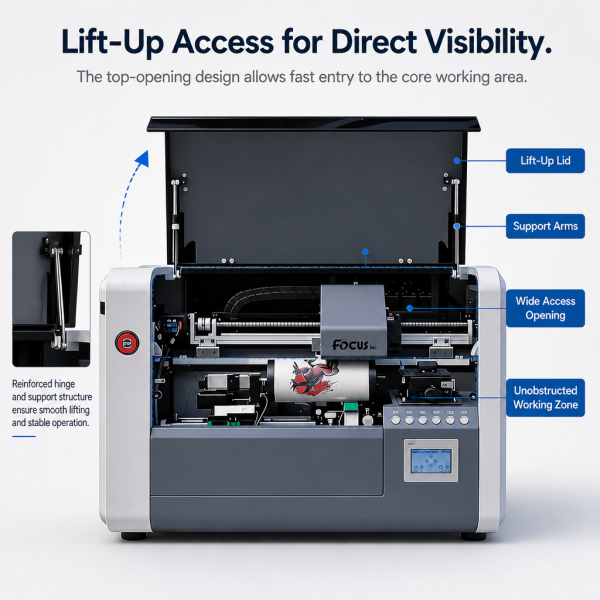

Regular maintenance includes ink system checks, nozzle cleaning, and curing light inspection. The design with an acrylic dust cover helps protect the printing area from dust and debris.

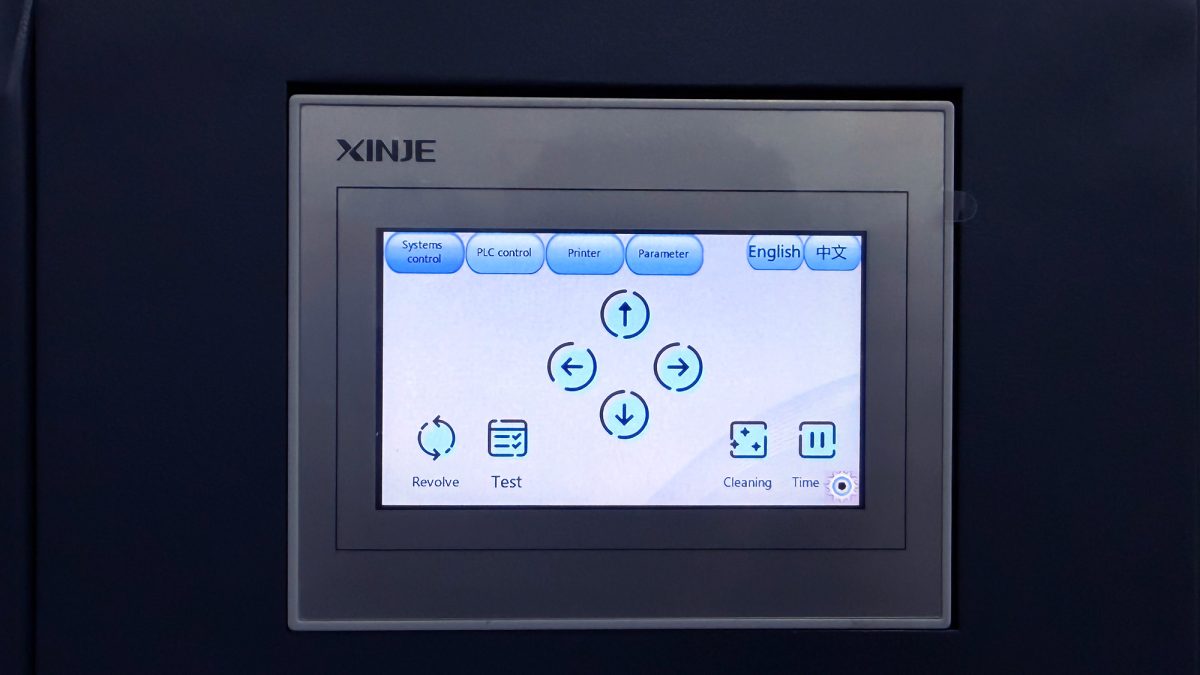

Yes. The touch screen control panel provides intuitive operation, and the optional industrial touch computer makes print job management simple. Training and support are available to help new users get started quickly.
