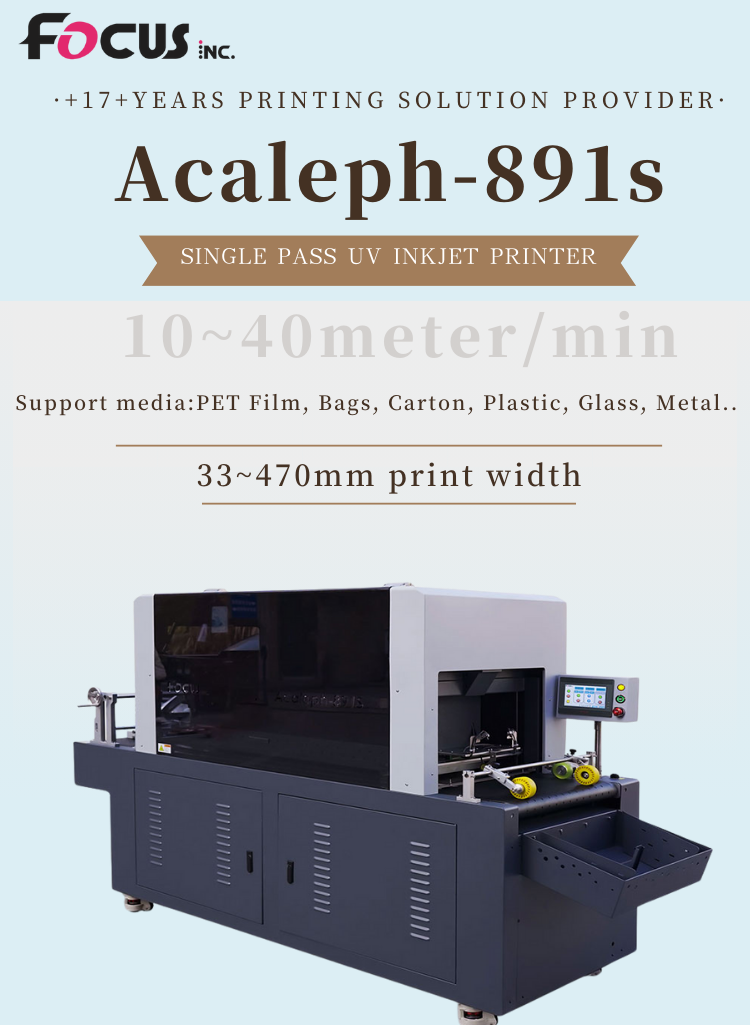

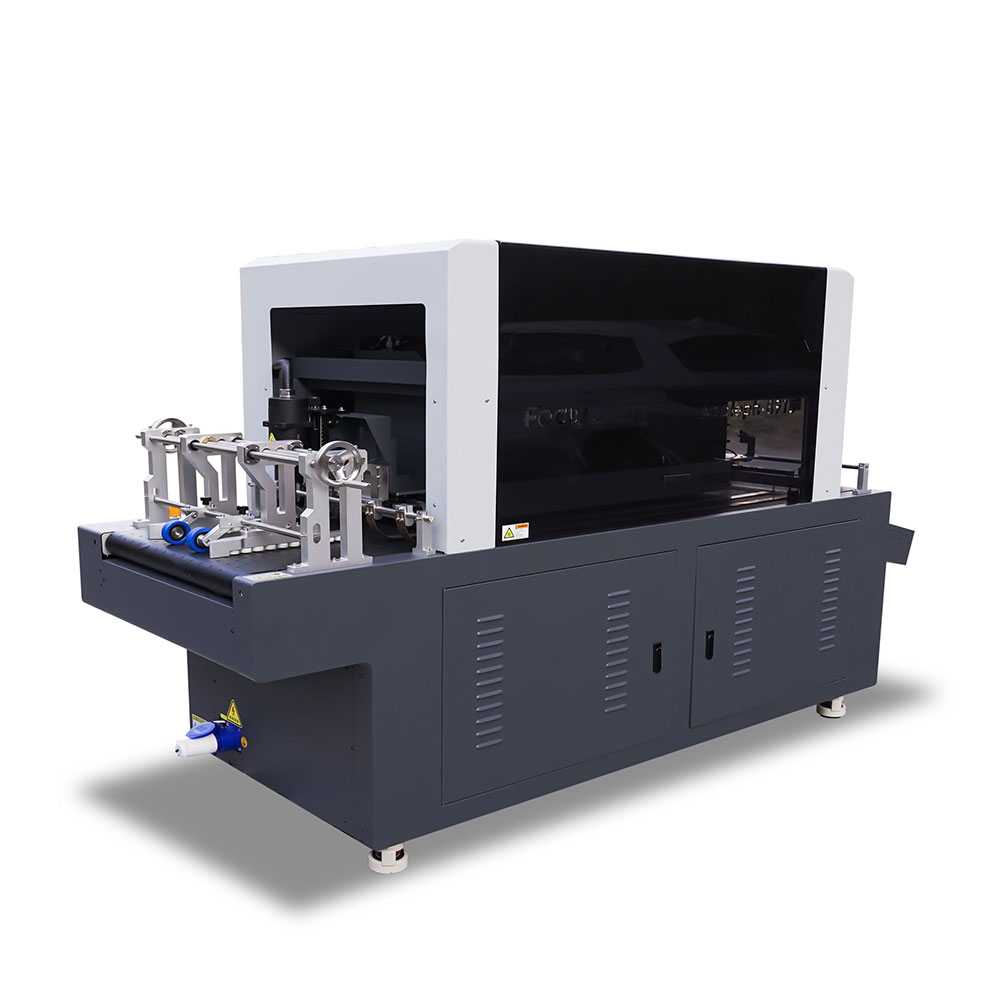

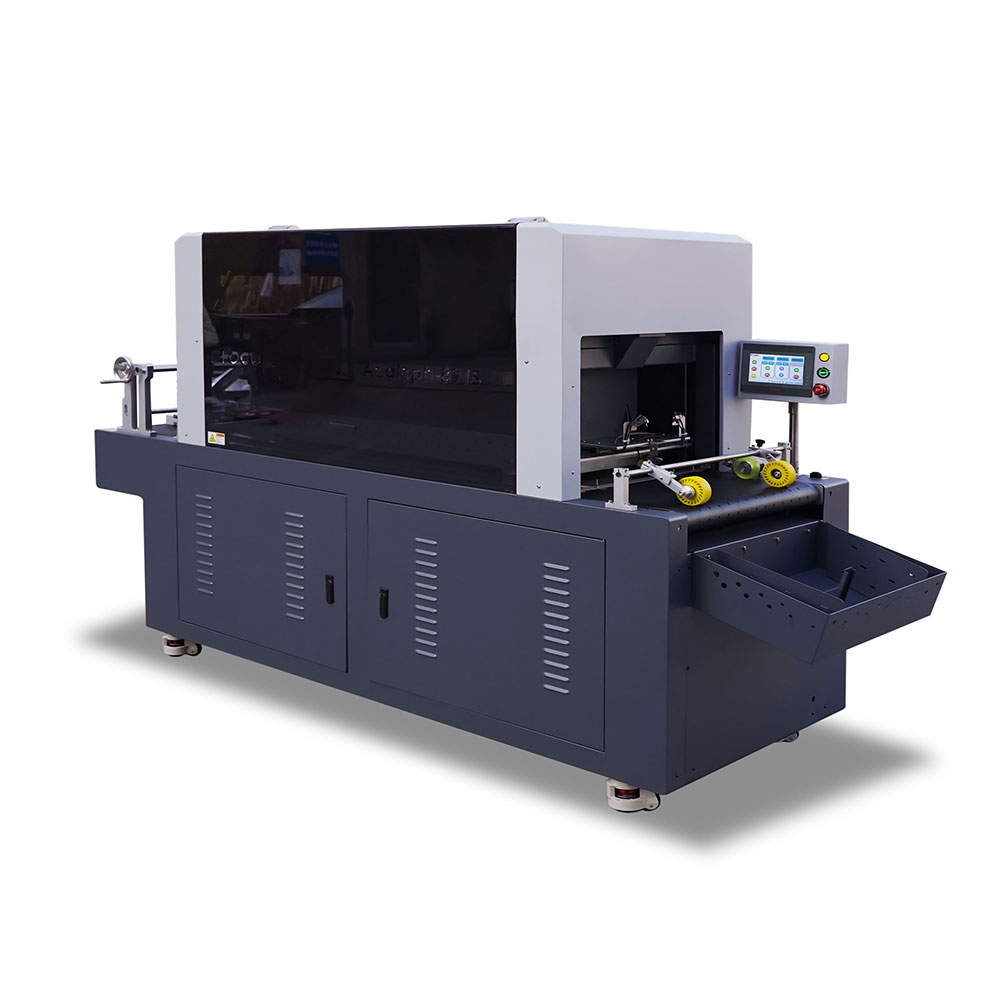

FocusInc Acaleph-891S UV Single Pass Printer

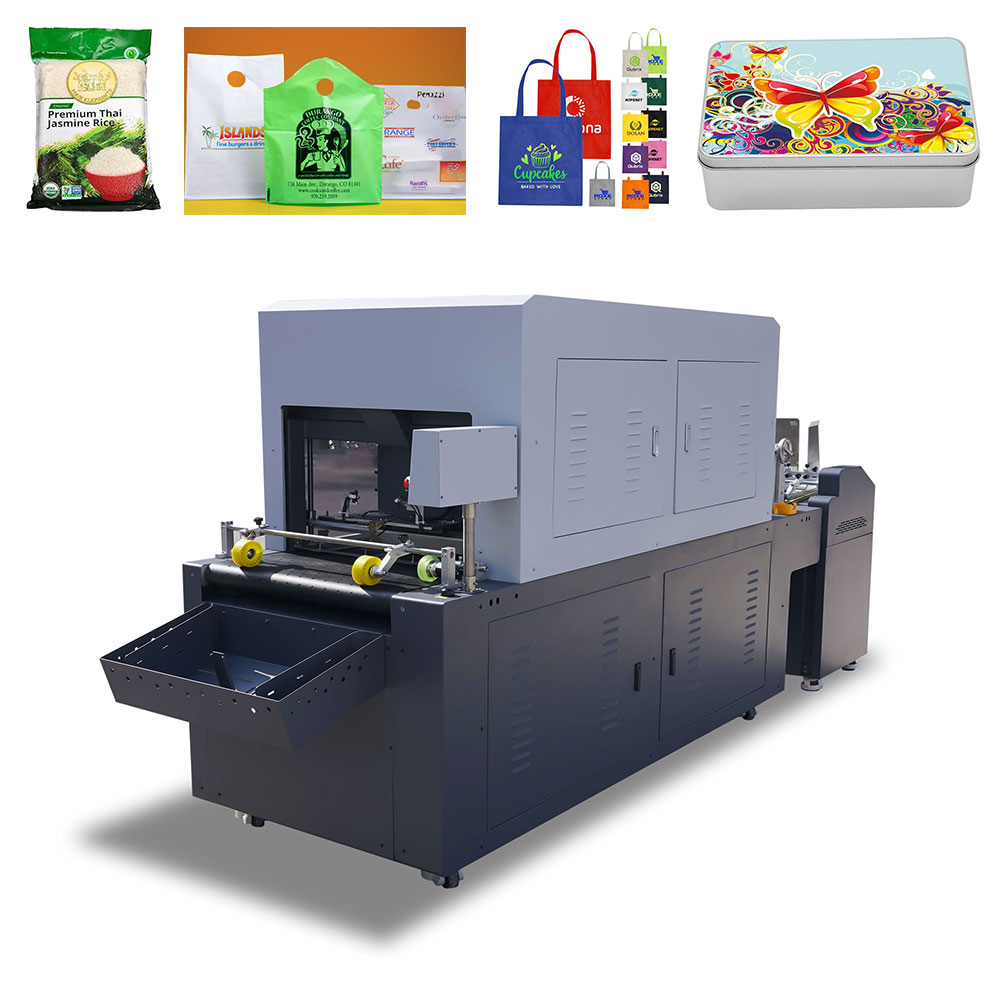

FocusInc UV Single Pass Printer Acaleph-891s is a printer for Metal,Glass,Ceramic, Plastic,Acrylic, Non-woven bag, plastic bag, Corrugated paper, Pizza boxs etc.

Model:Acaleph-891s
Maximum print width: 33mm~470mm
Print head :Seiko RC1536 / Epson I3200 U1 / RICOH G5 /G6
Printing color ：CMYK+W+V
The printing speed:10~40meter/min
Ink:UV curing ink / Aqueous ink
RIP software: Control &Rip all in one

Leave Message Chat Online Product Video

Product List

Get Inquiry

Meet the Acaleph-891S UV single pass printer- the future of packaging production. As a leading UV single pass printer, it's engineered to redefine speed and sustainability for corrugated box makers, flexible packaging producers, and beyoud.

This UV single pass technology prints in one pass, eliminating slow setups and slashing turnaroudn times. Whether you're working with recycled corrugated, biodegradable films, or thick paper, the Acaleph-891S delivers vivid, 1200 dpi prints with instant-drying UV inks-no smudges, no delays. For manufacturers chasing 2025's demand for fast, green and customization packaging, the Acaleph-891S series uv single pass printer with demand print head types will be the solution.

Product description

FocusInc UV Single Pass Printer Acaleph-891s is a printer for Metal,Glass,Ceramic, Plastic,Acrylic, Non-woven bag, plastic bag, Corrugated paper, Pizza boxs etc. It is new star and trend in digital&inkjet printing industry.

Printing videos for different media

Printing Sample

Since the successful research and development of Acaleph-891s UV Single One Pass Printer, below is printing media which can be printed by it：

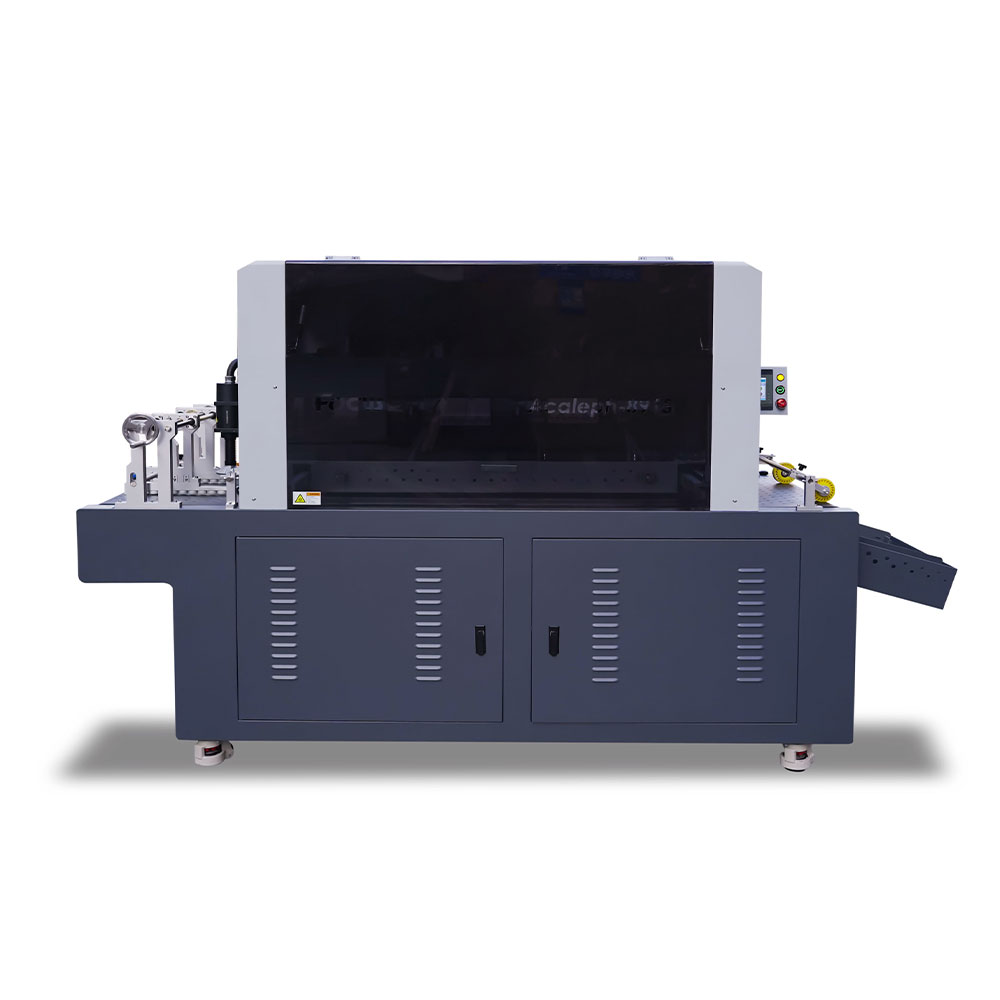

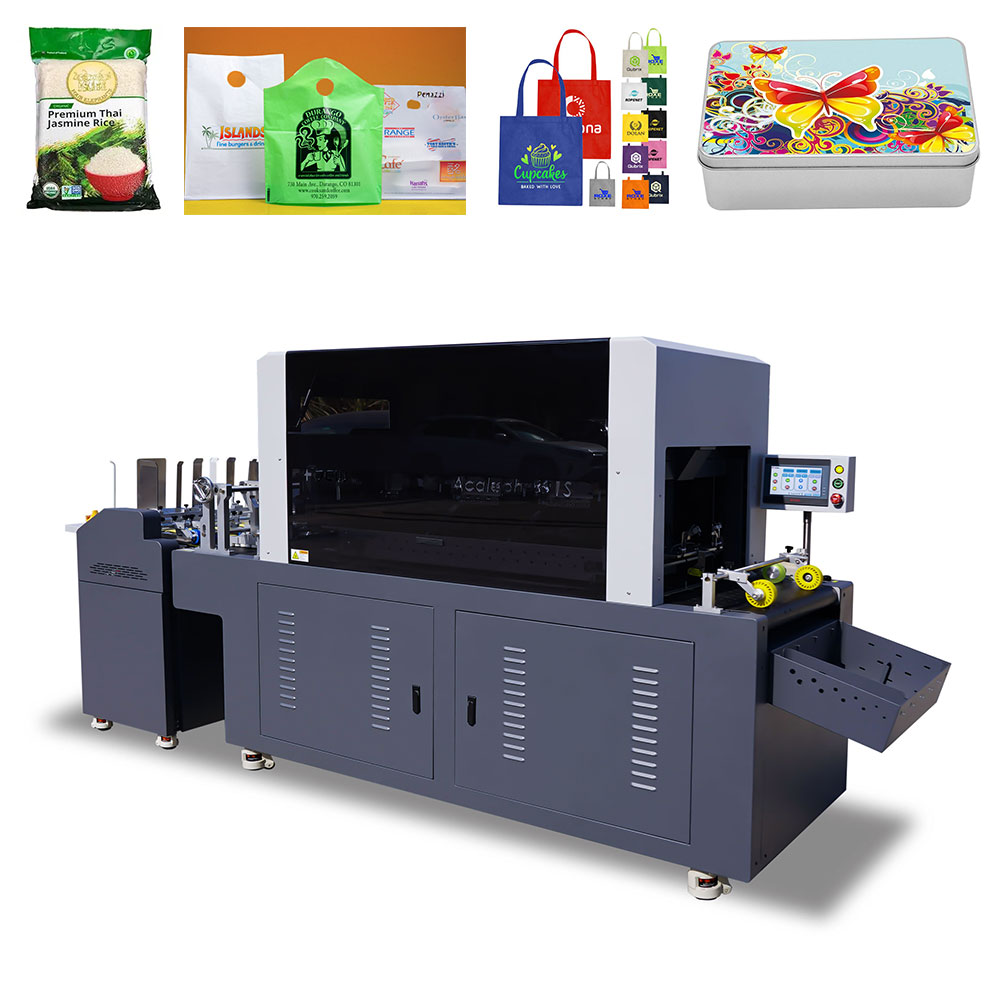

Product Image

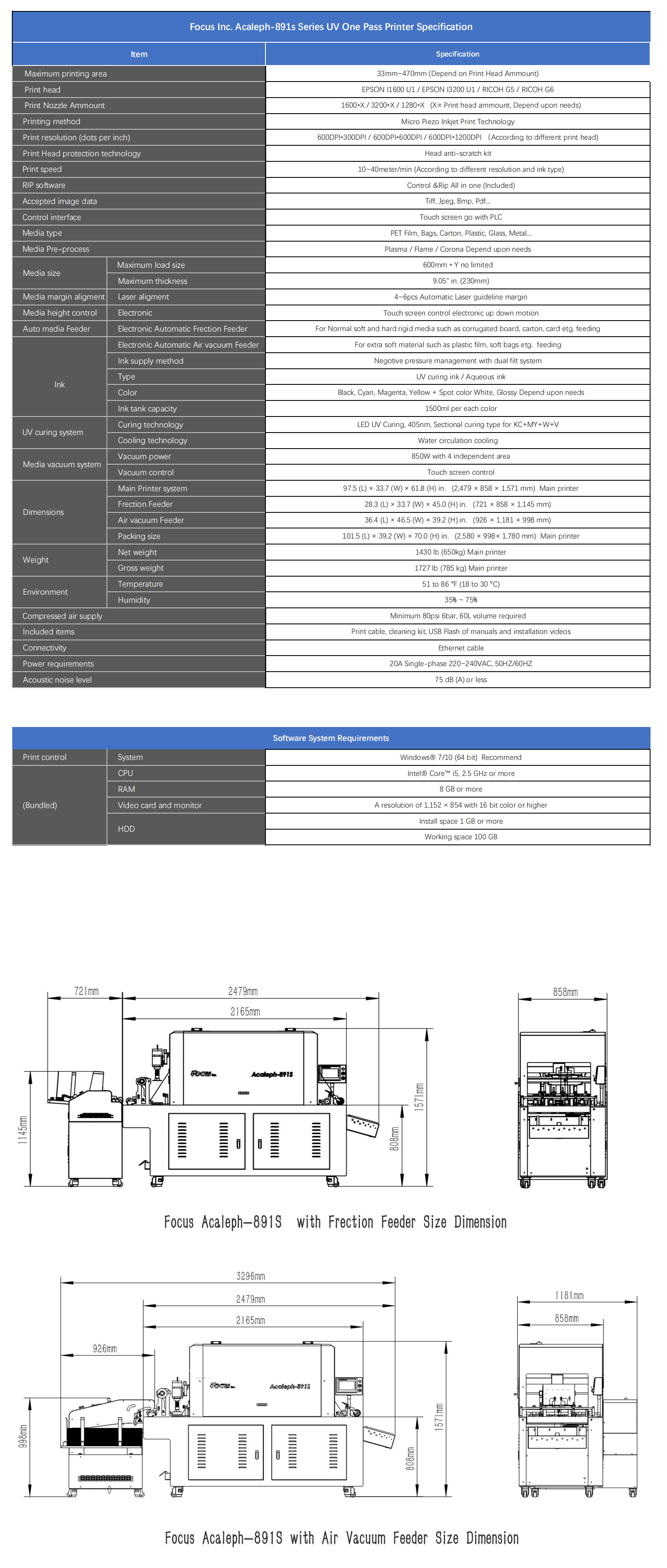

Technical Detail

Advantage1

33~470mm large printing width design and compatible with different print heads such as EPS I3200 I1600 RIC G5

Advantage2

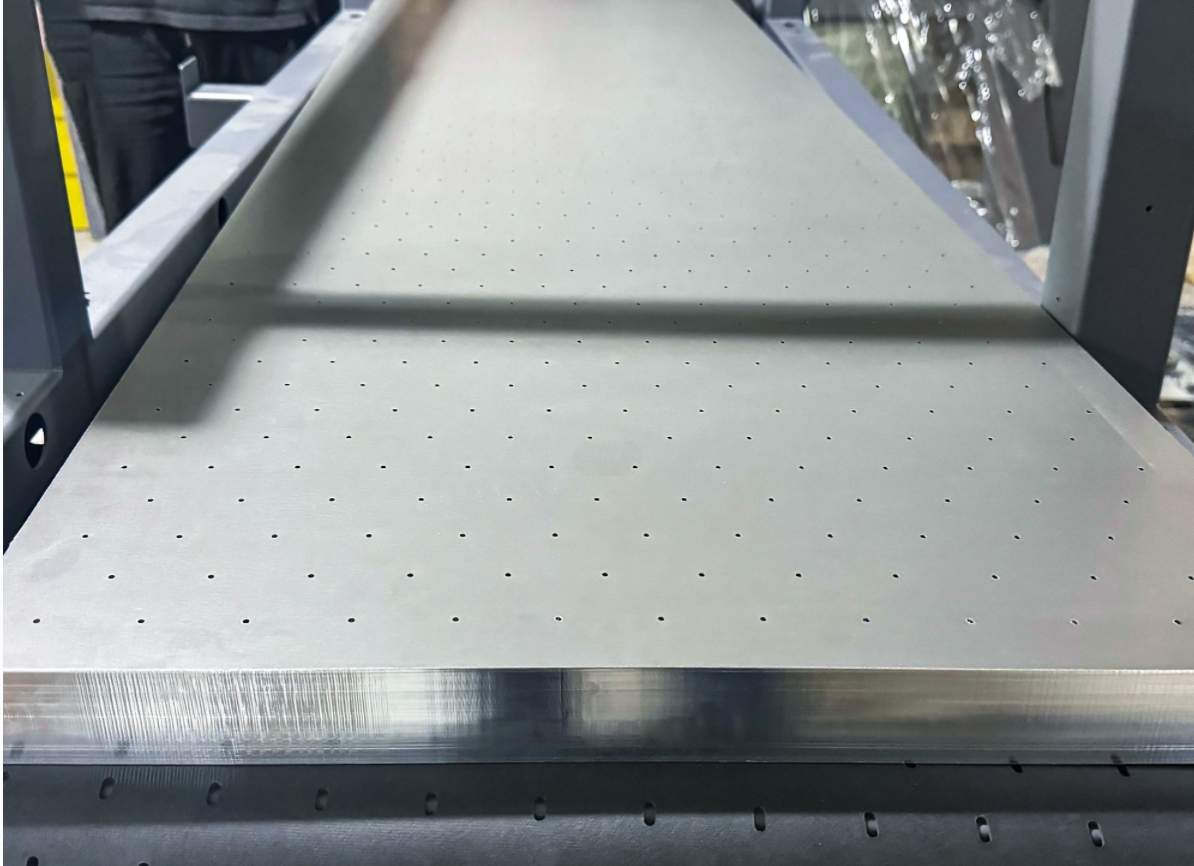

42mm ultra-thick vacuum partition adsorption platform for printing soft materials

Advantage3

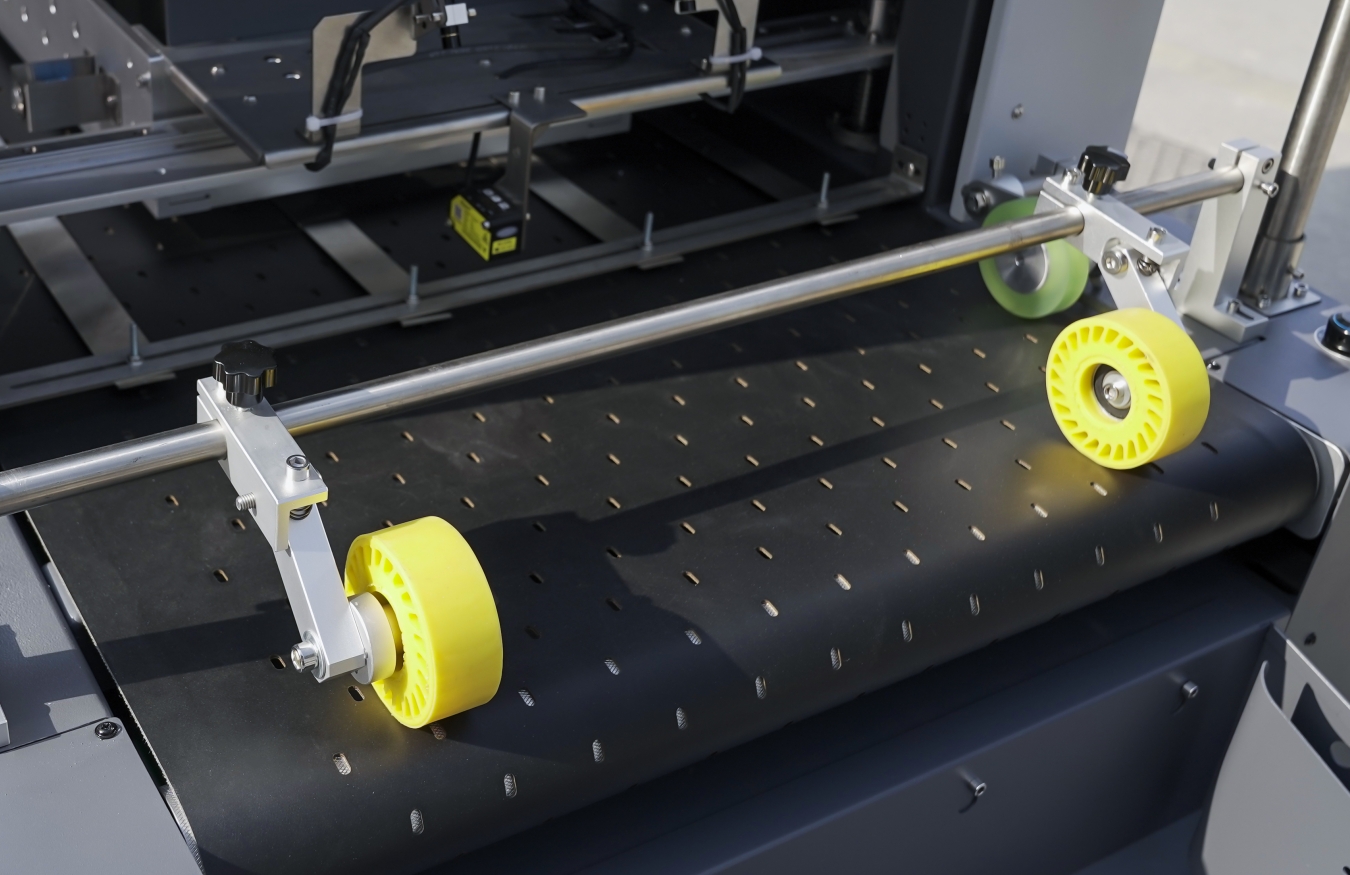

60CM ultra-wide printing guide belt enables printing of different wide-width materials

Advantage4

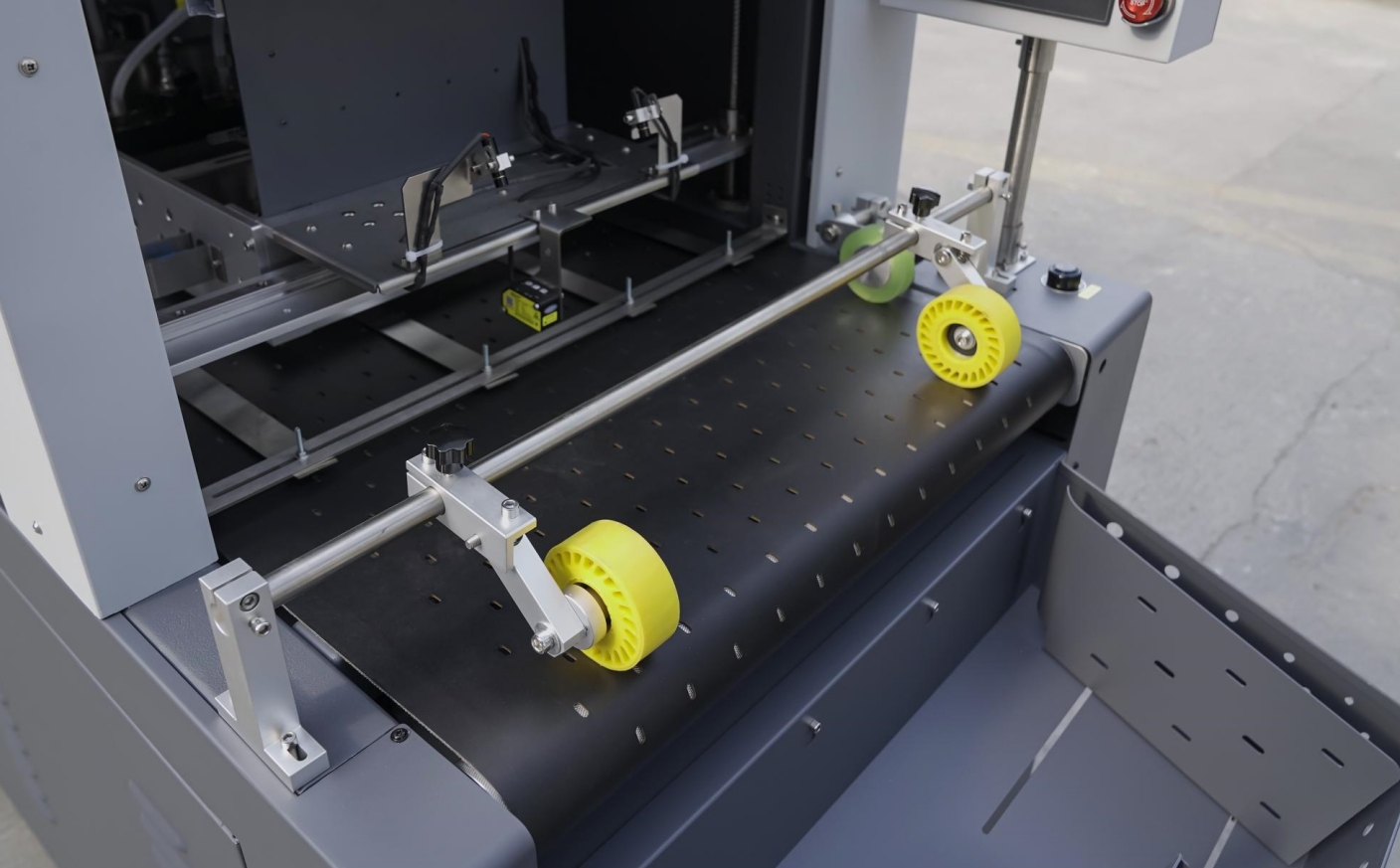

The 65-degree moderate hardness paper discharge sun wheel makes the discharge safer and more stable without indentation.

Advantage5

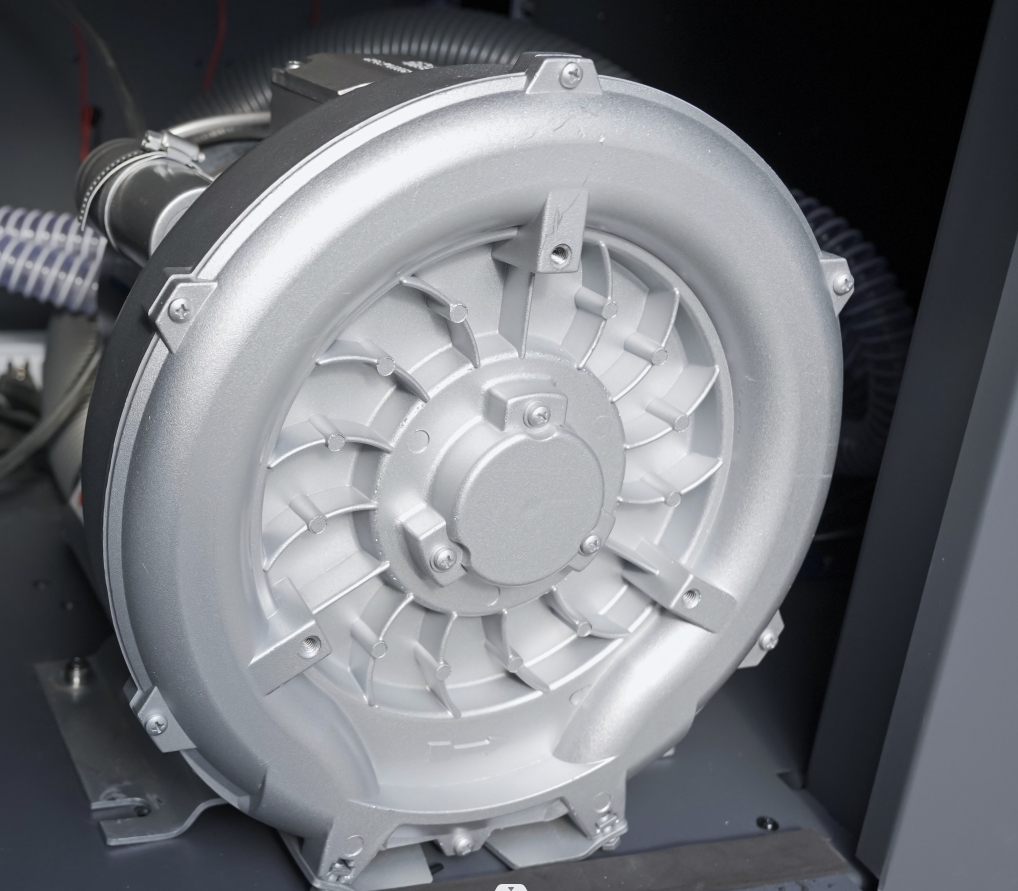

850W ultra-powerful vacuum adsorption fan ensures smooth adsorption of soft materials

Advantage6

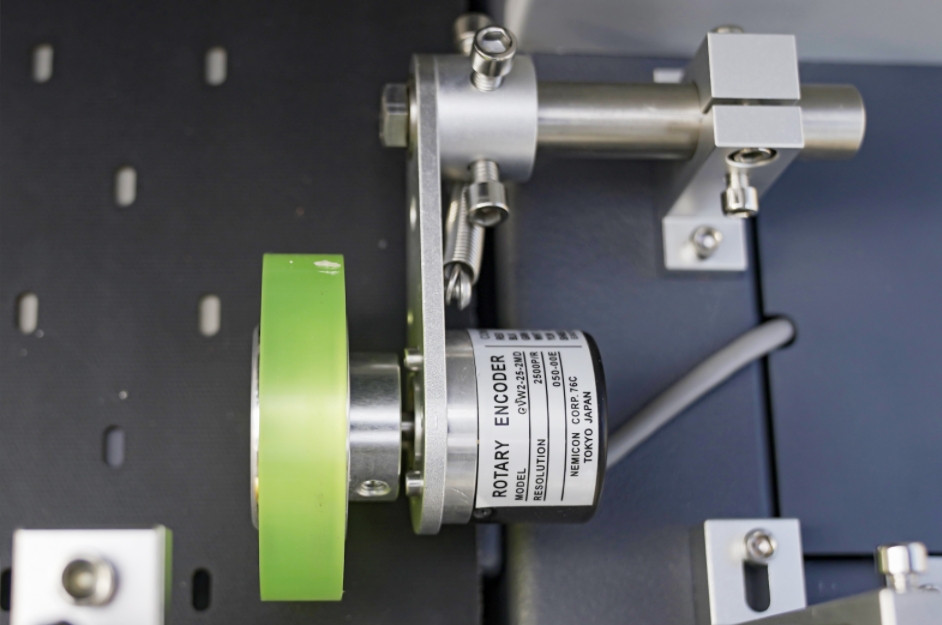

2500PIR high-precision meter wheel realizes high-precision operation and printing of Y-axis

Advantage7

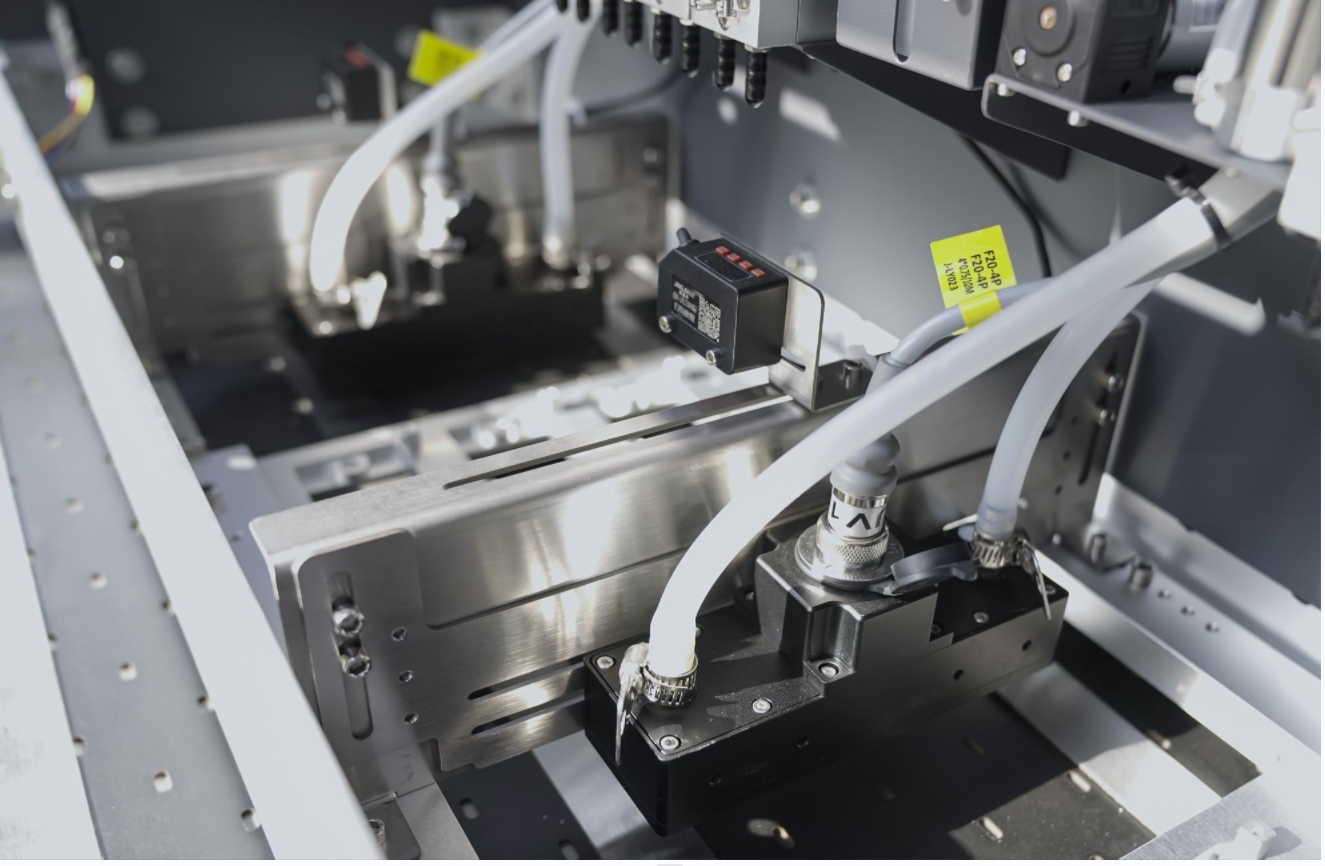

The UV lamp printing signal induction sensor can delay the turning on and off of the UV lamp to prevent the print head from being cured.

Advantage8

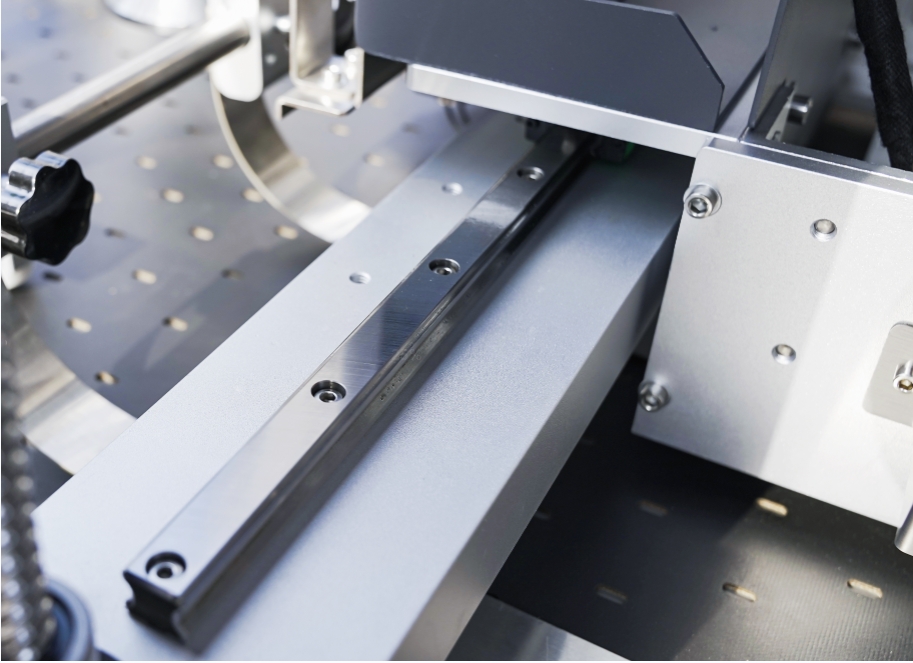

The X-axis print head can be adjusted left and right to achieve precise printing at different positions on the material.

Advantage9

Multiple array LED headlights ensure rapid curing of ink

Advantage10

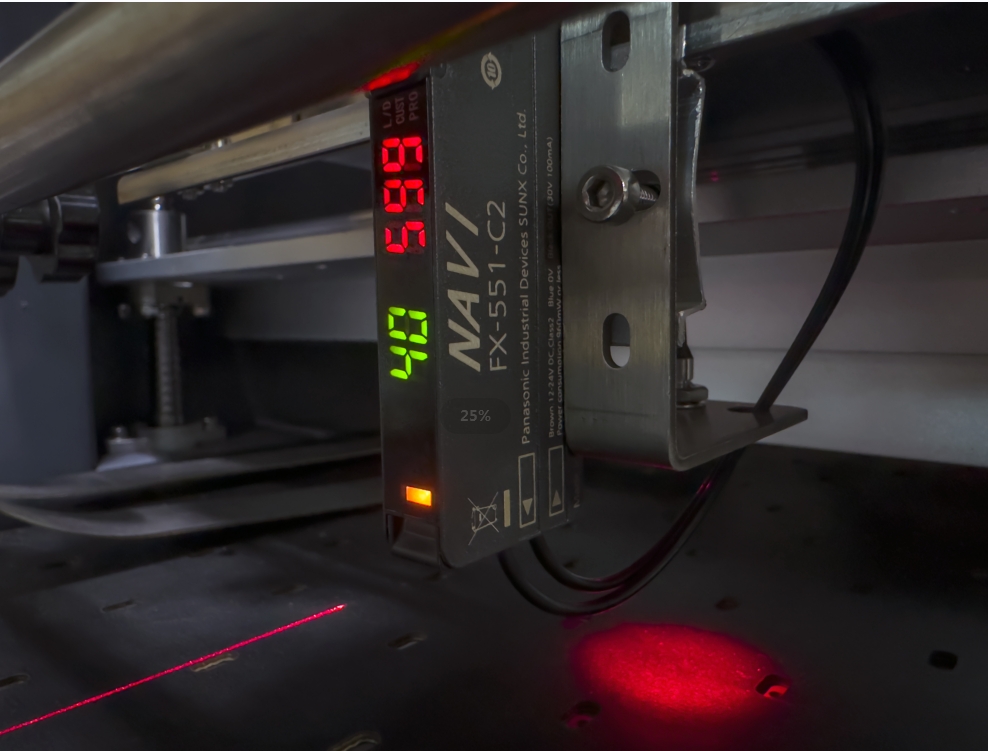

Highly sensitive paper feed sensor quickly detects printing materials

Advantage11

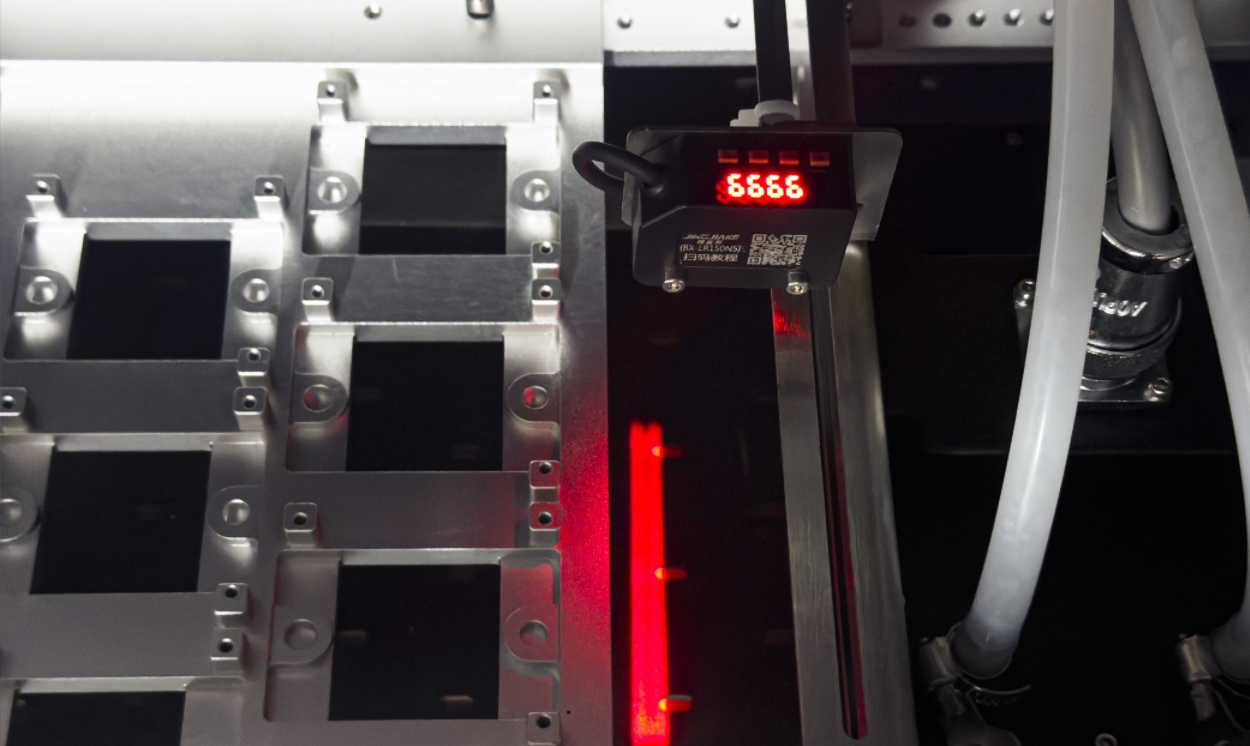

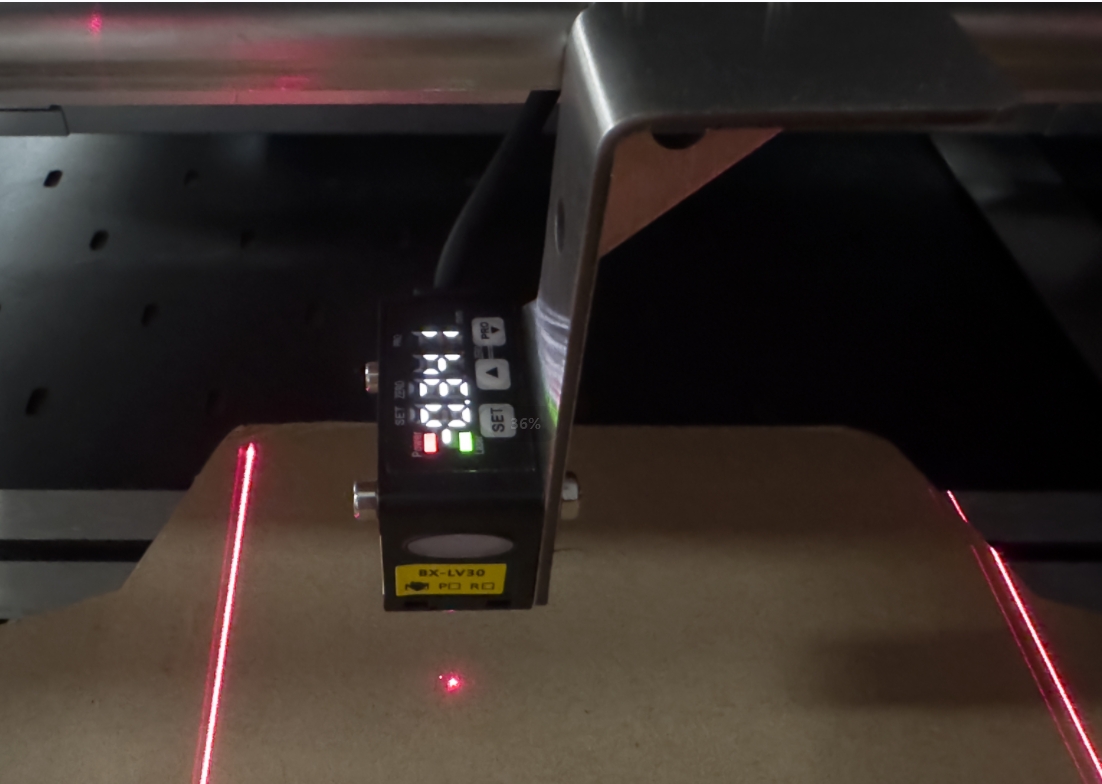

Laser sensor for automatically sensing printing material thickness

Advantage12

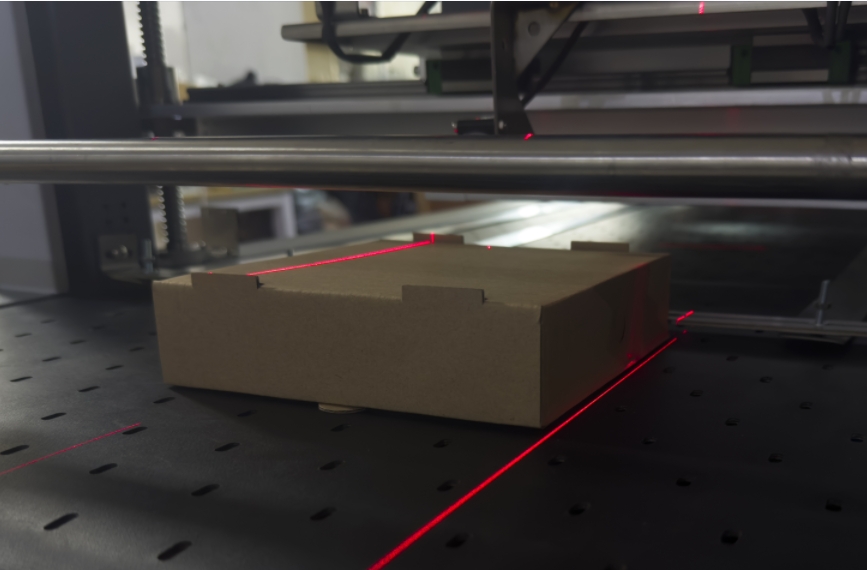

Laser wire greatly improves printing and discharging efficiency and accuracy

Advantage13

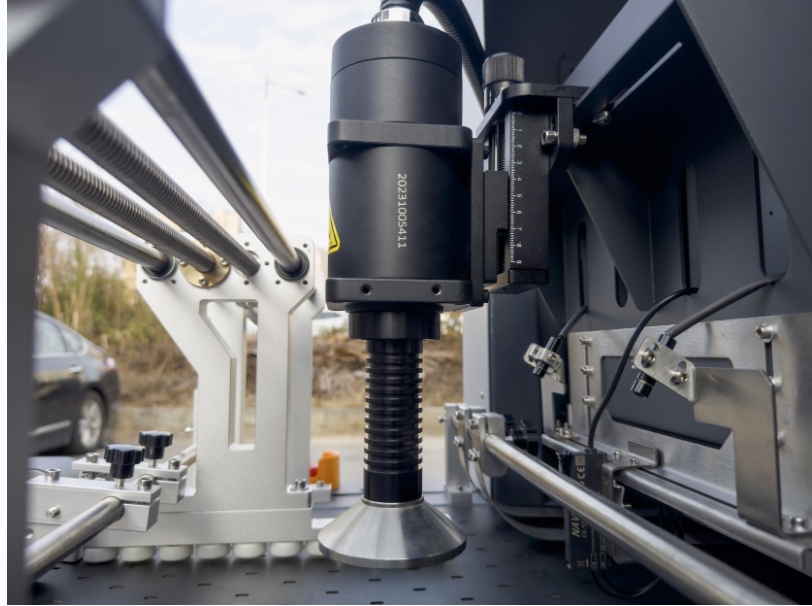

Installing a plasma processor can achieve UV printing on smooth material surfaces without fading.(Optional purcahse）

Advantage14

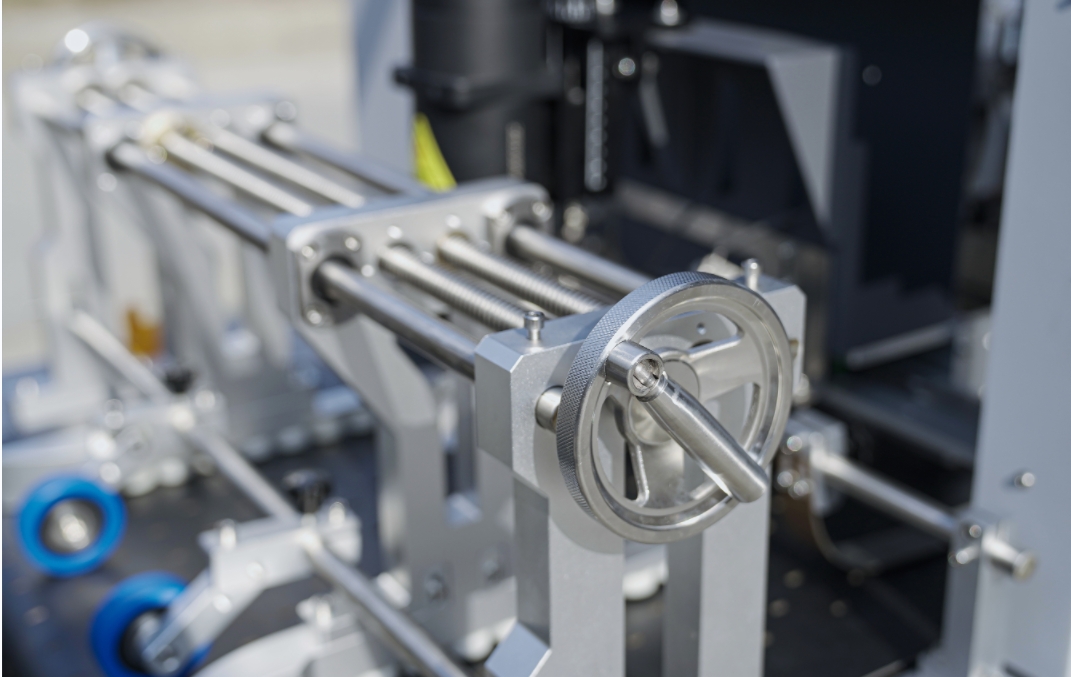

The width-adjustable automatic correction guide system enables precise feeding and printing of materials of different widths.

Advantage15

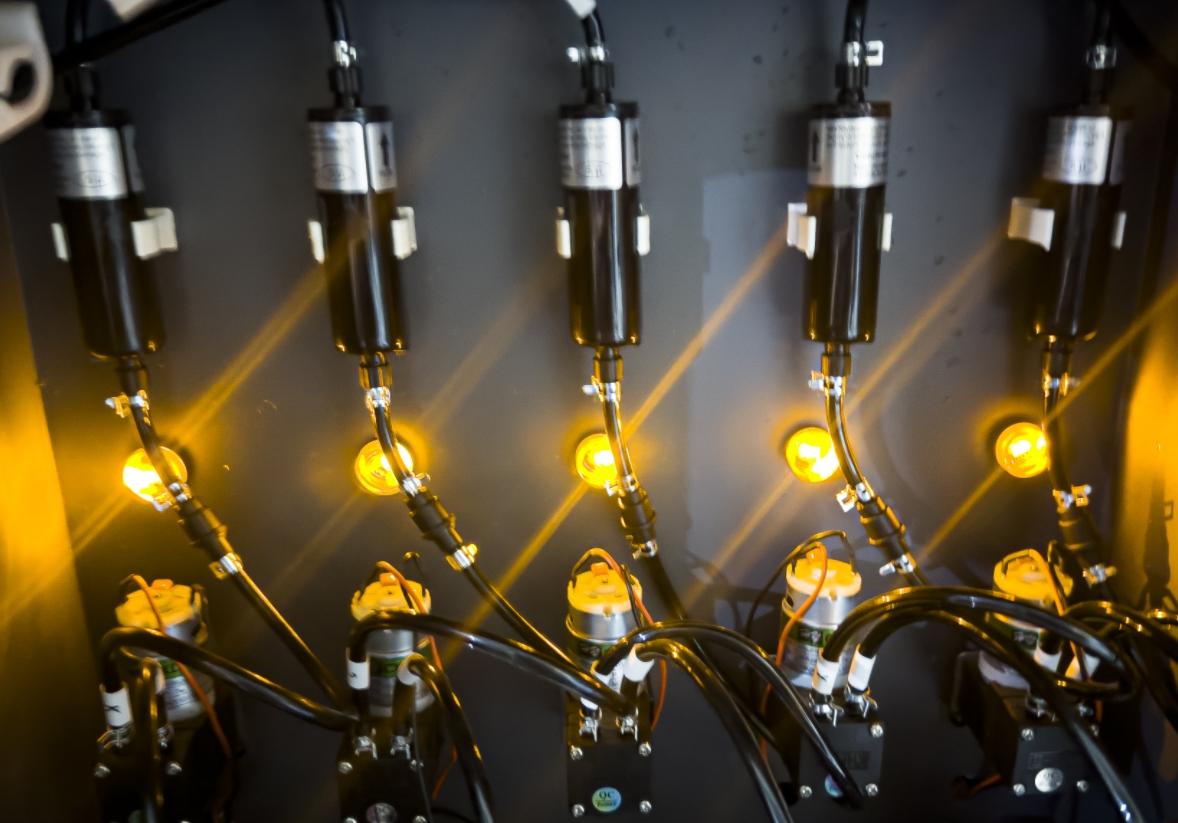

Automatic ink replenishment and automatic ink shortage alarm ensure timely supply of ink for printing

Customer feedback

Customer feedback1

Customer feedback2

Customer feedback3

Customer feedback4

Customer feedback5

Customer feedback6

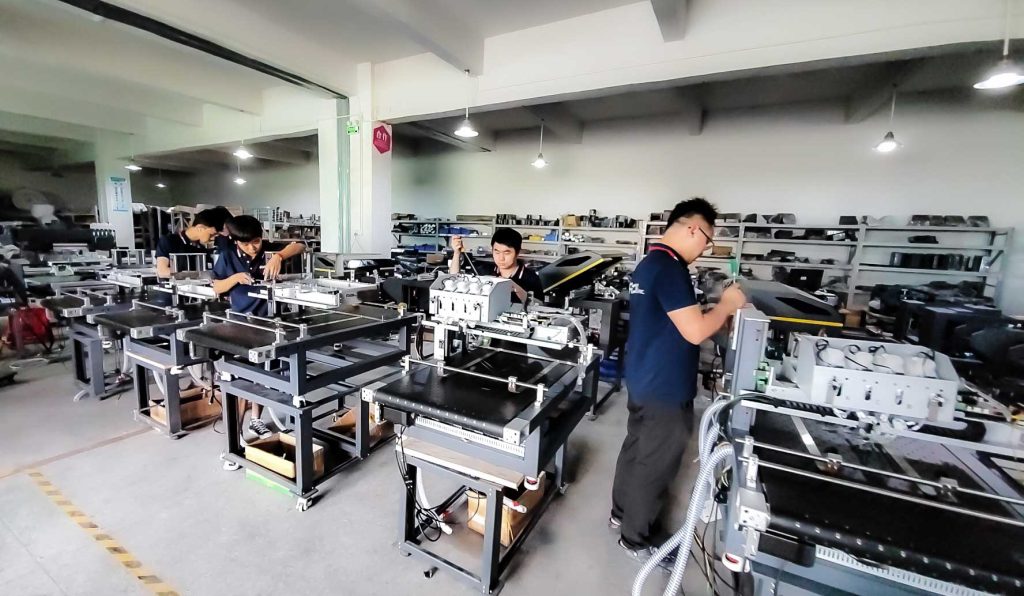

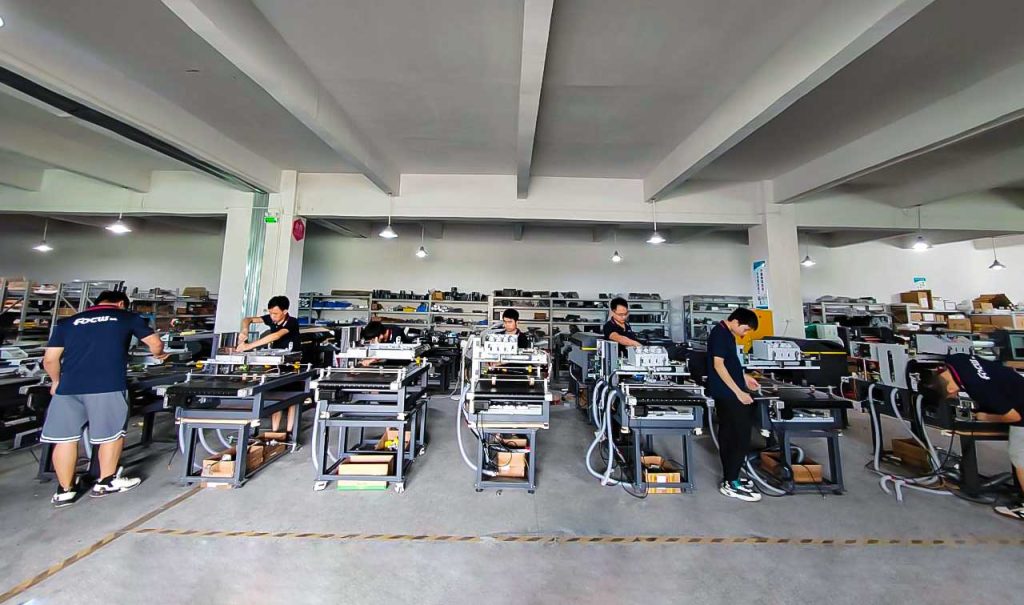

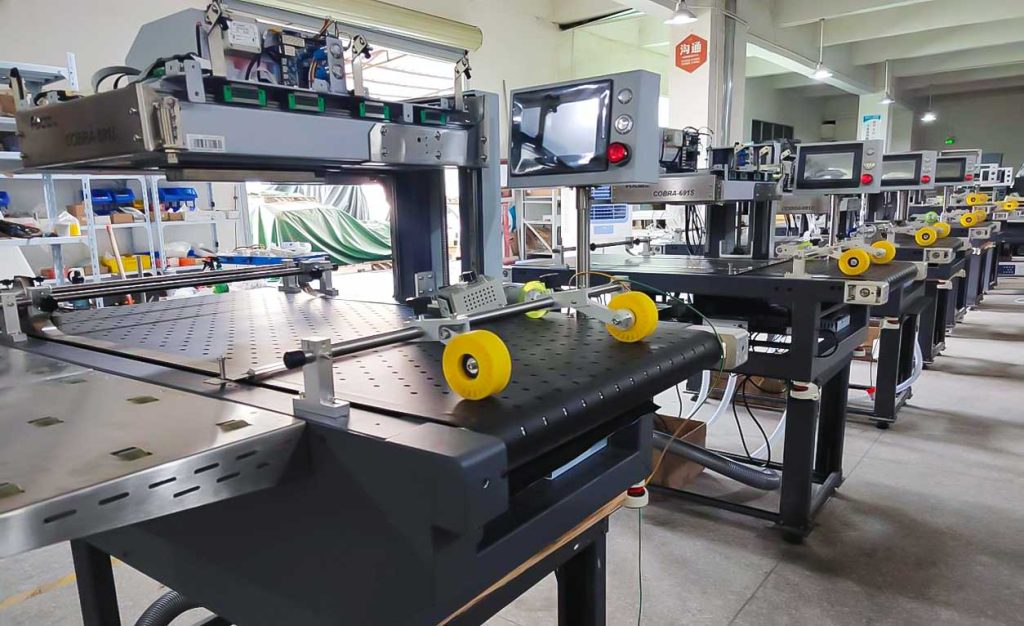

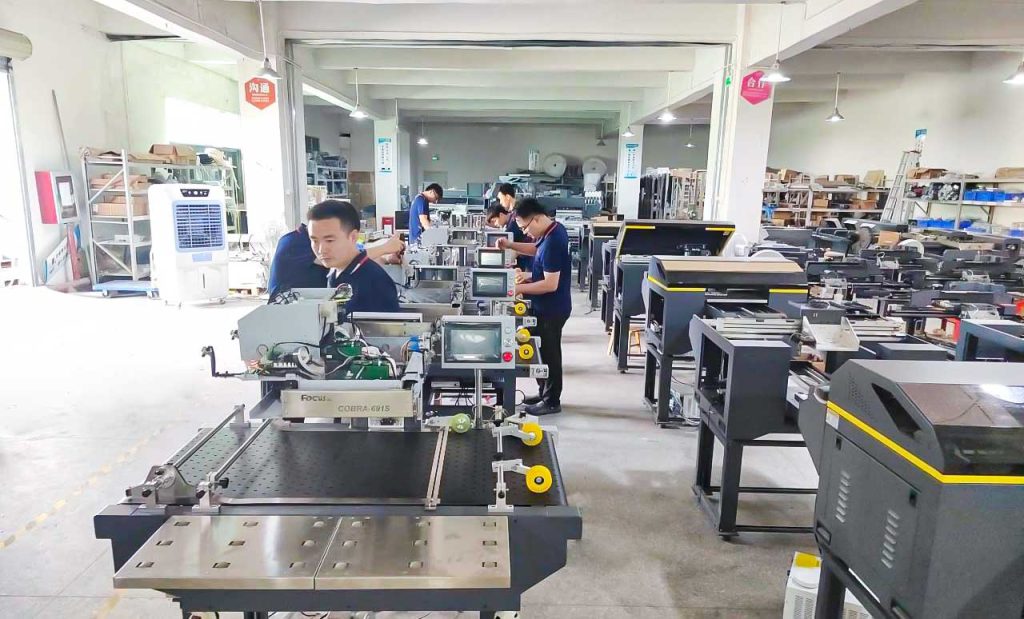

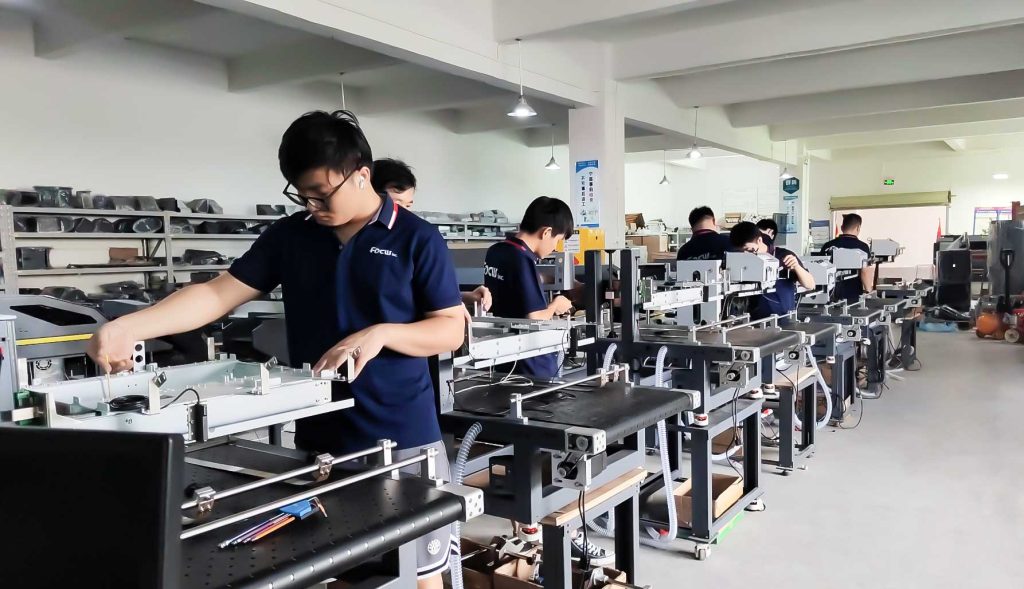

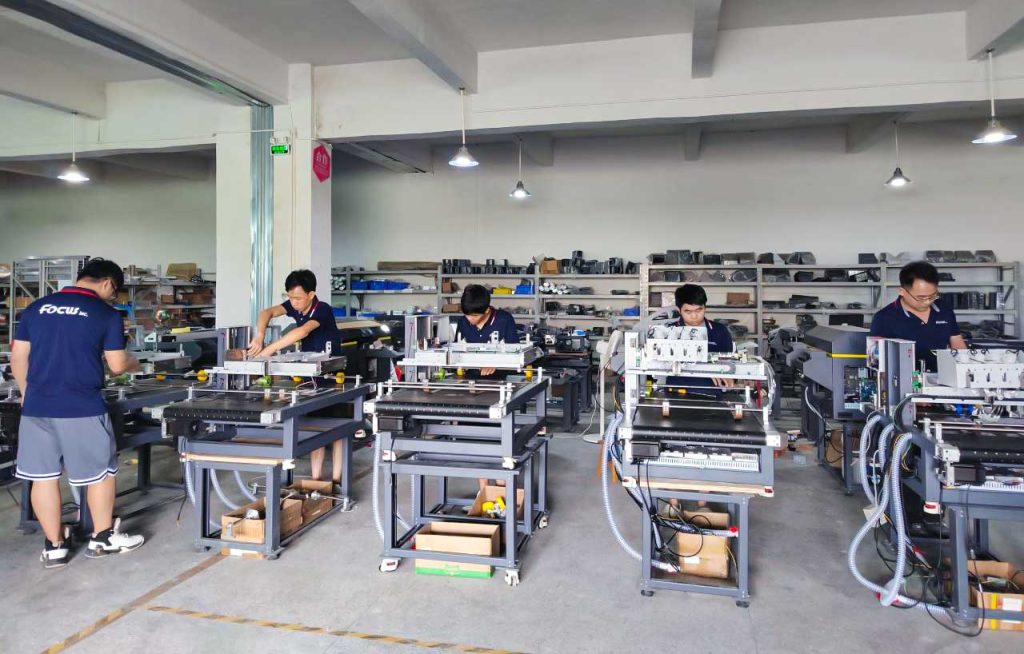

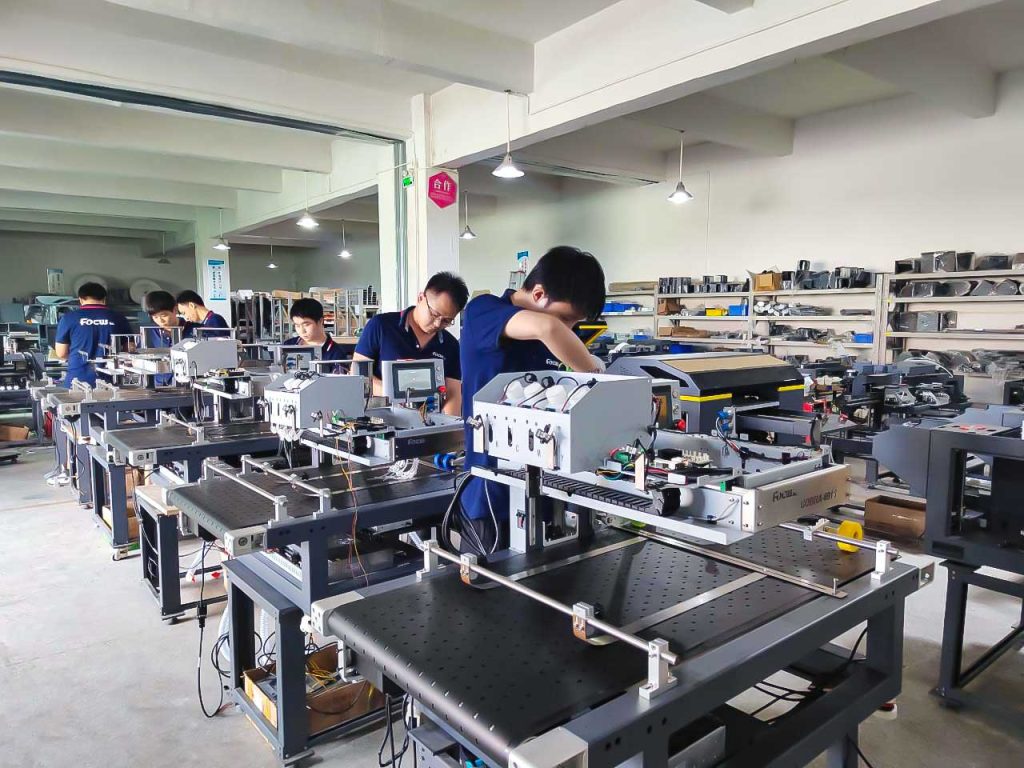

Production Line

FAQ

Are you a manufacturer or just a trader?

We are a manufacturer which has been in digital printing area for more than 16 years. , our own factory located in Shenzhen, and two branch offices in Shanghai and Shenzhen.

What materials can this printer print?

Metal,Glass,Ceramic, Plastic,Acrylic, Non-woven bag, plastic bag, Corrugated paper, Pizza boxs etc.
It support Flexible,Hard material printing.

What's the printing size？

With print width up to33-470mm
Up to 230mm media thickness

How about the warranty?

We provide a 13-month warranty and lifetime technical support.

Do you provide spare parts and ink too? Where can I get them?

Yes, we supply them.You can get it from us in anytime.

This is my first time to print, will you support me?

Sure, we provide professional manual、tutorial videos and engineer online support, don’t be worried.

How about the shipping？Can you send to my door？

Yes, we can send to your door. Normally we arrange the shipping by sea、by air and by express.You can choose the way you like.
