FocusInc Acaleph-891S-e Economic UV Single Pass Printer

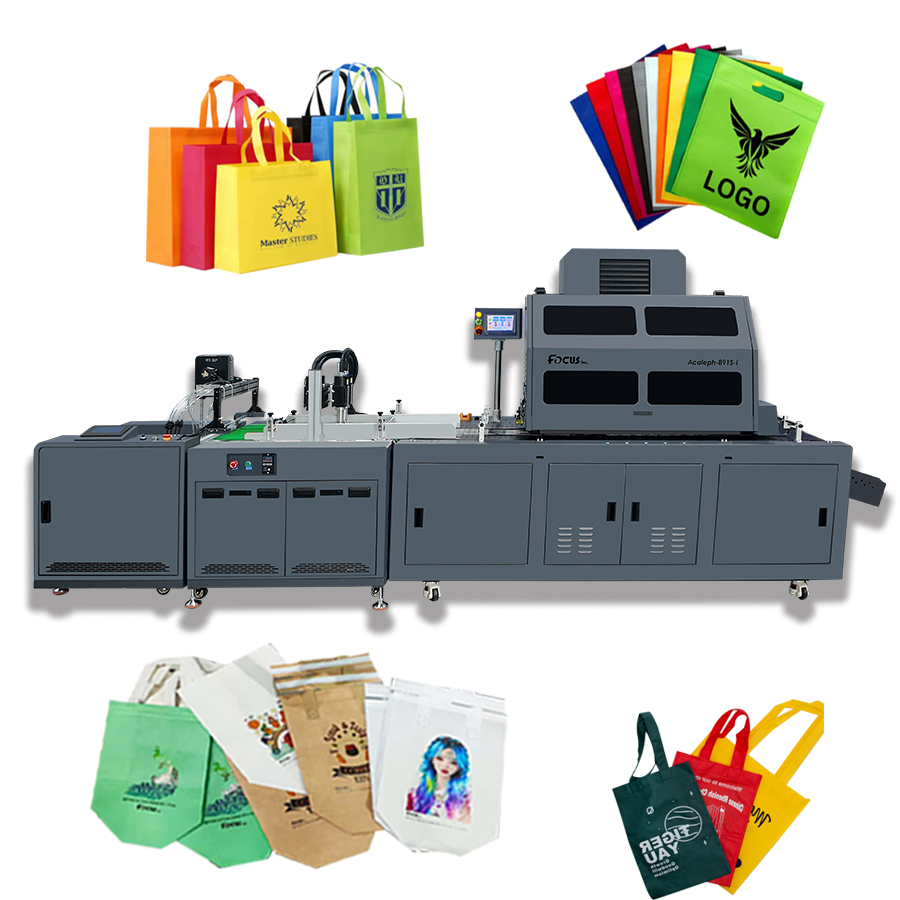

FocusInc industrial UV Single Pass Printer Acaleph-891S-e printing system is a printer for plastic pouch bags, Non-woven bag, PP/PET/BOPP plastic bag, Corrugated paper, Pizza boxs etc.

Model:Acaleph-891s e
Maximum print width: 53mm~500mm(Depend on Print Head Ammount)
Print head :SEIKO-RC1536, 2560 / RICOH G5 / RICOH G6 / XAAR2002 / TOSHIBA CF3 CF6
Printing color ：CMYK+W+V
The printing speed:10~40meter/min (According to different print model and ink type)
Ink:UV curing ink / Aqueous ink
RIP software: FocusRIP & Others Optional

Leave Message Chat Online Product Video

Product List

Get Inquiry

Meet the Acaleph-891S-e industrial UV single pass printer- the future of packaging production. As a leading UV single pass printer, it's engineered to redefine speed and sustainability for non woven bags maker, plastic pouch bags maker, flexible packaging producers, and beyoud.

This UV single pass technology prints in one pass, eliminating slow setups and slashing turnaround times. Whether you're working with recycled corrugated, biodegradable films, or thick paper, the Acaleph-891S-e delivers vivid, 1200 dpi prints with instant-drying UV inks-no smudges, no delays. For manufacturers chasing 2025's demand for fast, green and customization packaging, the Acaleph-891S e series industrial UV single pass printer with demand print head types will be the solution.

Product description

FocusInc UV Single Pass Printer Acaleph-891S-e is an economic version, more affordable UV single pass printer for Metal,Glass,Ceramic, Plastic,Acrylic, Non-woven bag, plastic bag, Corrugated paper, Pizza boxs etc. It is new star and trend in digital&inkjet printing industry.

Economical UV Inkjet Single Pass Printer videos for different media

Printing Sample

Since the successful research and development of Acaleph-891S e Economic UV Single Pass Printer, below is printing media which can be printed by it：

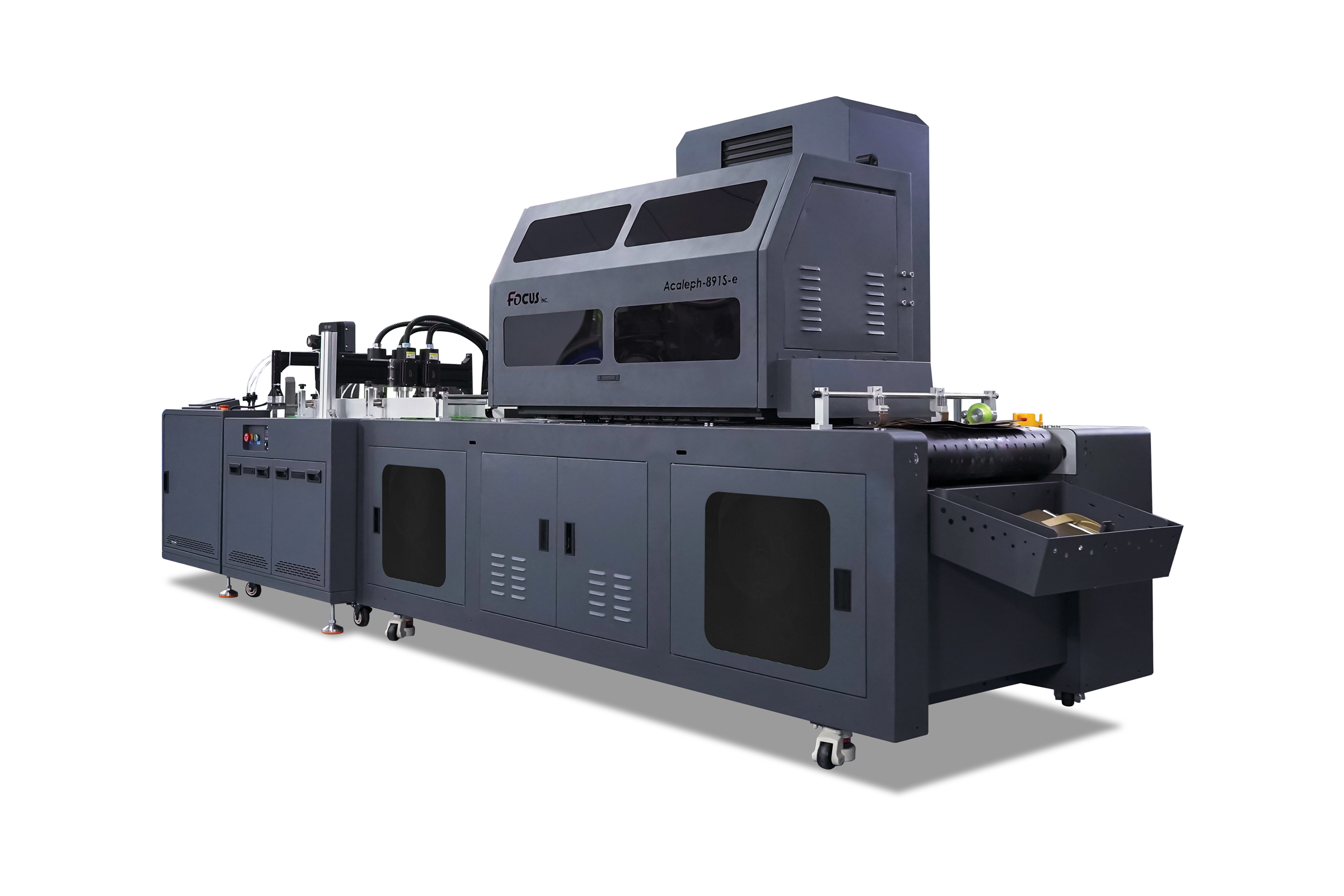

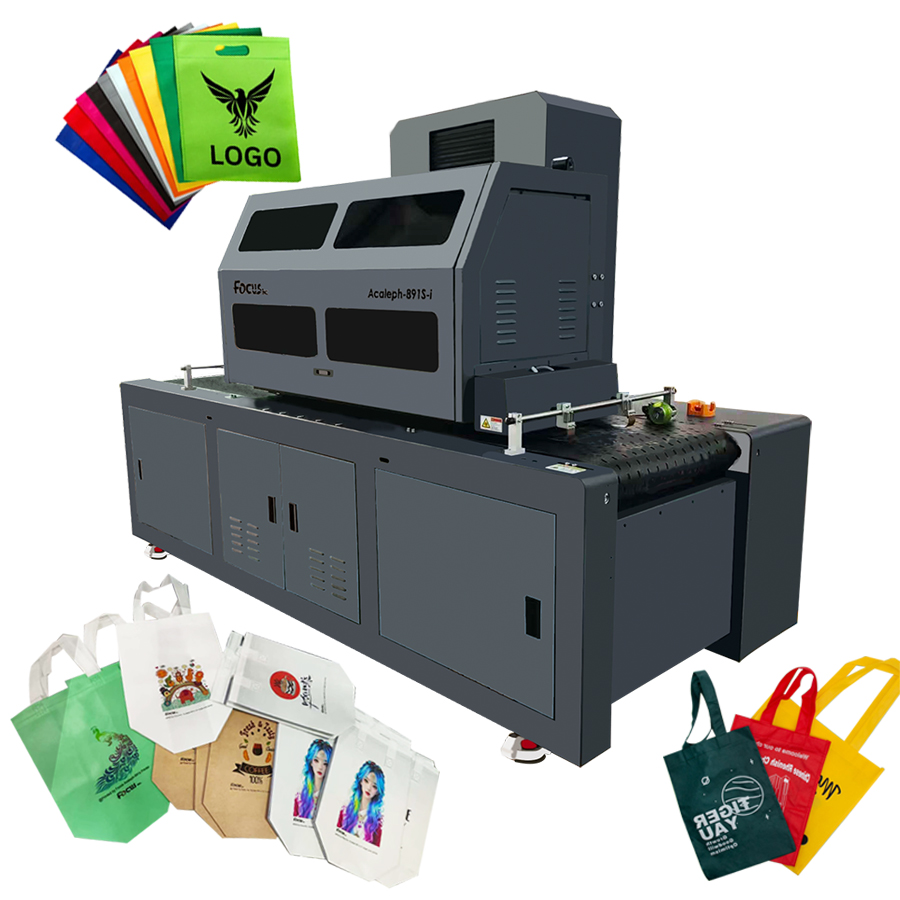

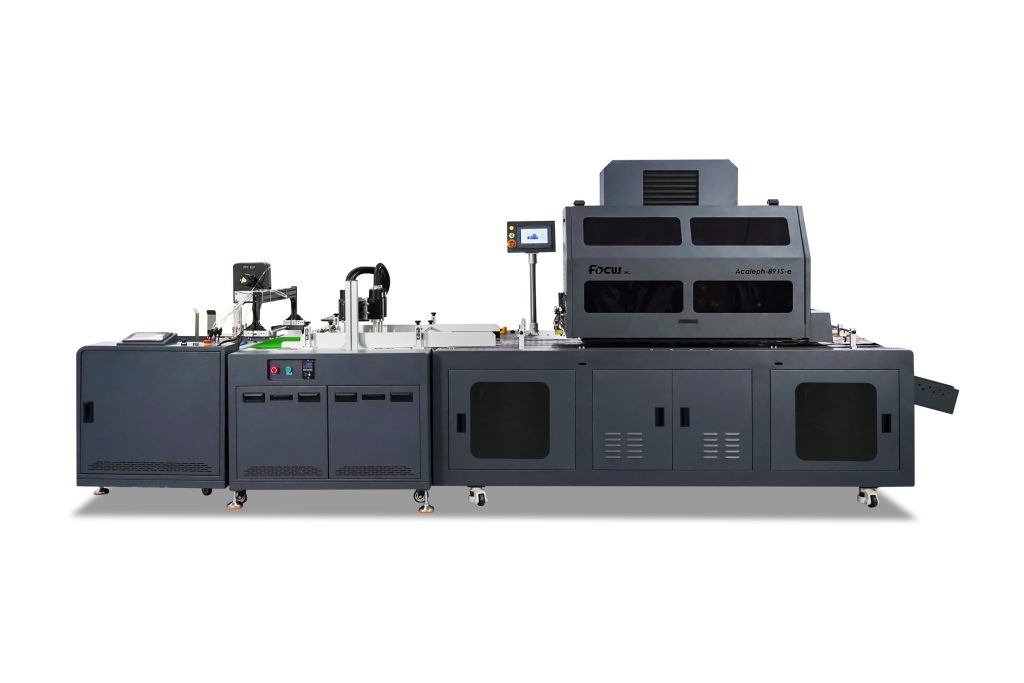

Product Image

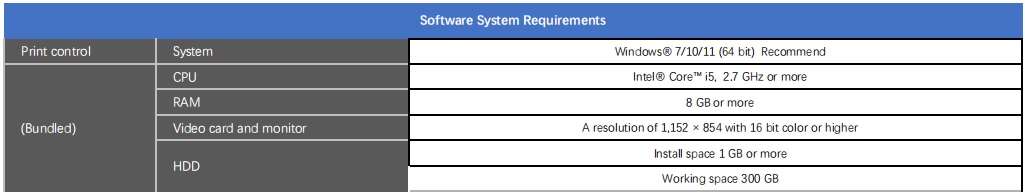

Technical Detail

Advantage 1

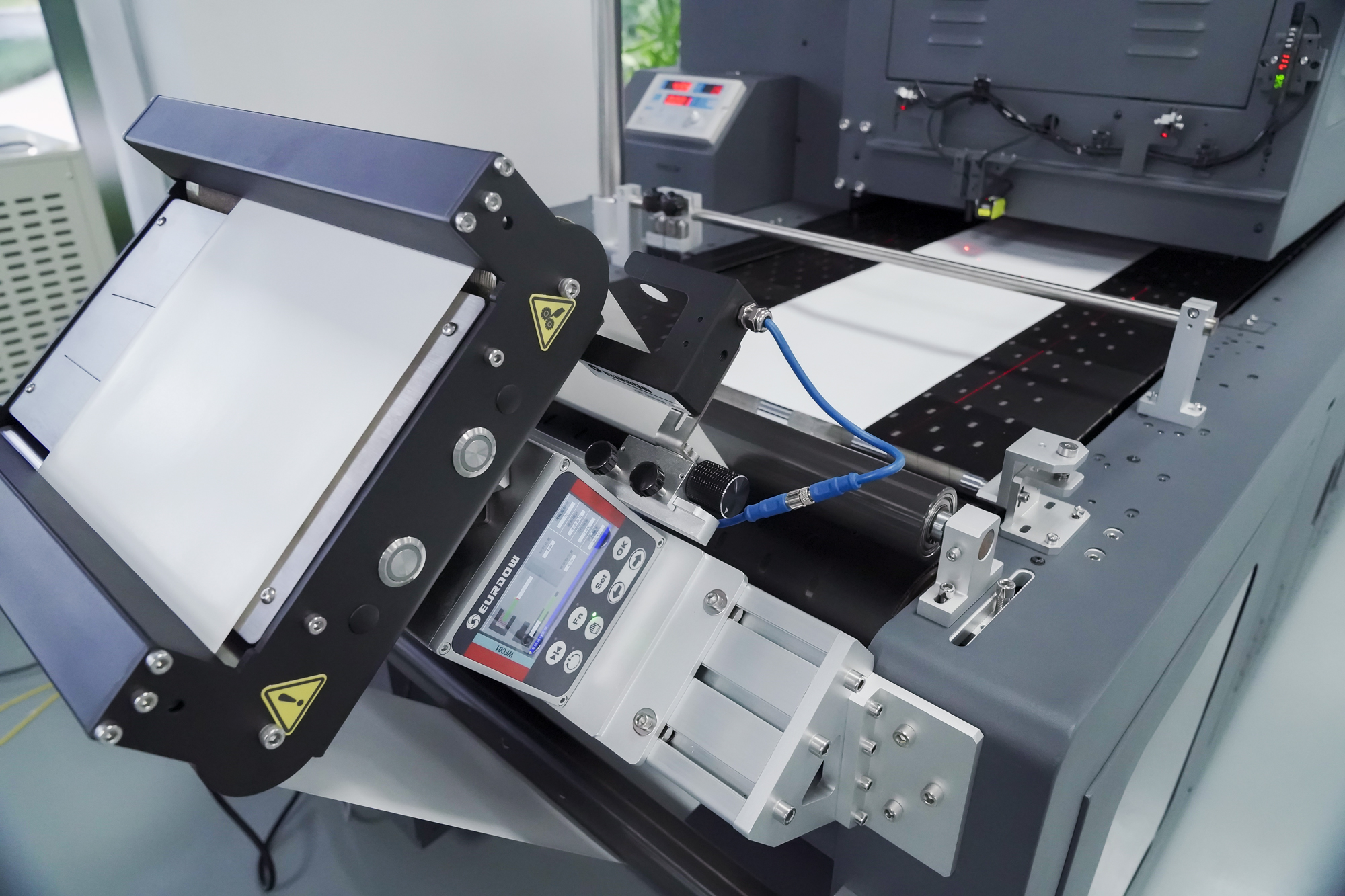

Equipped with an automatic optical alignment system for high-precision roll-to-roll printing of materials.

Advantage 2

60CM ultra-wide printing guide belt enables printing of different wide-width materials

Advantage 3

The printing unit design with a height adjustment of up to 300mm is compatible with printing materials of varying thicknesses.

Advantage 4

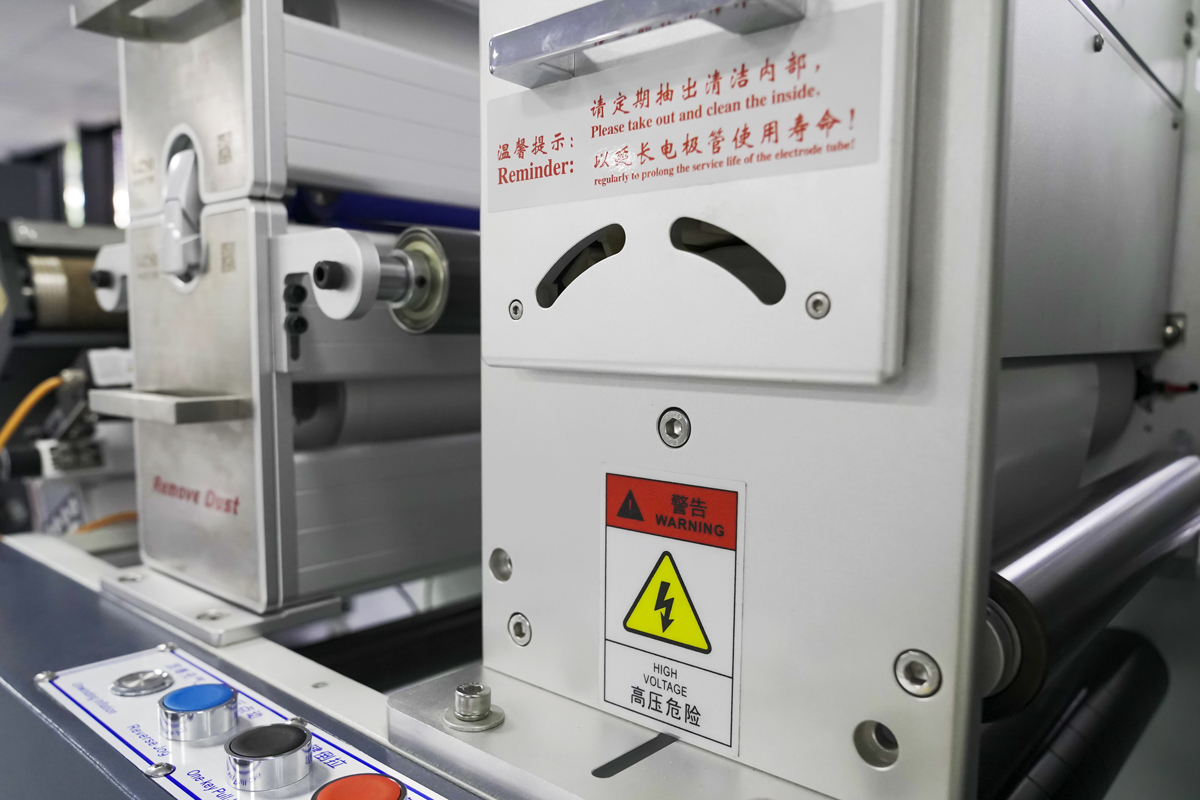

Optional features include Dust Removal and a Corona system for roll material pre-treatment to improve printing accuracy and ink adhesion.

Advantage 5

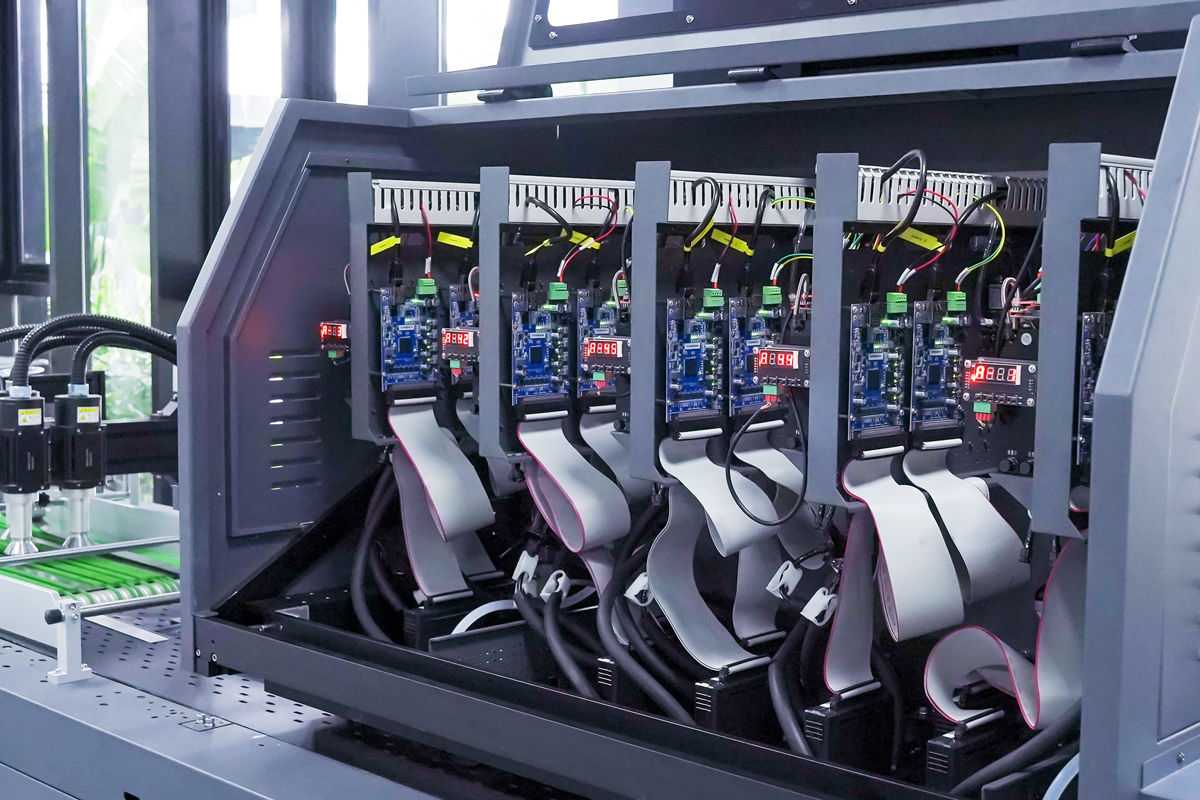

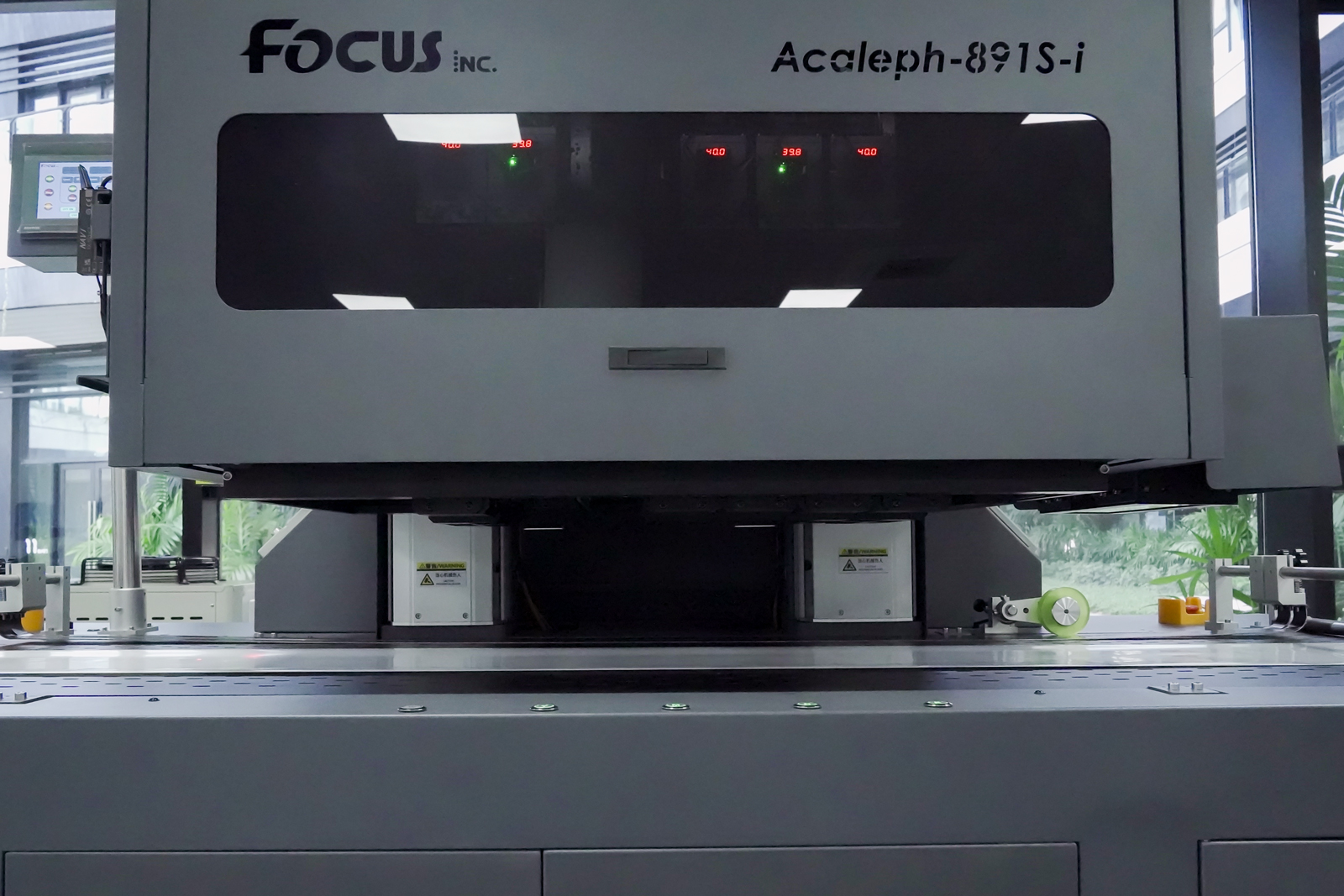

Printing carriage compatible with different print-head combinations

Advantage 6

The segmented adjustable UV water-cooled circulating curing system enables curing, leveling, and drying of different color combinations.

Advantage 7

High-power LED UV curing technology enables faster and more thorough curing after printing.

Advantage 8

High-sensitivity paper feed sensor quickly detects printing material

Advantage 9

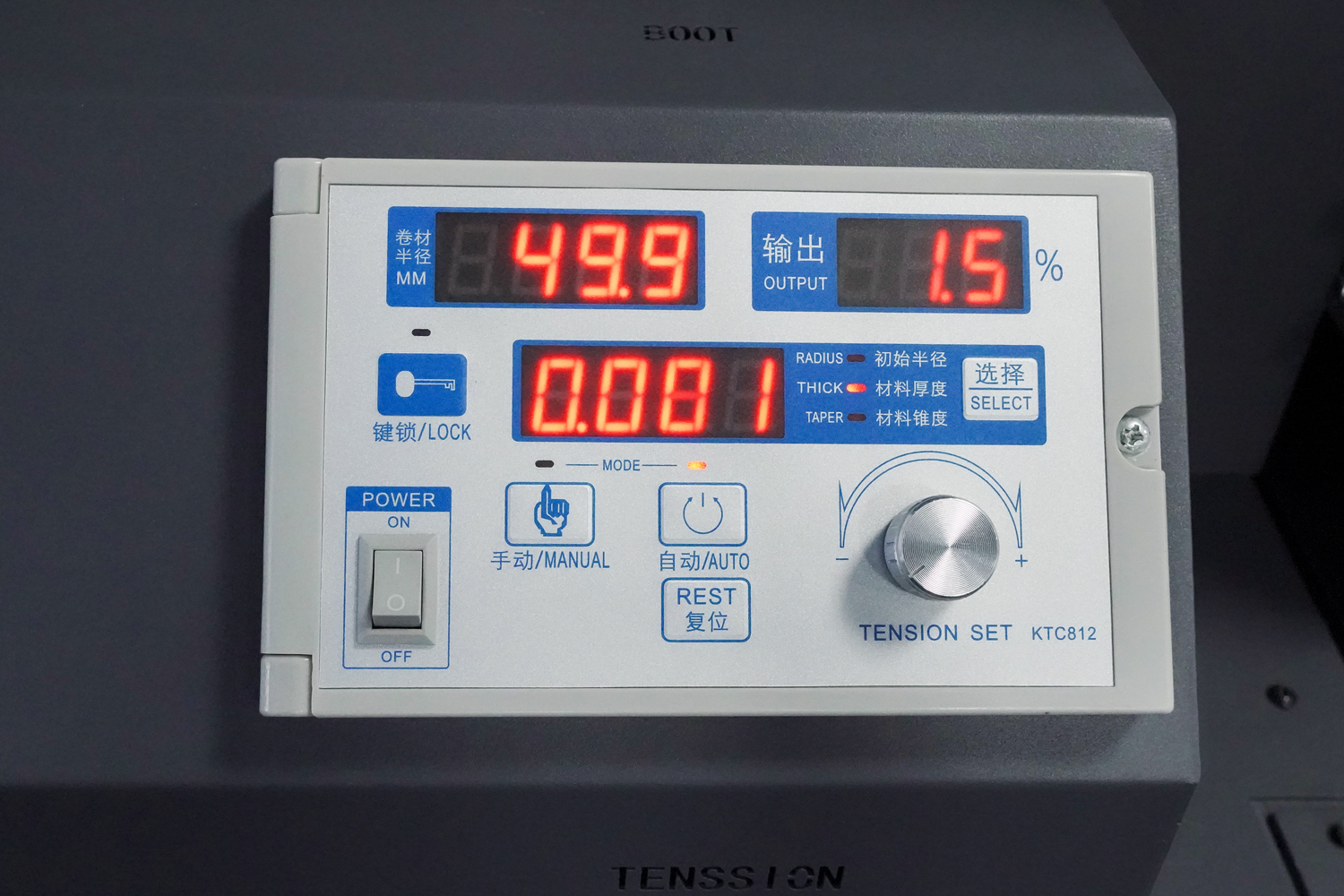

The real-time linearized tension control system ensures automatic unwinding and rewinding of roll-to-roll materials.

Advantage 10

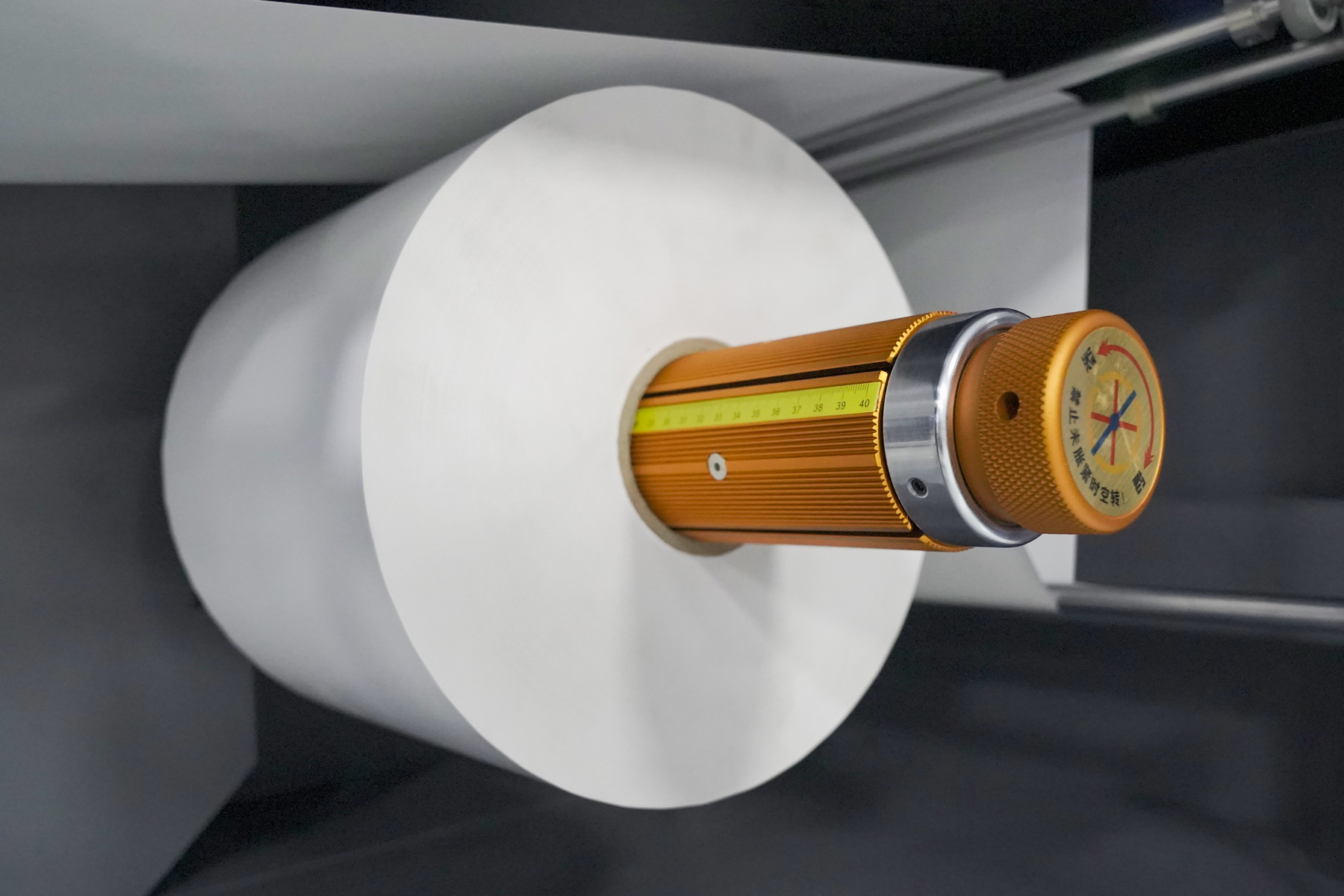

Multiple paper guide force control shafts ensure stable feeding of roll-to-roll materials.

Advantage 11

Laser sensors are used to automatically sense the thickness of the printing material.

Advantage 12

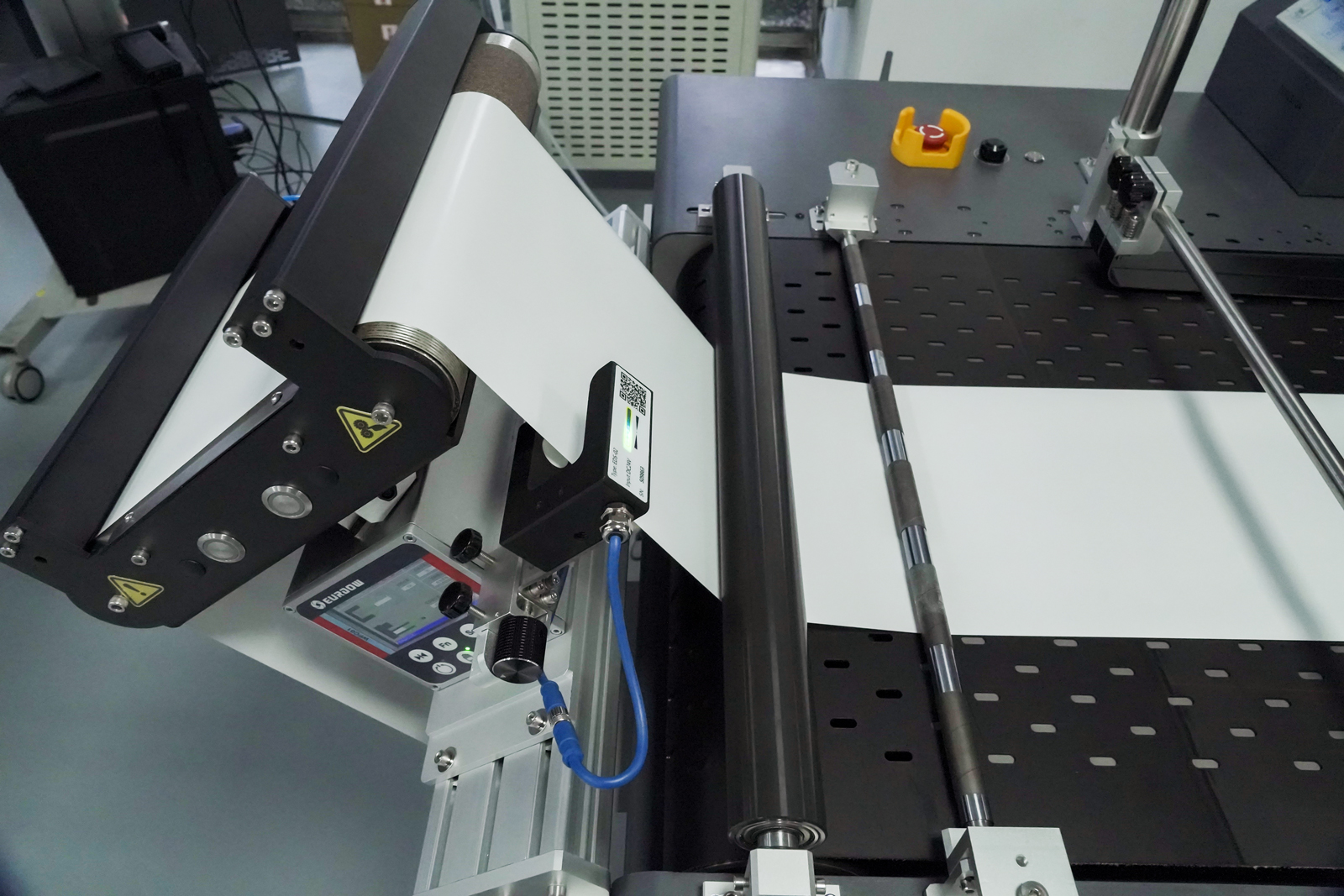

The feeding correction system is equipped with a high-brightness laser correction system, making feeding more precise.

Advantage 13

Optional roll-to-roll take-up and unload system enables roll-to-roll printing.

Advantage 14

Can be used with advanced vacuum adsorption pleating machines

Advantage 15

It can be combined with several plasma pretreatment units to greatly improve ink adhesion and printing accuracy.

Advantage 16

Adjustable feed guide head allows for more precise and faster material placement.

Advantage 17

Modular quick-alignment nozzle mounting plate design - easy nozzle installation and commissioning

Advantage 18

Equipped with a paper clamping strip, it facilitates printing of materials with arched or curled edges.

Advantage 19

Real-time PID ink circulation control box makes ink supply safer and more stable.

Advantage 20

Real-time PID quantization gain ink path circulation control technology makes printing ink supply more stable and precise.

Advantage 21

A stable and safe electrical control system ensures the safe and stable operation of equipment.

Advantage 22

The integrated plasma generator can automatically adjust the plasma intensity to suit different materials.

Advantage 23

The entire machine is made using laser cutting technology to ensure mechanical precision and stability.

Advantage 24

Supports simultaneous printing of base coat, white, color, and spot colors.

Advantage 25

Automatic ink replenishment and automatic ink shortage alarm ensure timely ink supply for printing.

Advantage 26

The 2500PIR high-precision meter wheel enables high-precision operation and printing on the Y-axis.

Advantage 27

Touchscreen control makes the machine easy to operate and use.

Customer feedback

Customer feedback1

Customer feedback2

Customer feedback3

Customer feedback4

Customer feedback5

Customer feedback6

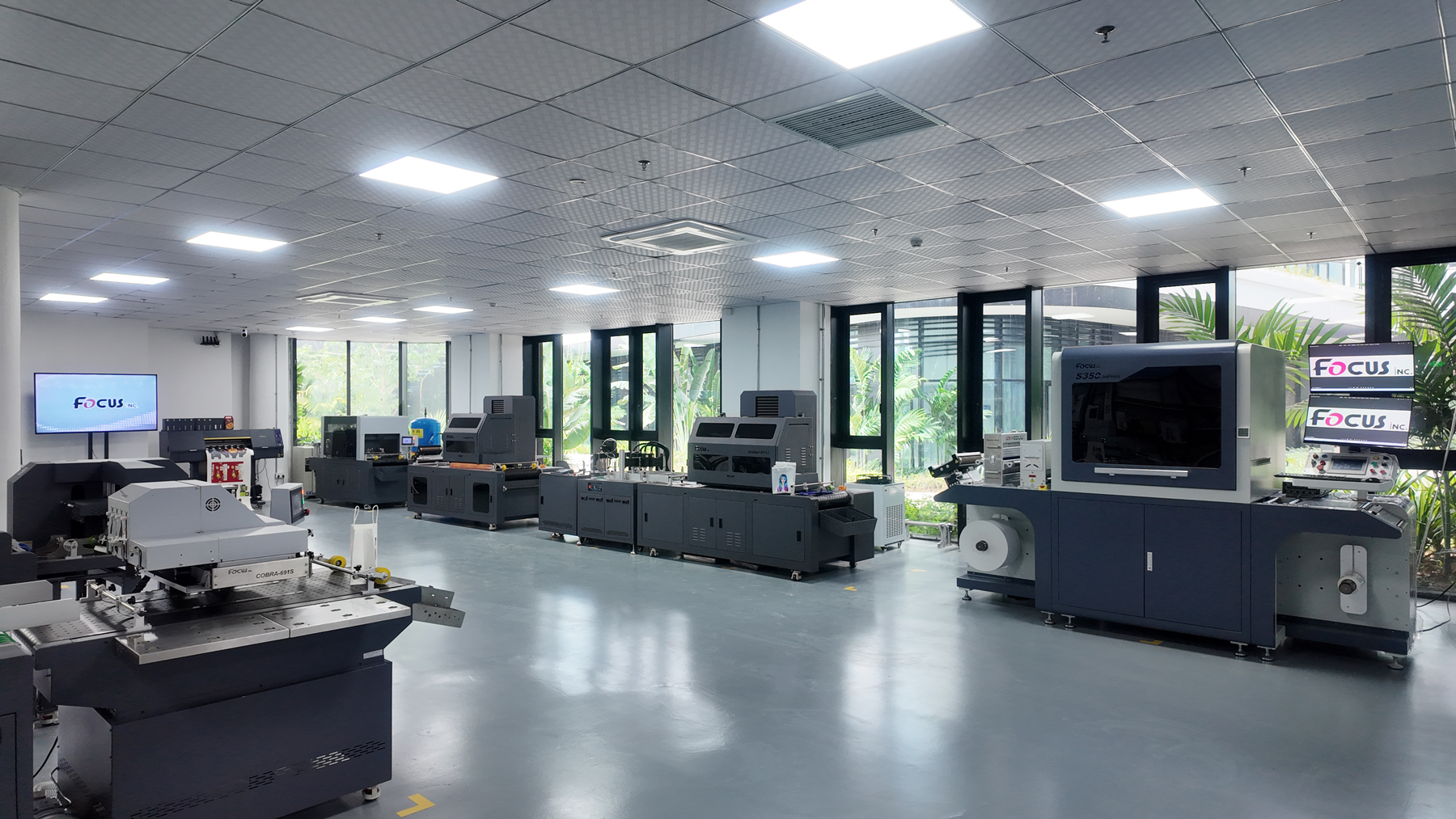

Production Line

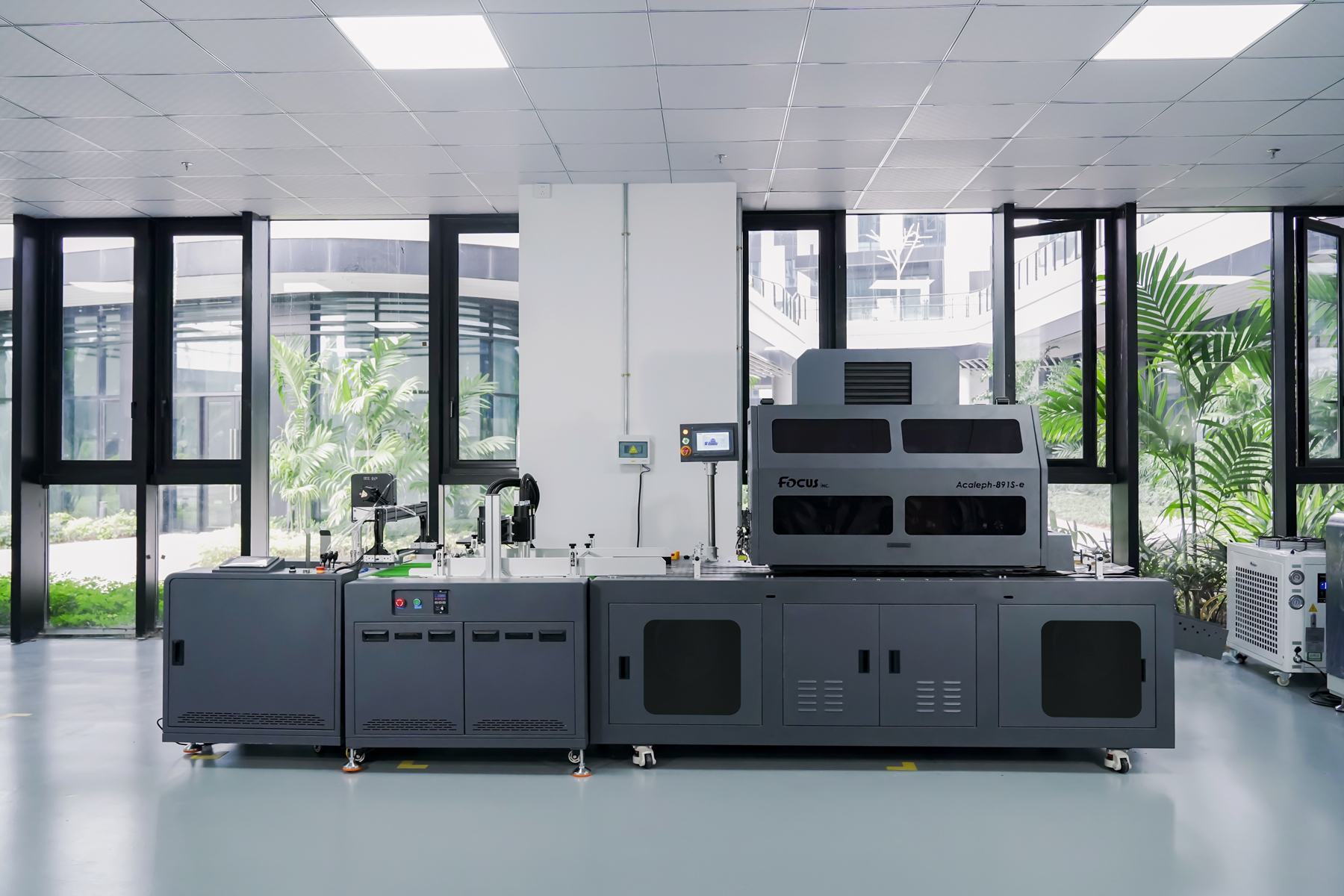

industrial uv single pass printer R&D
RESEARCH & DEVELOPMENT CENTER

FAQ

Are you a manufacturer or just a trader?

We are a manufacturer which has been in digital printing area for more than 17 years. , our own factory located in Shenzhen, and two branch offices in Shanghai and Shenzhen.

What materials can this printer print?

Metal,Glass,Ceramic, Plastic,Acrylic, Non-woven bag, plastic bag, Corrugated paper, Pizza boxs etc.
It support Flexible,Hard material printing.
And special media printing solution design.

What's the printing size？

With print width up to 53-500mm
Up to 300 mm media thickness

How about the warranty?

We provide a 13-month warranty and lifetime technical support.

Do you provide spare parts and ink too? Where can I get them?

Yes, we supply them.You can get it from us in anytime.

This is my first time to print, will you support me?

Sure, we provide professional manual、tutorial videos and engineer online support, don’t be worried.

How about the shipping？Can you send to my door？

Yes, we can send to your door. Normally we arrange the shipping by sea、by air and by express.You can choose the way you like.

How can I get the machine ?I have so many questions want to ask.

Just send inquiry to us! Our sales team is waiting for you. They will patiently answer all your questions.
