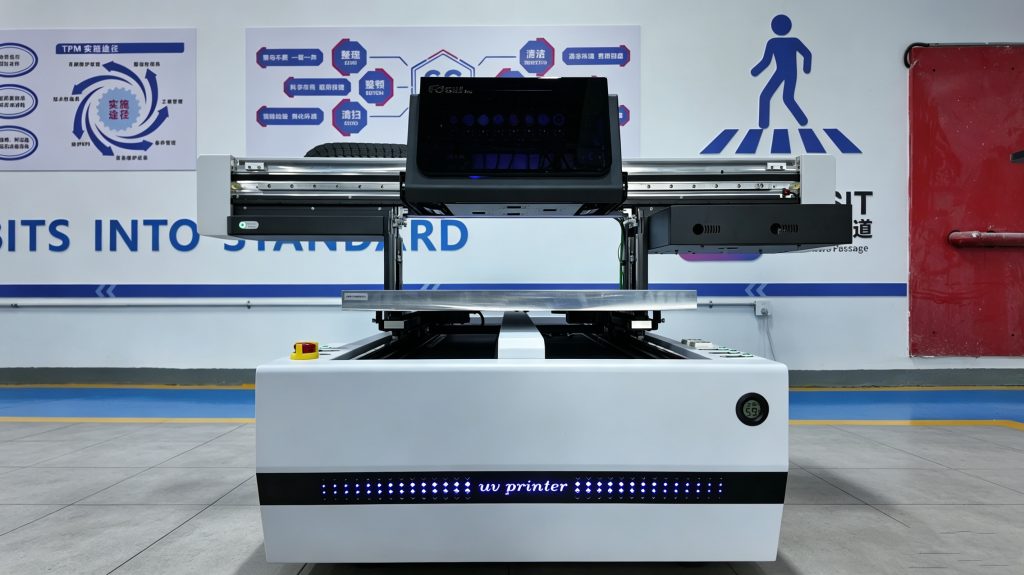

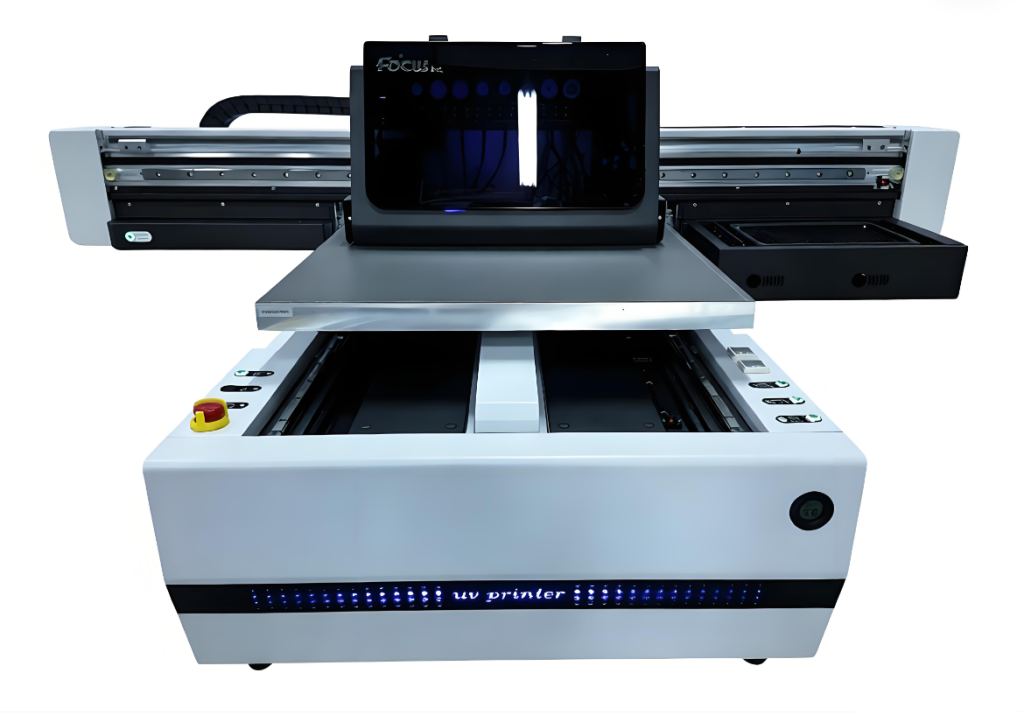

The Focus Inc. 6090 industrial UV flatbed printer is purpose-built for tooling-free, irregular substrate printing. Its integrated in-line linear scanning camera and AI positioning algorithm eliminate manual workpiece alignment and complex station calculation — simply place parts freely on the print bed, and the system automatically detects position, matches artwork, and executes high-precision printing in one click.
Ideal for small-batch customization, industrial part marking, and signage production, it supports configurable printhead setups to deliver white ink, full-color graphics, and UV varnish in a single pass.
Product description
Core Feature 1: AI Visual Positioning System
A high-precision linear scanner mounted on the cross beam scans the entire print bed in one pass, capturing the exact contour, position, and angle of each workpiece.
Scan data feeds directly into computer to fit shape and design in software. This step auto-aligns your print artwork to the workpiece in real time — no manual measurement, no layout calculation.
Removes the need for custom jigs and fixtures, cutting setup time by over 70% and eliminating human positioning errors.
Perfect for irregularly shaped parts, uneven substrates, and teams without professional positioning expertise.
Flexible printhead matching to adapt to different production speeds and precision requirements: compatible with Epson F1080, TX800, EPSON-I3200 printheads, and industrial compact nozzles.
Supports up to 4 printheads for simultaneous output of white ink, full CMYK color, and UV varnish — enabling high-speed, single-pass printing.
Optimized piezoelectric inkjet control delivers consistent droplet size, sharp edge definition, and uniform color reproduction across all material types.
Core Feature 3: Print Capacity & Material Compatibility
Standard configuration: handles materials up to 200 mm (20 cm) in height, suitable for most conventional flat substrates.
AI vision configuration: maintains high positioning accuracy with materials up to 180 mm (18 cm) thick.
Works with acrylic, PVC, wood, metal, glass, leather, corrugated board, plastic, and other common industrial and advertising materials.
Why Choose Focus Inc. 6090 UV Flatbed Printer
Tooling-free operation drastically reduces pre-press preparation time and labor costs
Modular design lets you upgrade AI vision and printhead configurations as your business grows

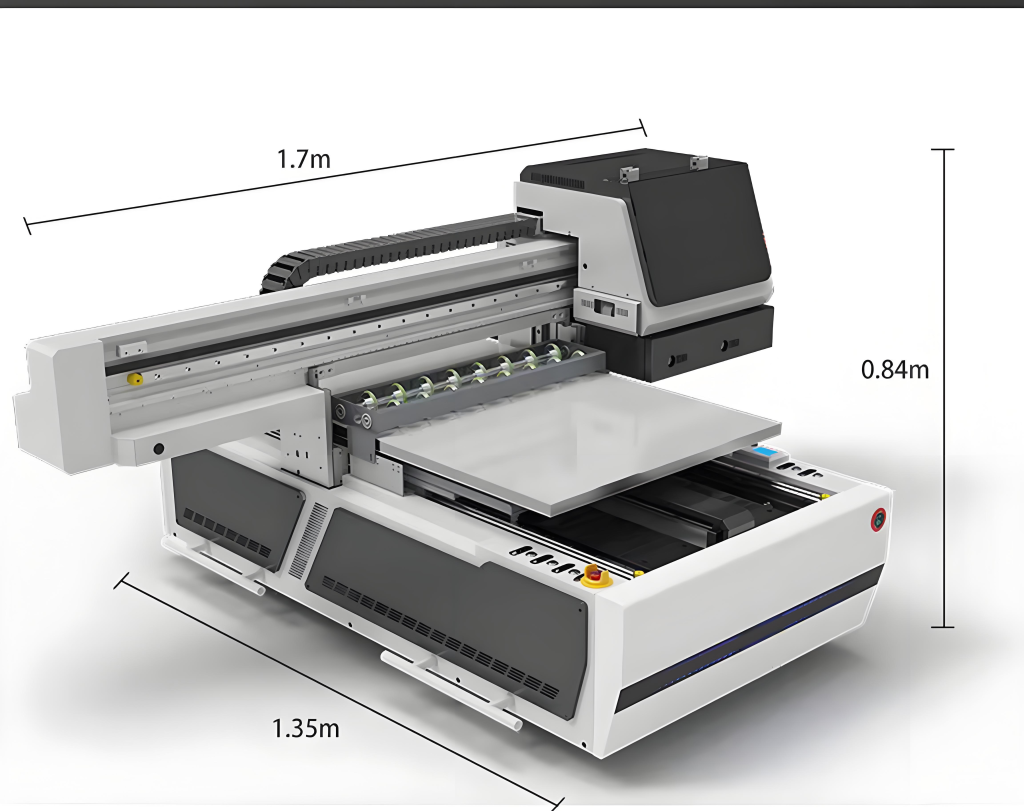

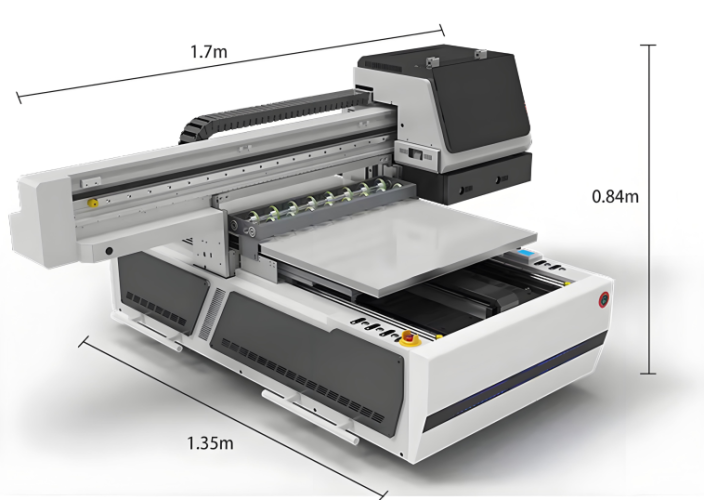

Galaxy-Jet uv printer has a large format printing size of 60cm*90cm, which also means that more mobile phone cases, acrylic, bottles, metal, leather, cards, golf balls can be printed in batches at the same time.

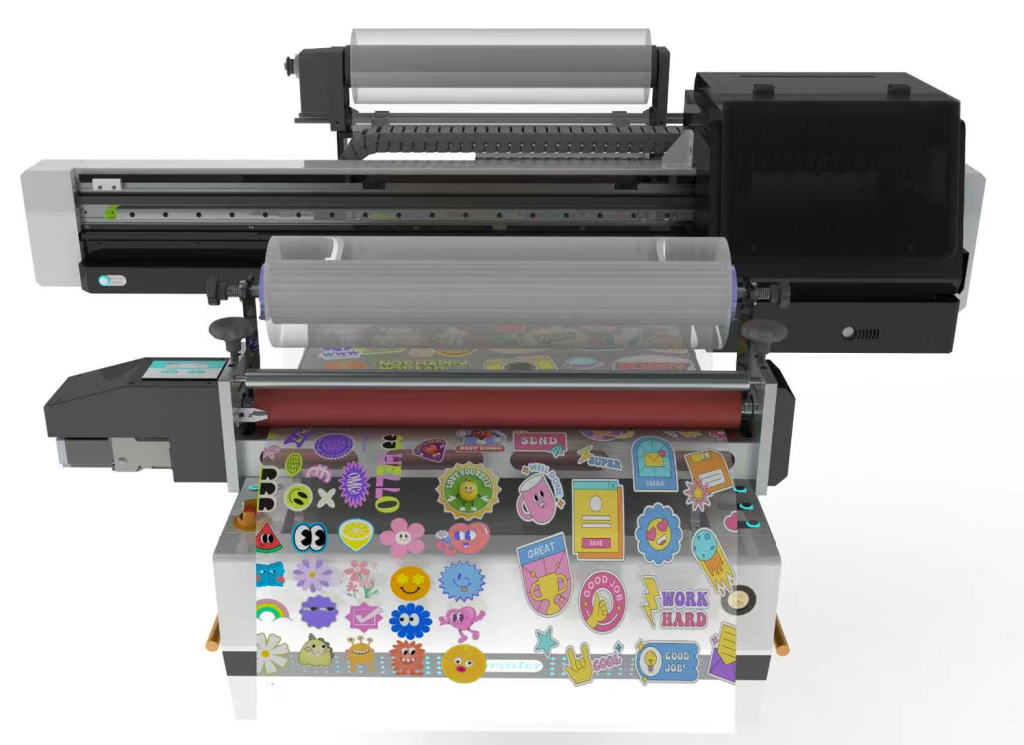

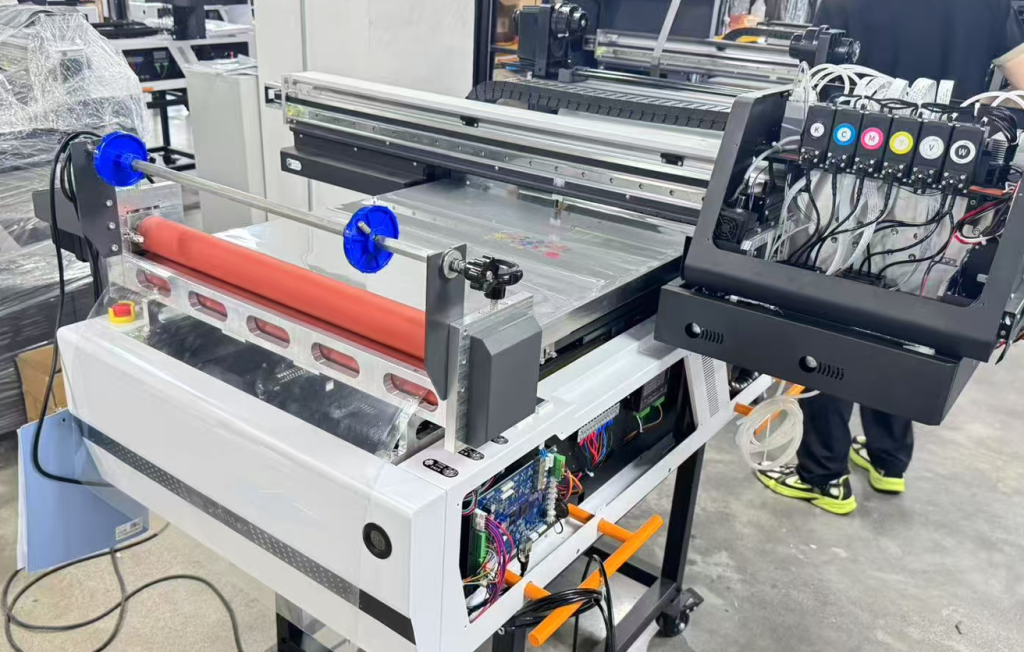

It's a flatbed uv printer, rotary bottles uv printer, roll to roll sticker label uv printer, all function in one machine.
Advantage
Irregular industrial part marking and printing
Customized gifts and promotional items (small-batch production)
Signage and display board manufacturing without fixed tooling
Production environments with frequent workpiece changeovers and high setup efficiency demands
Technical Detail
Whether it is in terms of printing quality or batch printing quantity,Galaxy-Jet 6090 AI A1 uv printer can meet the printing needs of more customers and bring huge benefits.Of course, the 10 technical advantages mentioned below will also tell you why you should choose our a1 uv printer.

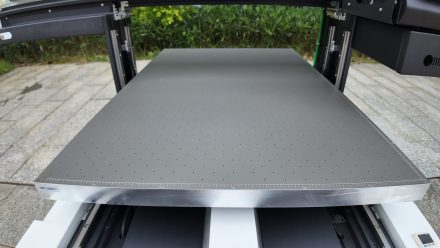

FocusInc. adopts double Teflon coating treatment,the surface is bright,truly scratch-resistant,oil-proof and glue-proof,metal ecthing technology to achieve high-definition display of numbers and scales. and with vacuum holes to adsorb flex materials well
Advantage3

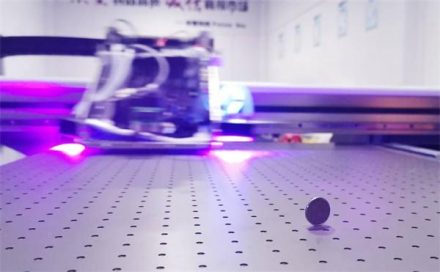

CNC gantry milling technology, ensure that the flatness of the rail mounting surface is controlled within +/-0.01MM, the thickened square aluminum die-casting can achieve higher X-axis running accuracy, installation accuracy, and ensure the high-precision and quiet operation of the trolley!
Advantage4

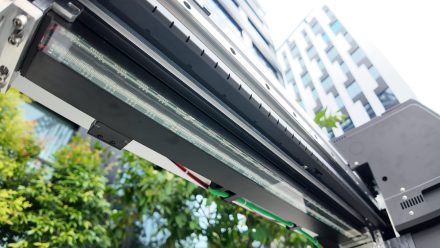

An optional linear scanning device can be installed under the printer's crossbeam. This device uses AI vision to scan and locate irregularly shaped or irregularly positioned items, transmitting the image in real time. The software automatically matches the print outline with the design image.
Advantage5
C5 precision grade grinding ball screw drive, Grinding screw is aimed at industries with high precision requirements. It has high precision, long life, high efficiency, but also high cost.
Advantage6
The high-precision grating of 180 LINE per inch is equipped with the American ARGO high-precision grating decoder to realize the precise positioning of the print head in the X-axis direction and high-speed printing.
Advantage7
Compared with peer stepper motors, the high-precision closed-loop servo motor greatly improves the running accuracy and prevents lost steps. The signal is instantly fed back to the main board for error compensation.
Advantage8

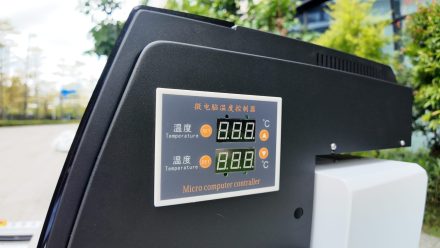

It features built-in temperature regulation and control, and heating elements are installed around the inkjet carriage.
Advantage9
Z axis-4 1605 high-precision grinding screws.
Advantage10

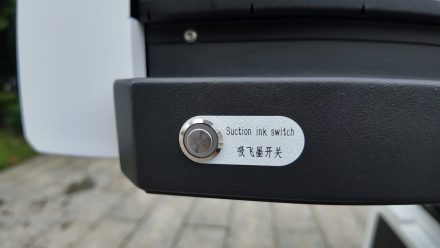

The machine is equipped with an ink absorption switch on the side, which helps reduce the spread of ink odor.
Customer feedback
Customer feedback1
Customer feedback2
Customer feedback3
Customer feedback4
Customer feedback5
Customer feedback6
FocusInc Industrial Manufacturing Facility: Organized Production Lines & Quality Control StationsProduction Assembly Lines
FAQ
Are you a manufacturer or just a trader?
We are a manufacturer which has been in digital printing area for more than 17 years. , our own factory located in Shenzhen, and two branch offices in Shanghai and Shenzhen.
What materials can this printer print?
It can print on almost everything like ceramic, metal, glass, wood, acrylic, PVC, plastic etc, a pretty good multi-functional printer.
Can the UV printer print varnish and embossed effects?
Yes, it can print. You can contact us and we send printing sample effect to you.
How about the warranty?
We provide a 13-month warranty and lifetime technical support.
Do you provide spare parts and ink too? Where can I get them?
Yes, we supply them.You can get it from us in anytime.
This is my first time to print, will you support me?
Sure, we provide professional manual、tutorial videos and engineer online support, don’t be worried.
Does it can print bottles?
Yes, it can print mug、bottle、tumbler.
ls the printer equipped with an automatic cleaning system?
Yes, it has automatic cleaning system, keep wet system, white ink stirring system etc. All to make the machine easy to use and maintain.
How about the shipping？Can you send to my door？
Yes, we can send to your door. Normally we arrange the shipping by sea、by air and by express.You can choose the way you like.
How can I get the machine ?I have so many questions want to ask.
Just send inquiry to us! Our sales team is waiting for you. They will patiently answer all your questions.
