In the fast-paced world of packaging production, the Cobra-691S single pass paper bag printer has emerged as a game-changer. With its unique single pass technology, it offers a plethora of features and benefits that can revolutionize your packaging operations.

Product description

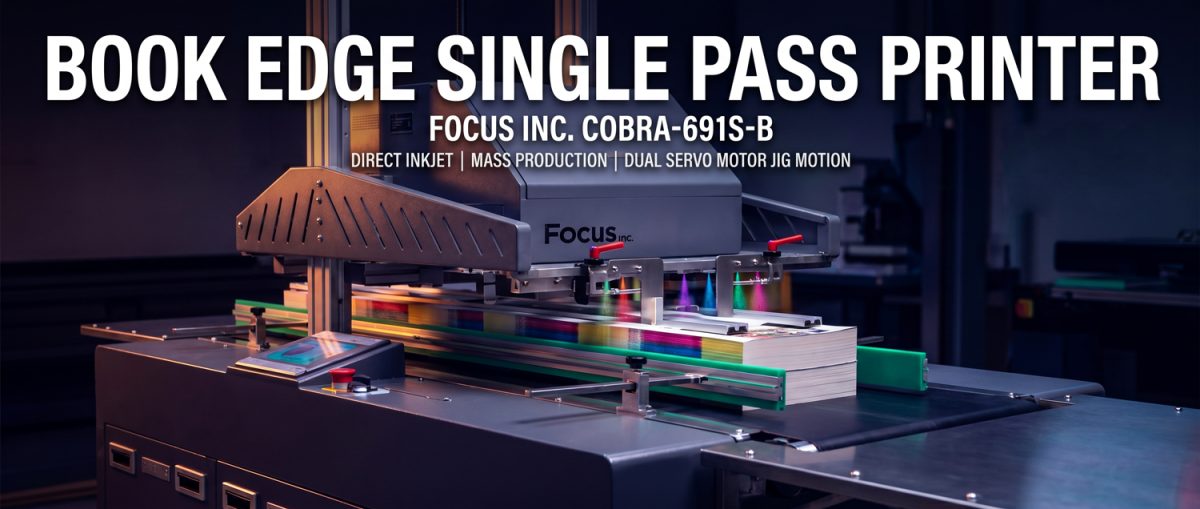

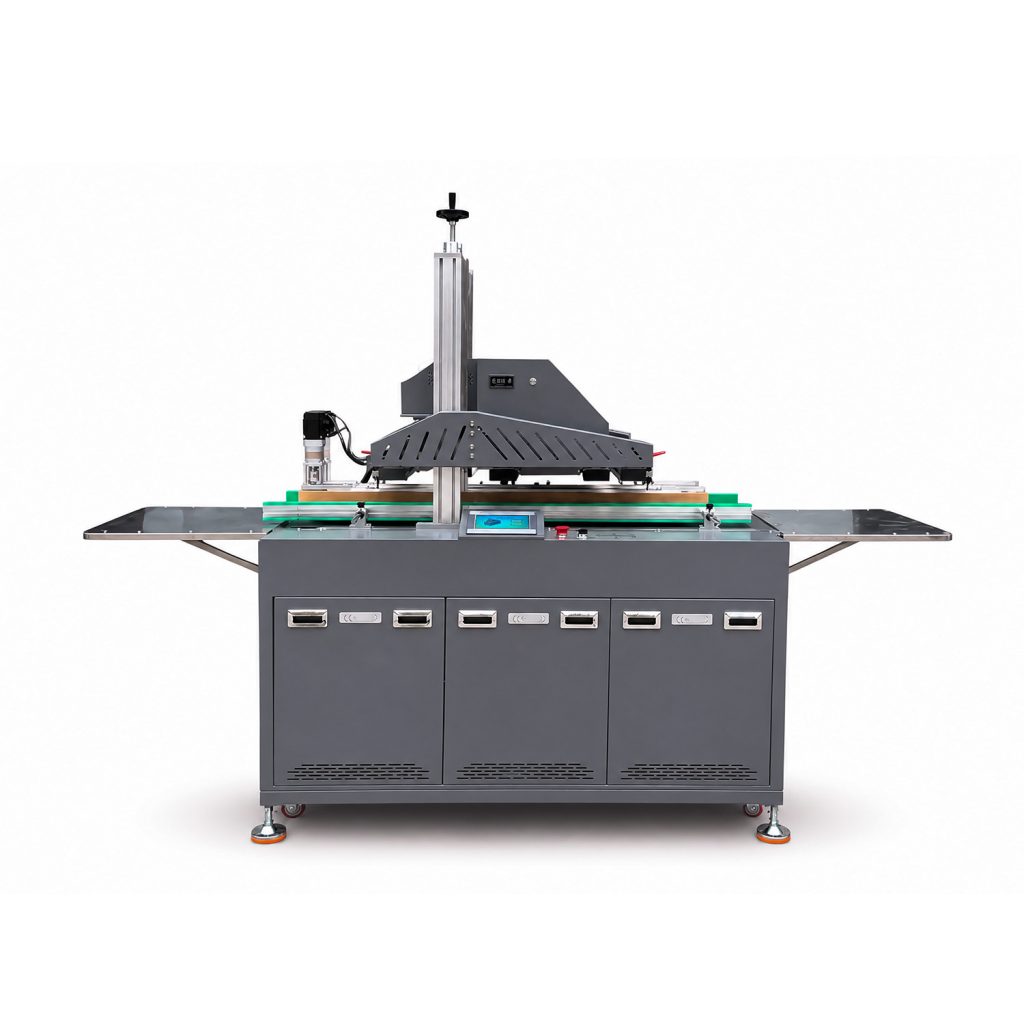

FocusInc. Cobra-691S-B Model, this dedicated single pass digital printer is specially engineered for book fore-edge side printing, equipped with independent dual conveyor belts and dual servo drive motors to deliver ultra-stable linear material transport. Dual-motor synchronous control eliminates uneven conveying speed, avoiding print offset, ghosting or pattern distortion on uneven stacked book edges. It supports dual ink options: eco-friendly water-based Pigment ink and dye ink to meet global market compliance demands. The full inline workflow realizes unmanned feeding(optional), printing and collecting, drastically cutting manual labor. It perfectly fits mass personalized printing on hardcover books, journals, notebooks, art picture books, supporting gradient color patterns, custom logos, text and variable serial number printing on book side edges. Multiple printing width configurations are optional to adapt paperback, thick hardcover and various notebook sizes.

• Dual-motor synchronous stable transmission, zero offset printing
• Support pigment and dye ink.
• Automatic trimming, feeding and collecting integrated
• High gradient color restoration for book edge artwork
• Fit hardcover, notebook, picture book, journal printing
• One-pass high speed, suitable for mass publishing production

Printing Sample

This machine is tailor-made for manufacturers with personalized inkjet pattern demands on book and notebook side edges. It works flawlessly for hardcover novels with gradient artistic fore-edge prints, branded diaries & journals with custom logo side marking, children’s picture books with colorful decorative edge patterns, school exercise notebooks, luxury gift notebooks and art albums. Whether you need simple monochrome text, full-color gradient artwork, unique serial numbers or anti-counterfeit variable QR codes on book fore-edges, the equipment can deliver consistent, distortion-free printing results for all thicknesses of paper book stacks.

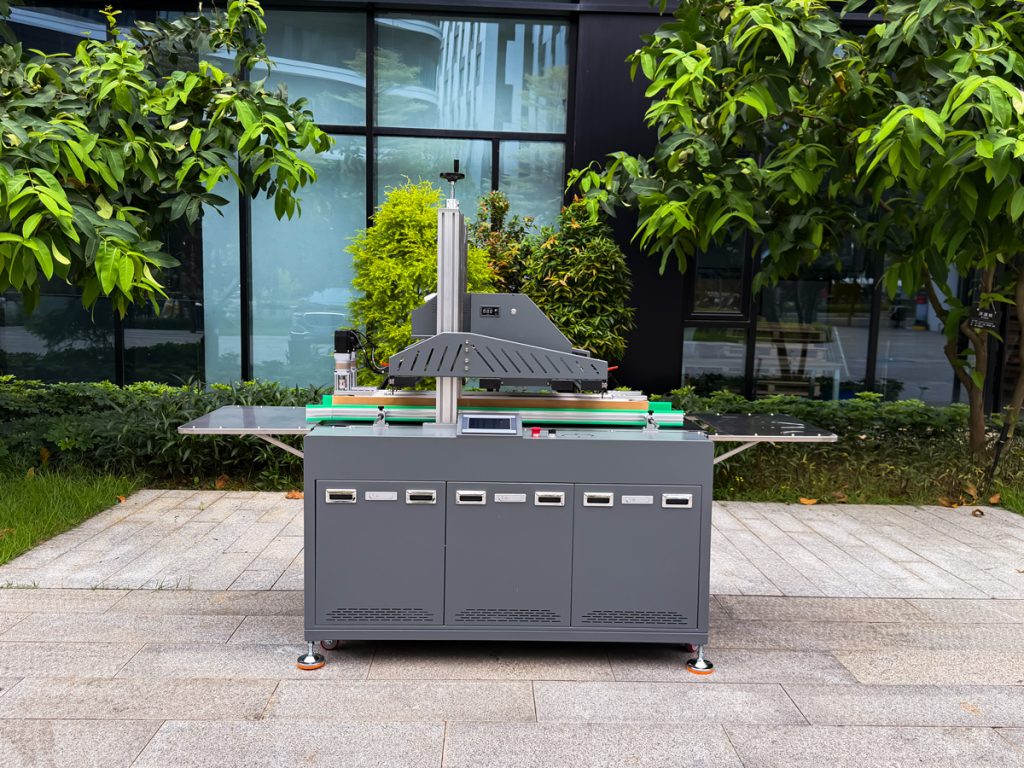

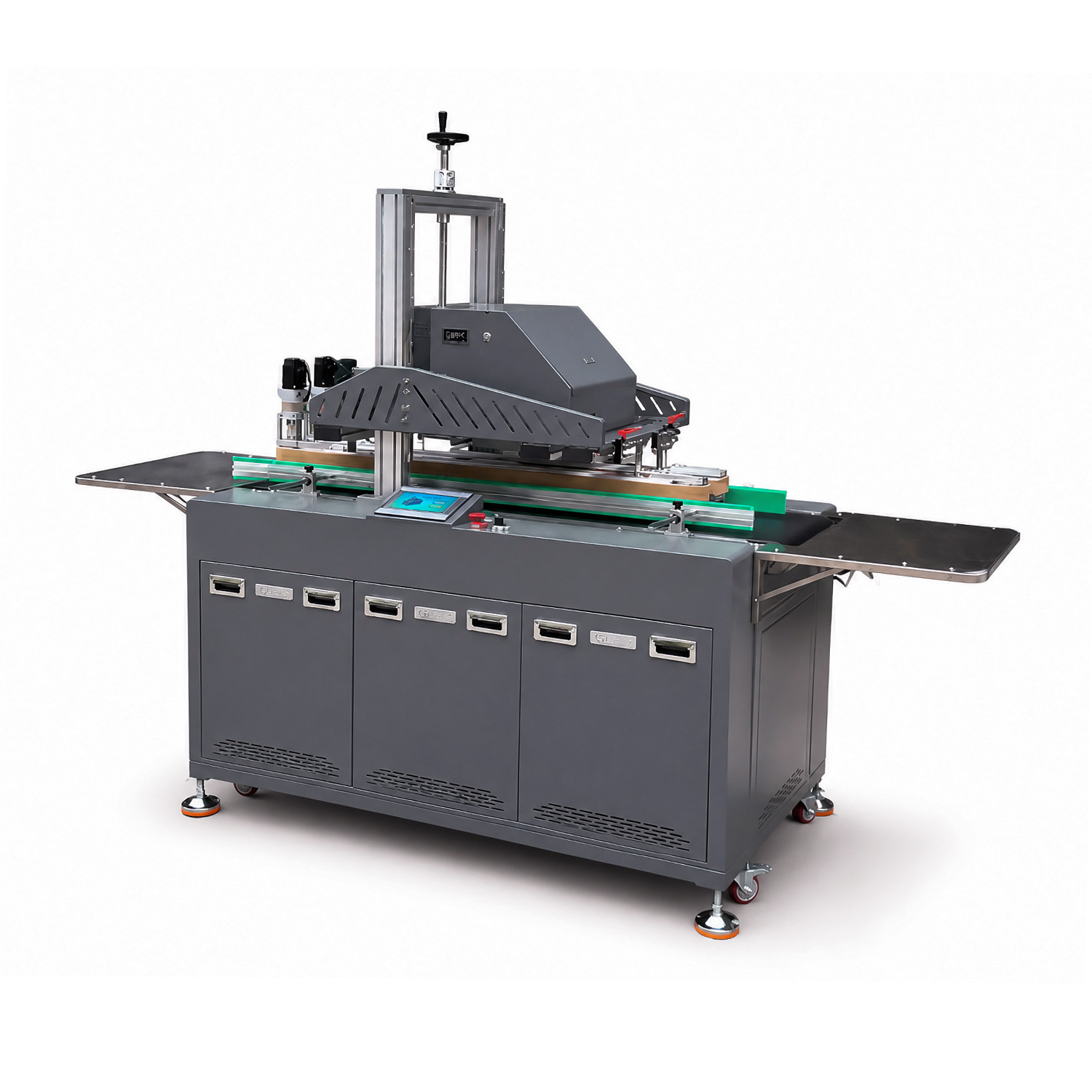

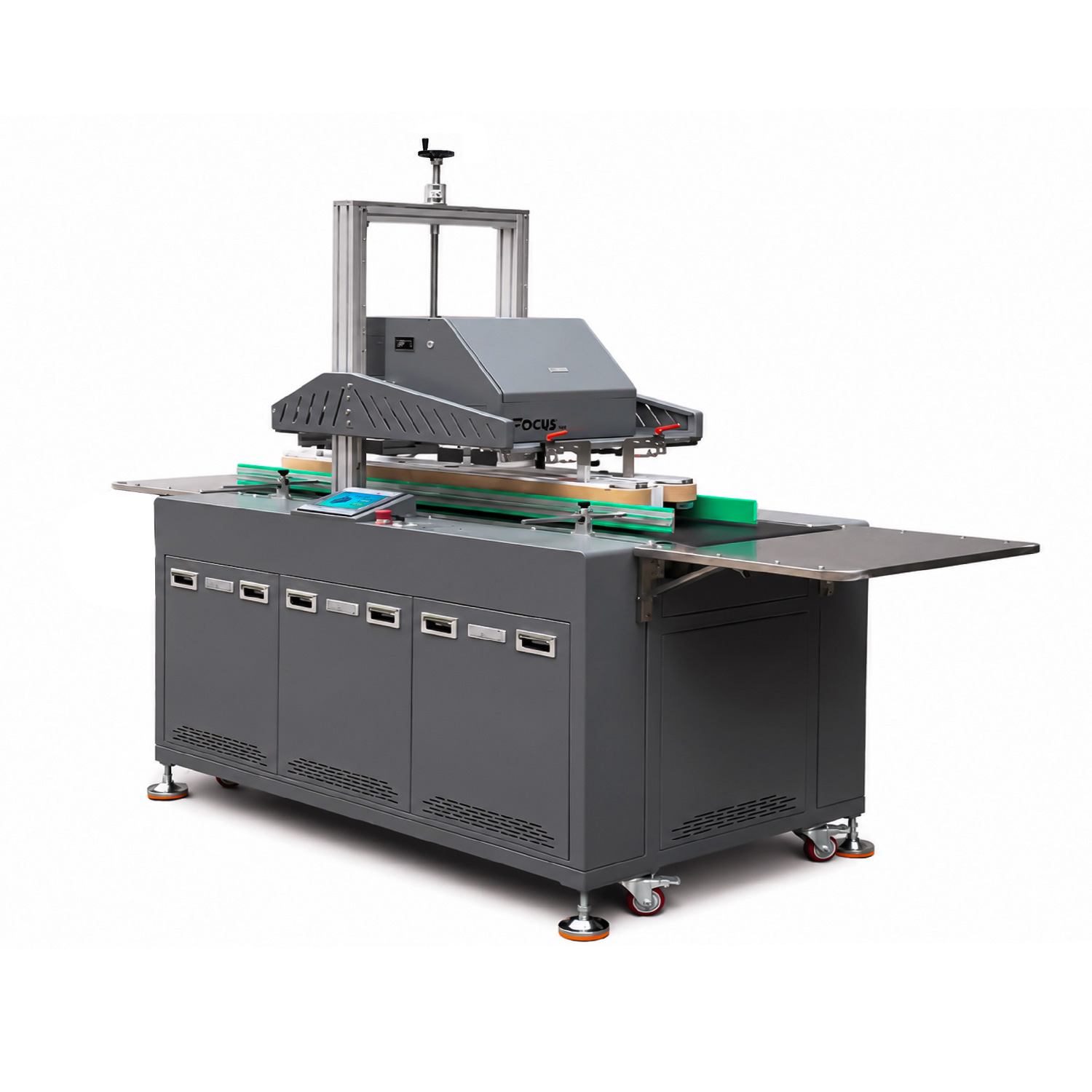

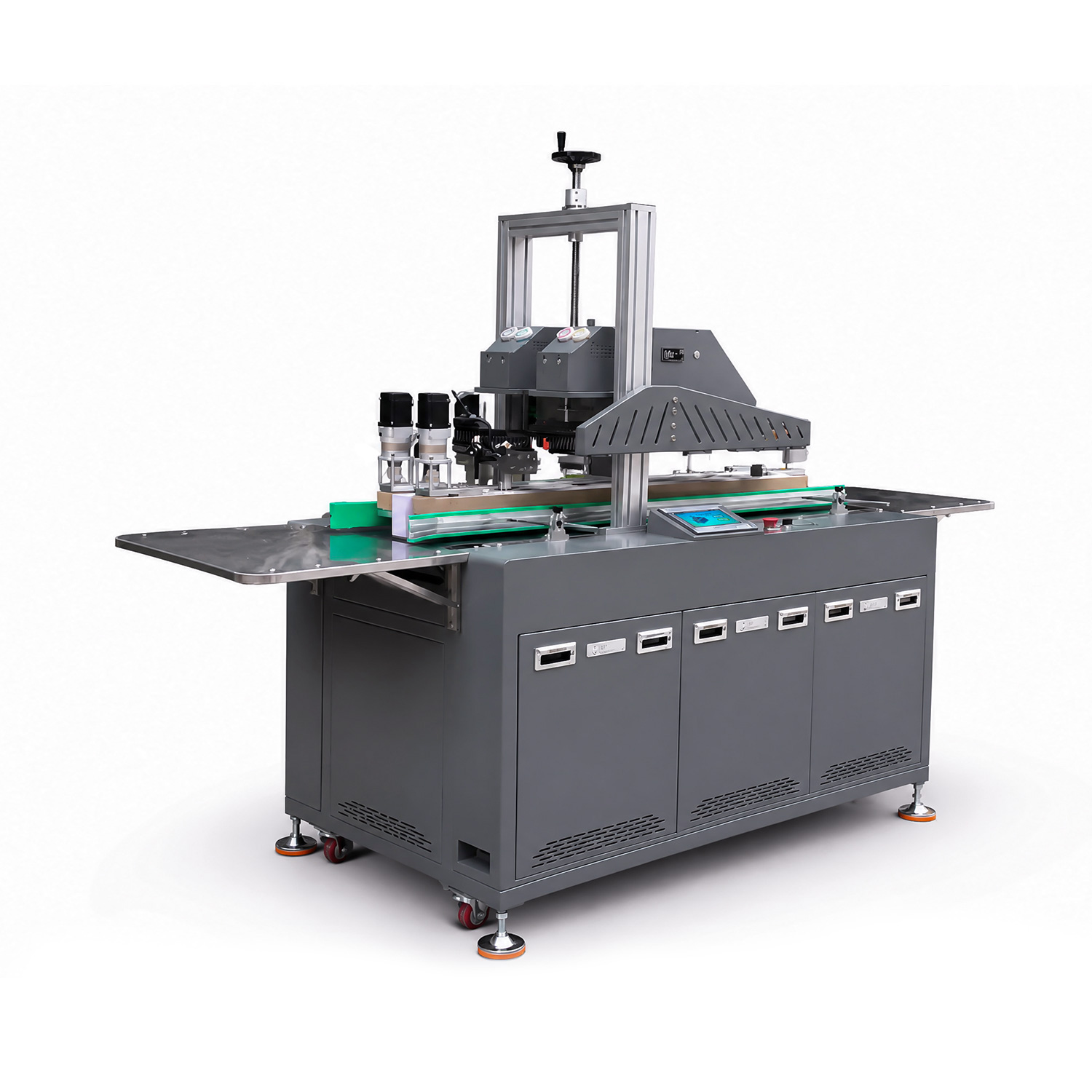

Product Image

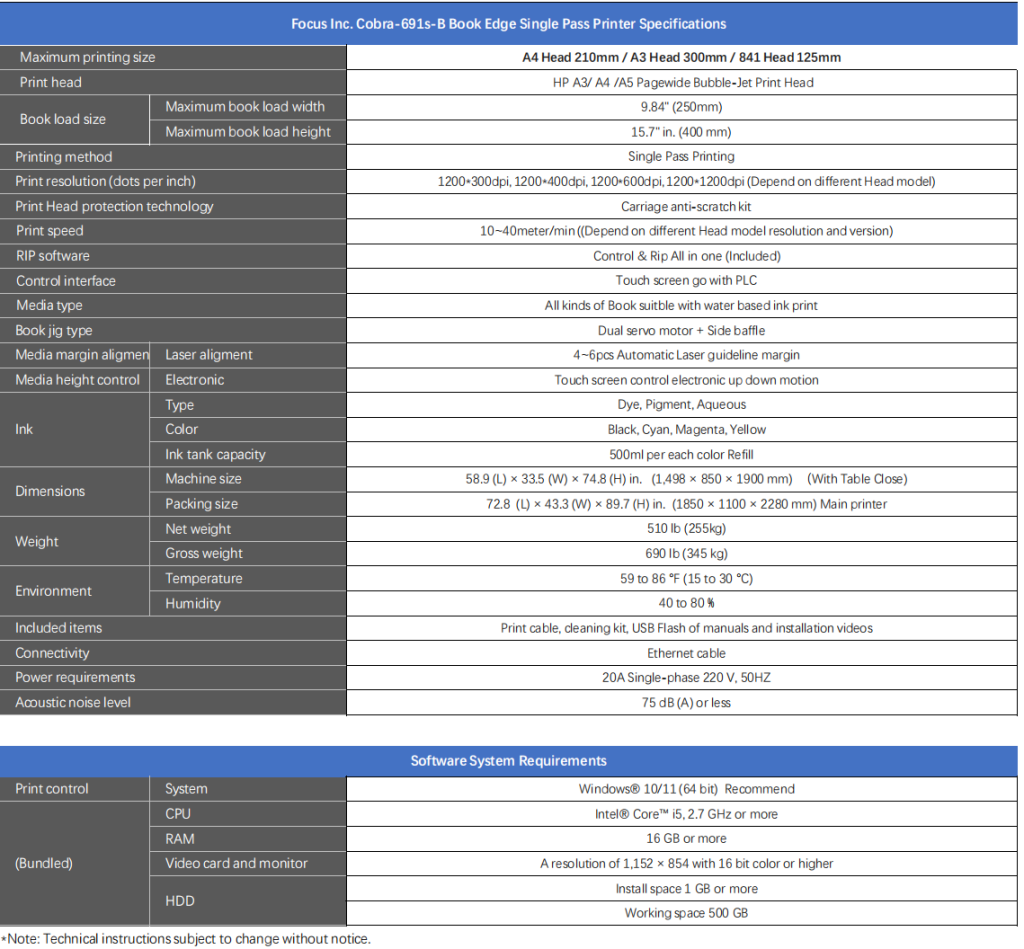

Technical Detail

Advantage1

Bottom left and right side baffles ensure material stability during ultra-tall book printing.

Advantage2

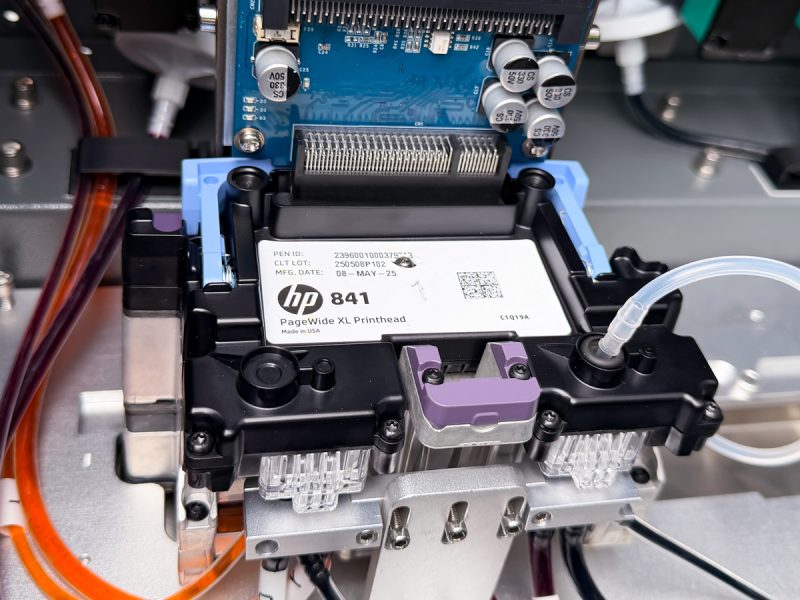

High-speed, high-precision printing can be achieved by using PAGEWIDE printing technology with different models such as HP A4, A3, and 841.

Advantage3

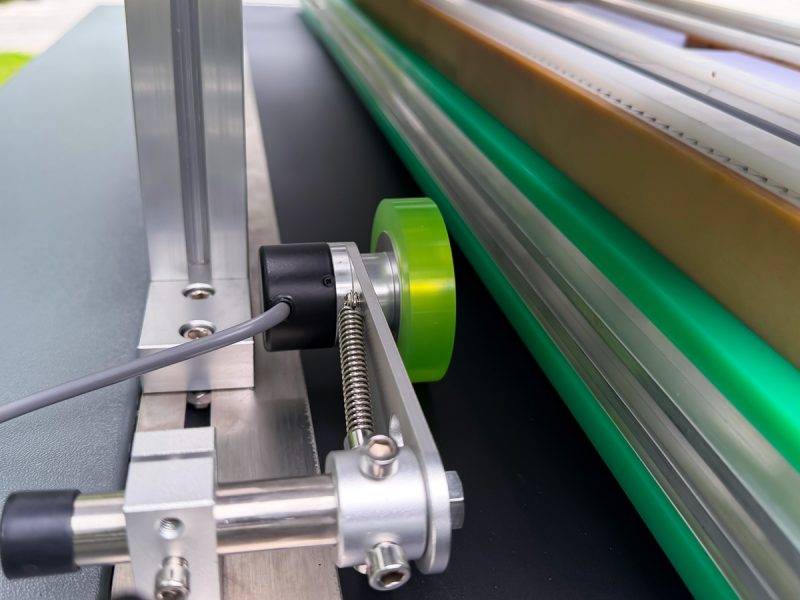

2500LPI速度传感器实时读取传送带运行速度

Advantage4

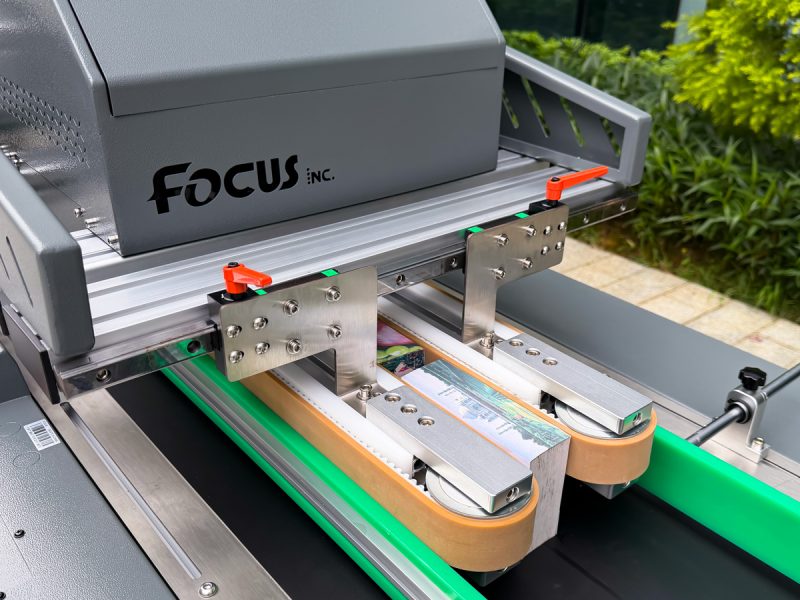

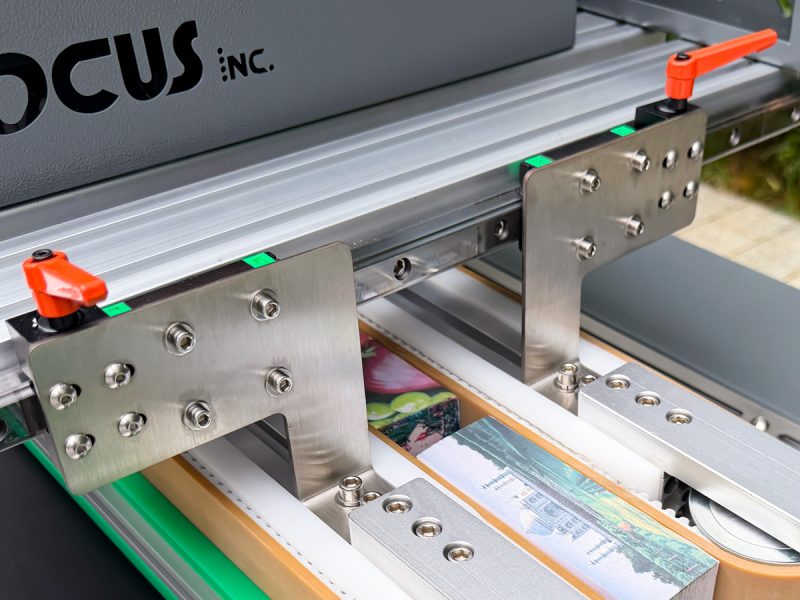

The book clamp supports adjustable left and right spacing to accommodate printing books of different thicknesses.

Advantage5

42240 ammount of high-speed inkjet nozzles: enable high-speed and high resolution printing

Advantage6

HP PageWide technology can achieve single-head 210mm wide-format printing, and can also choose single-head or dual-head configuration.

Advantage7

Single-Pass high-speed printing significantly improves printing productivity.

Advantage8

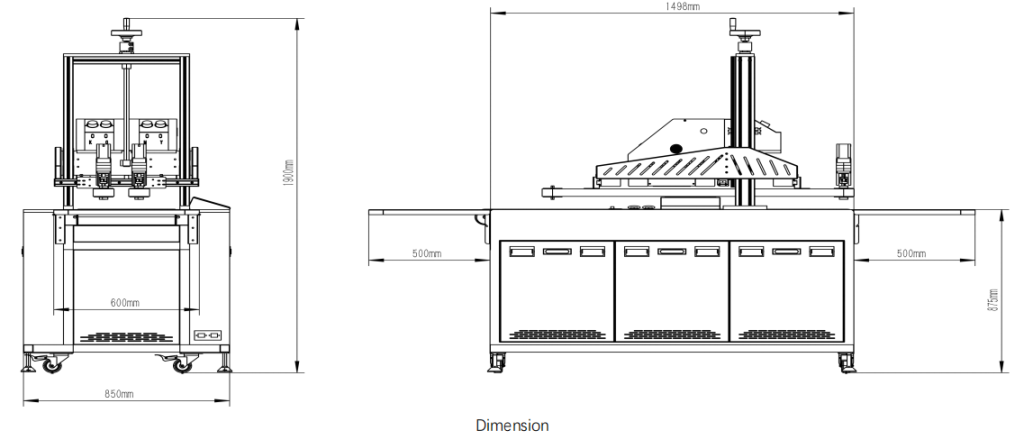

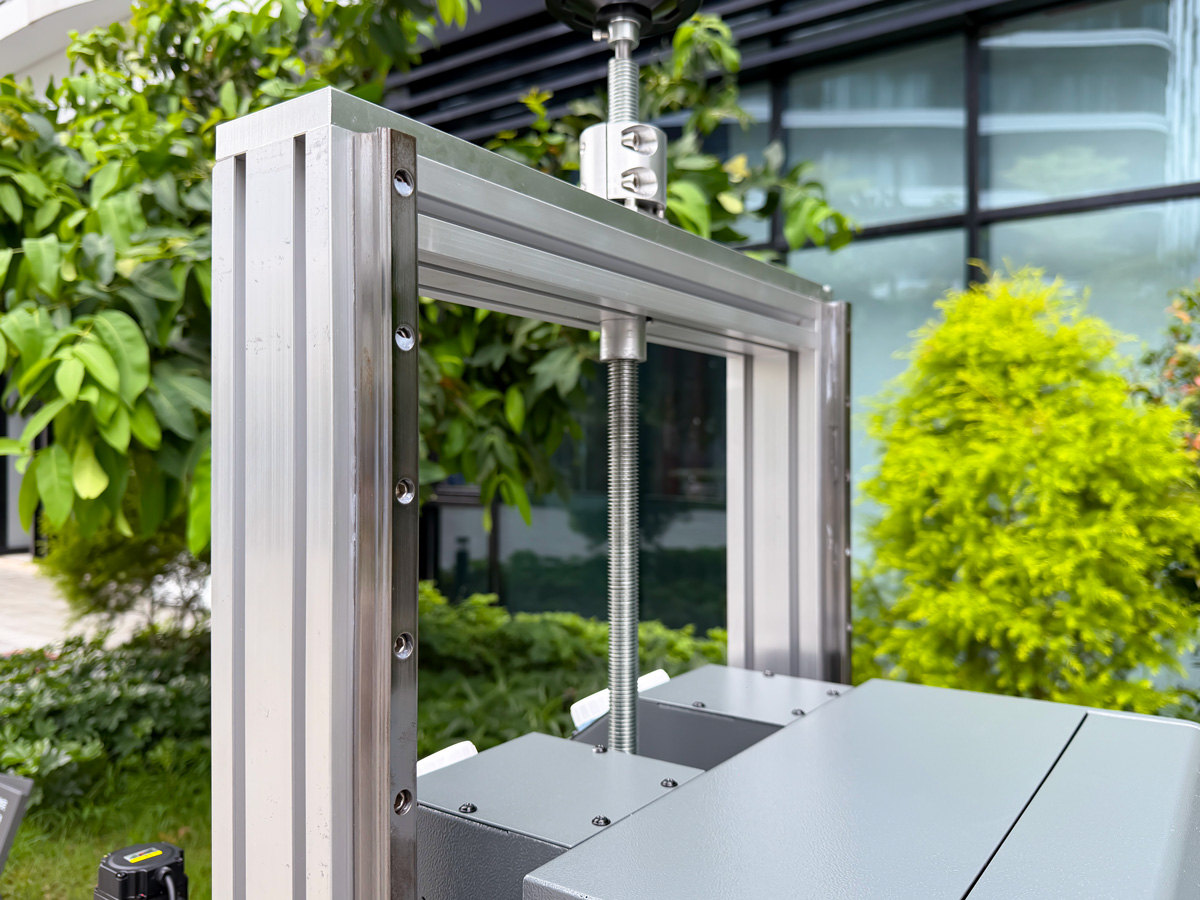

The printhead lift design ensures printing at book edges of up to 400mm in height.

Advantage9

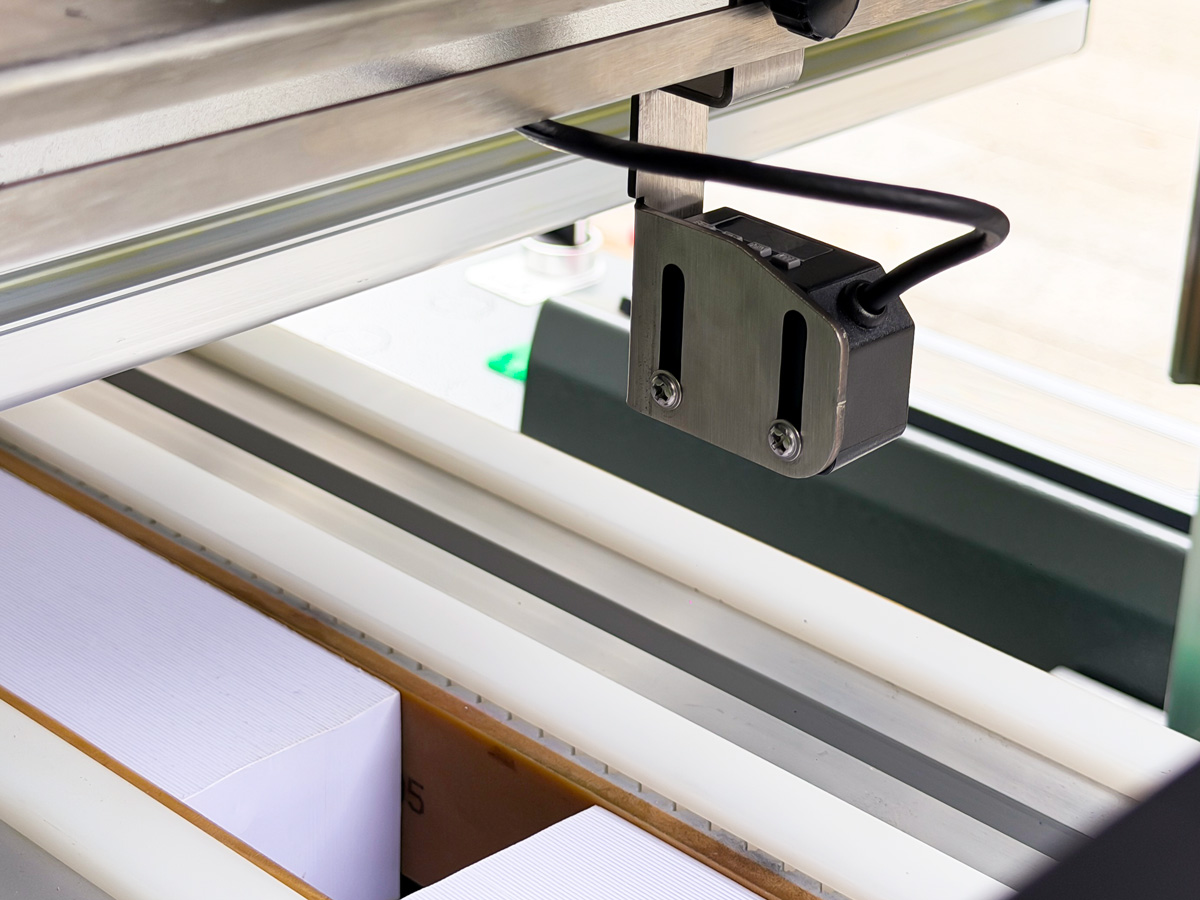

A high-sensitivity laser feed sensor detects the book's printing position in real time, enabling personalized printing of different patterns at different speeds.

Advantage 10

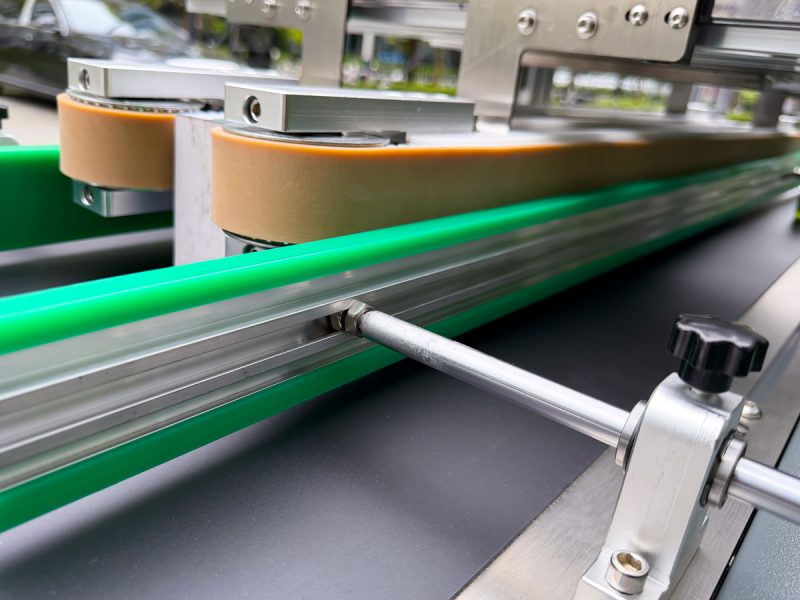

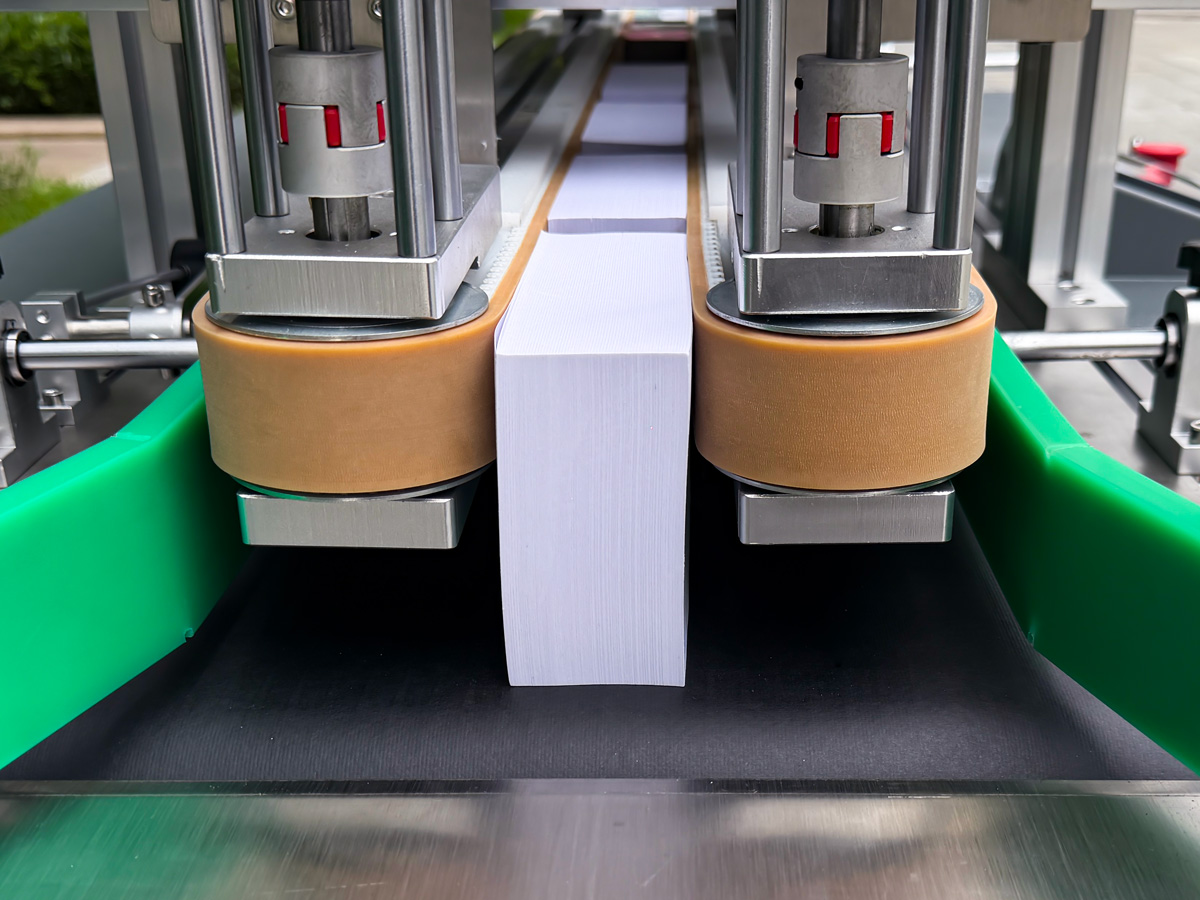

Two high-quality friction belts on the left and right prevent the book from slipping, enabling high-precision operation.

Advantage11

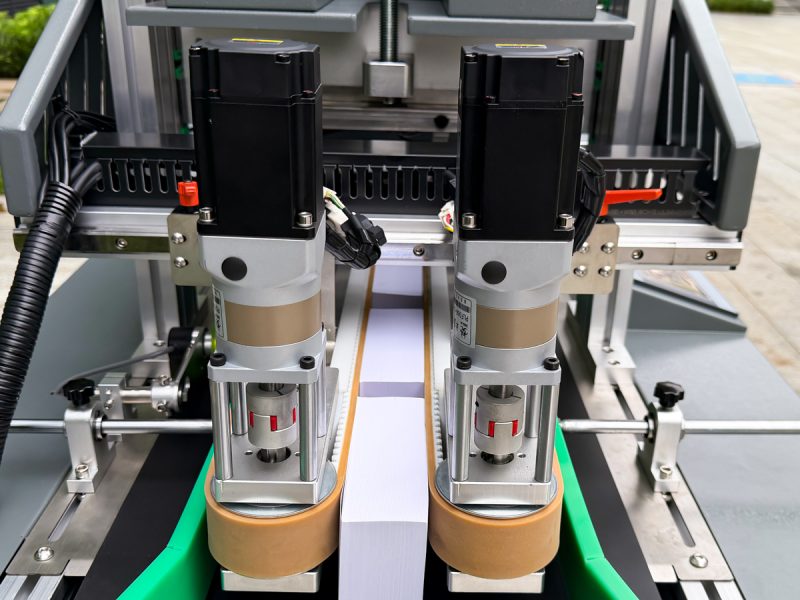

The dual servo synchronous gripper motor design ensures smooth book handling.

Advantage12

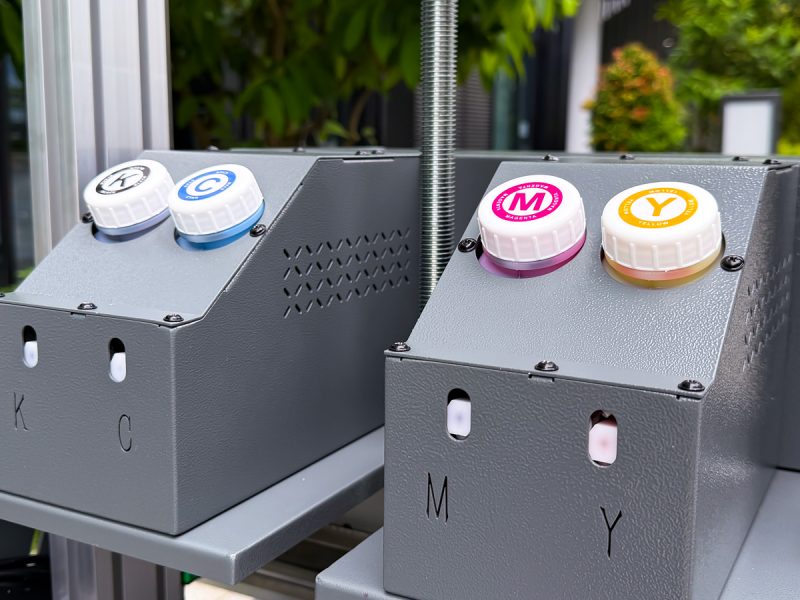

KCMY four-color refillable ink cartridges significantly reduce printing costs.

Advantage13

The fast snap-in ink stack effectively maintains the print head to prevent clogging

Advantage 14

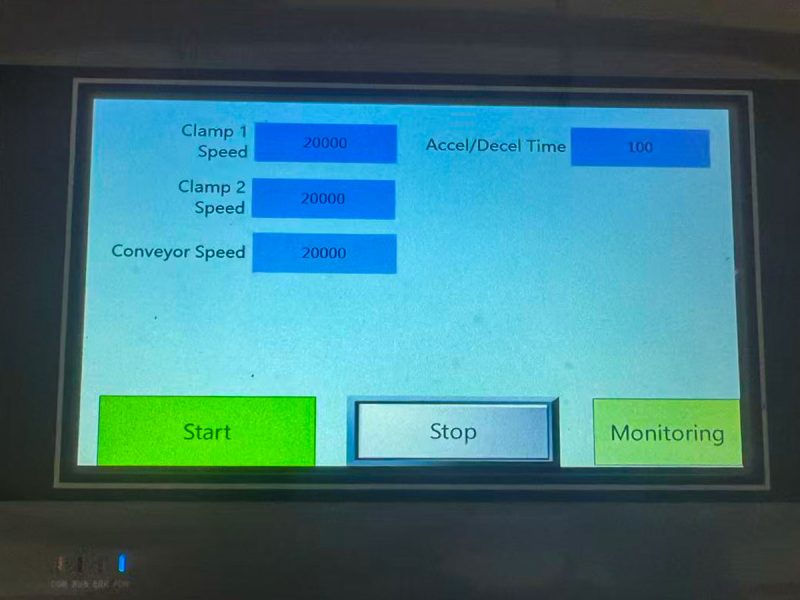

High-definition touch screen facilitates equipment operation and maintenance

Customer feedback

Customer feedback1

Customer feedback2

Customer feedback3

Customer feedback4

Customer feedback5

Customer feedback6

Production Line

https://youtu.be/xhinukhU_hA

See how Focus Cobra-691S show on 2023 Shanghai APPP expo…https://www.focusincprinter.com/news/shanghai-appp-expo-in-june2023/

FAQ
