Product description

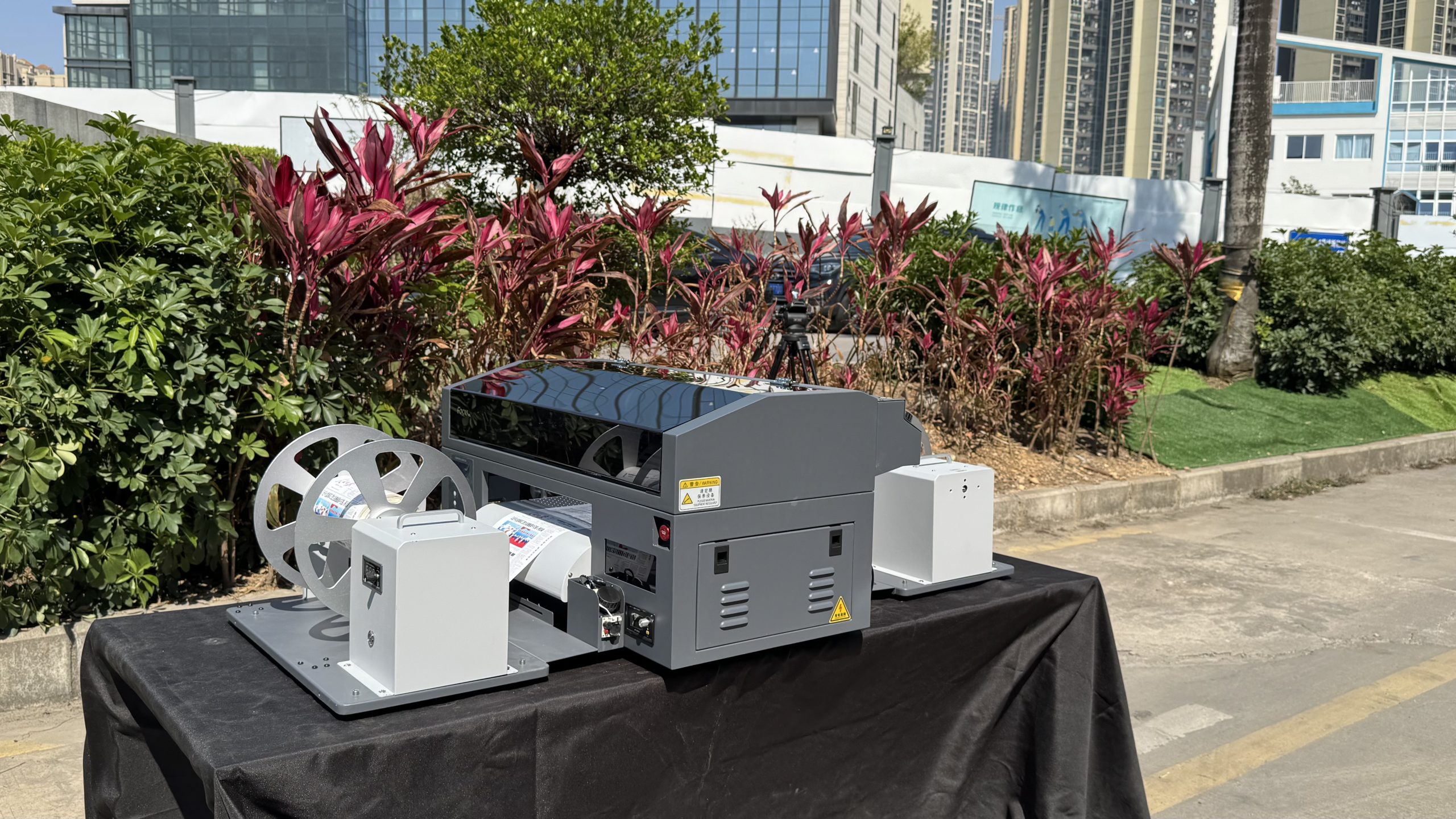

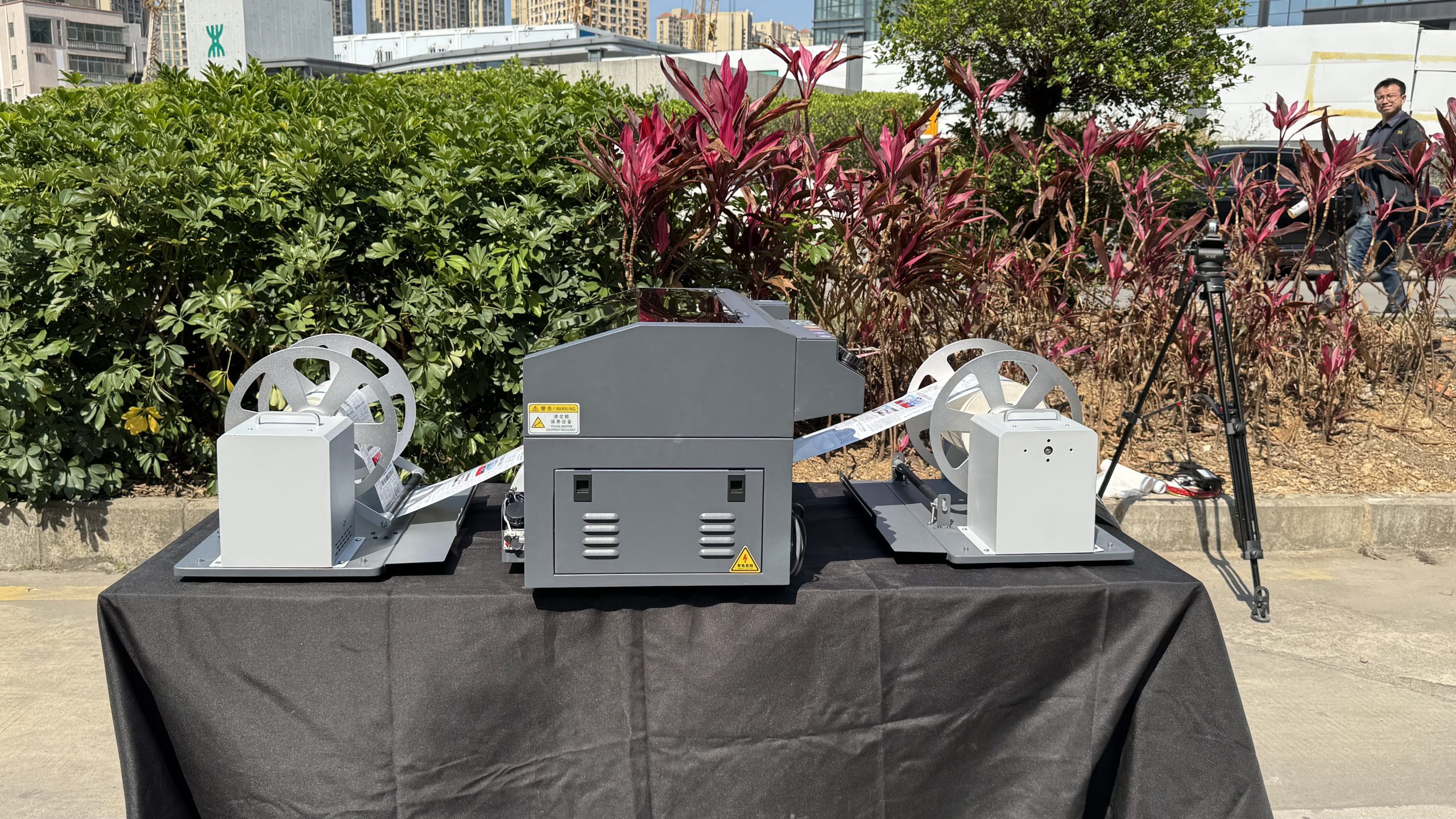

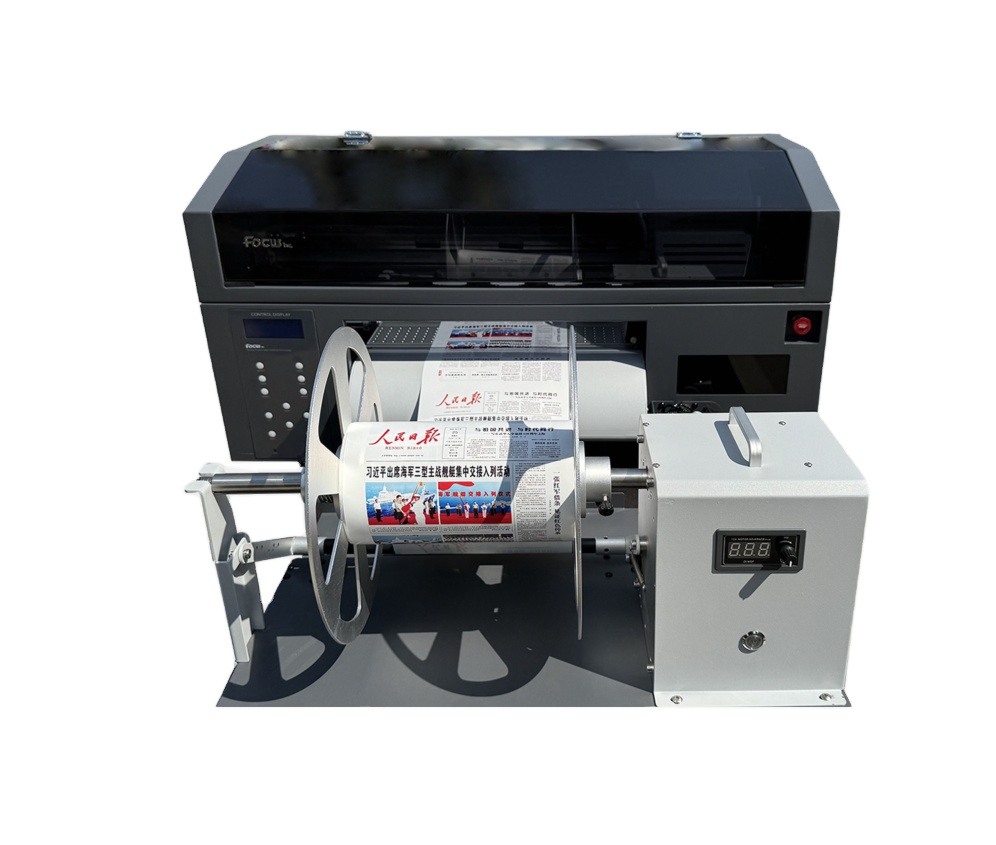

FocusInc VESA-830A is a UV roll to roll label printer for printing on all kinds of labels. Iis designed to deliver high-resolution, full-color printing on a wide range of materials. Ideal for small to medium production runs, this versatile printer supports custom label creation with excellent adhesion, durability, and vibrant color performance. With its user-friendly interface and efficient printing process, it is the perfect solution for businesses seeking cost-effective, on-demand label printing.

Printing Media：

Roll type Film, paper, Canvas, leather
Plastic type media: PE, PP,PET,PVC label or film,
Inkjet-Coated Paper and Synthetics (BOPP, Vinyl, PET); Glossy, Matt
Non-coated paper
Other FocusInc, approved media

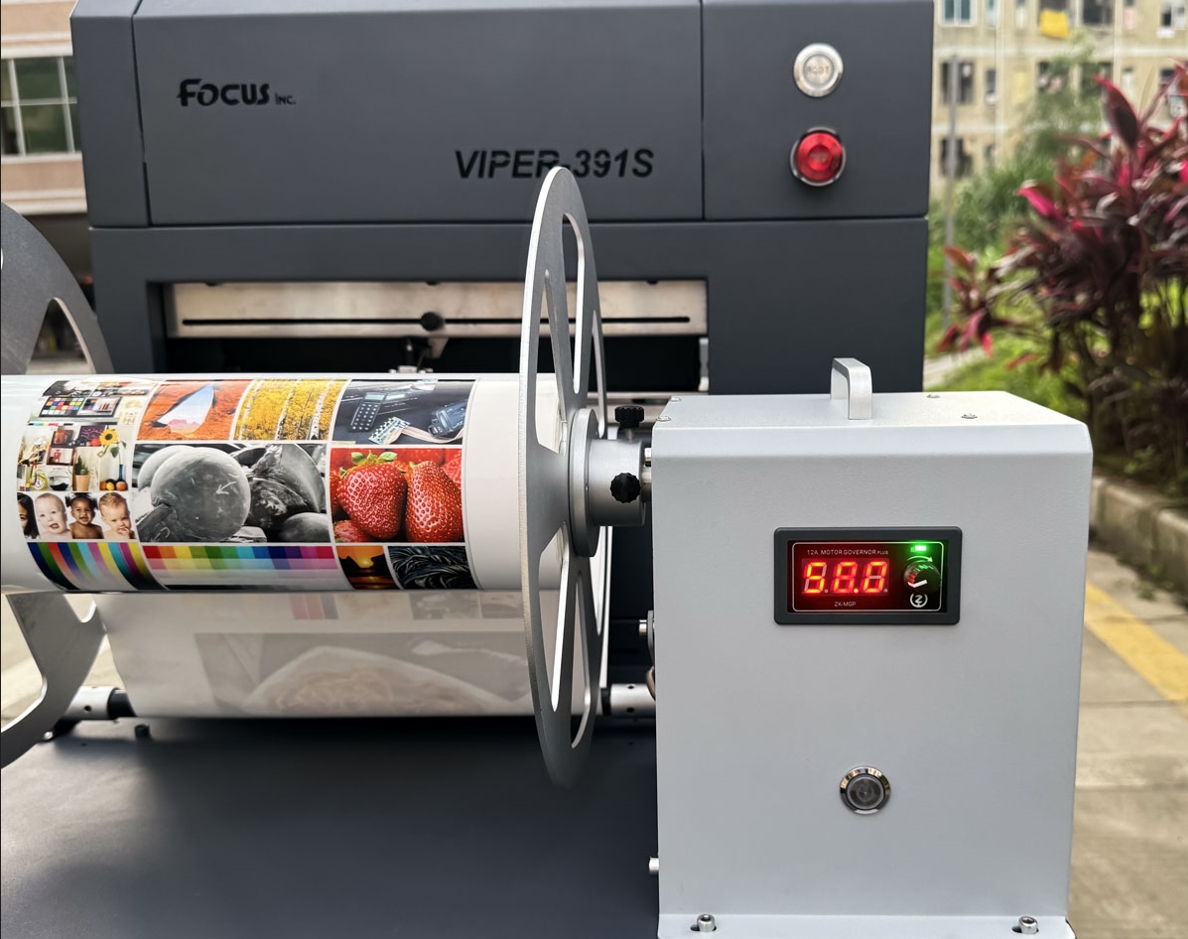

Focus VESA-830A go with Focus CR-391 Roll to Roll label die cutting waste removal machine

Please Click here fore more information about Focus CR-391S Roll to Roll label die cutting machine

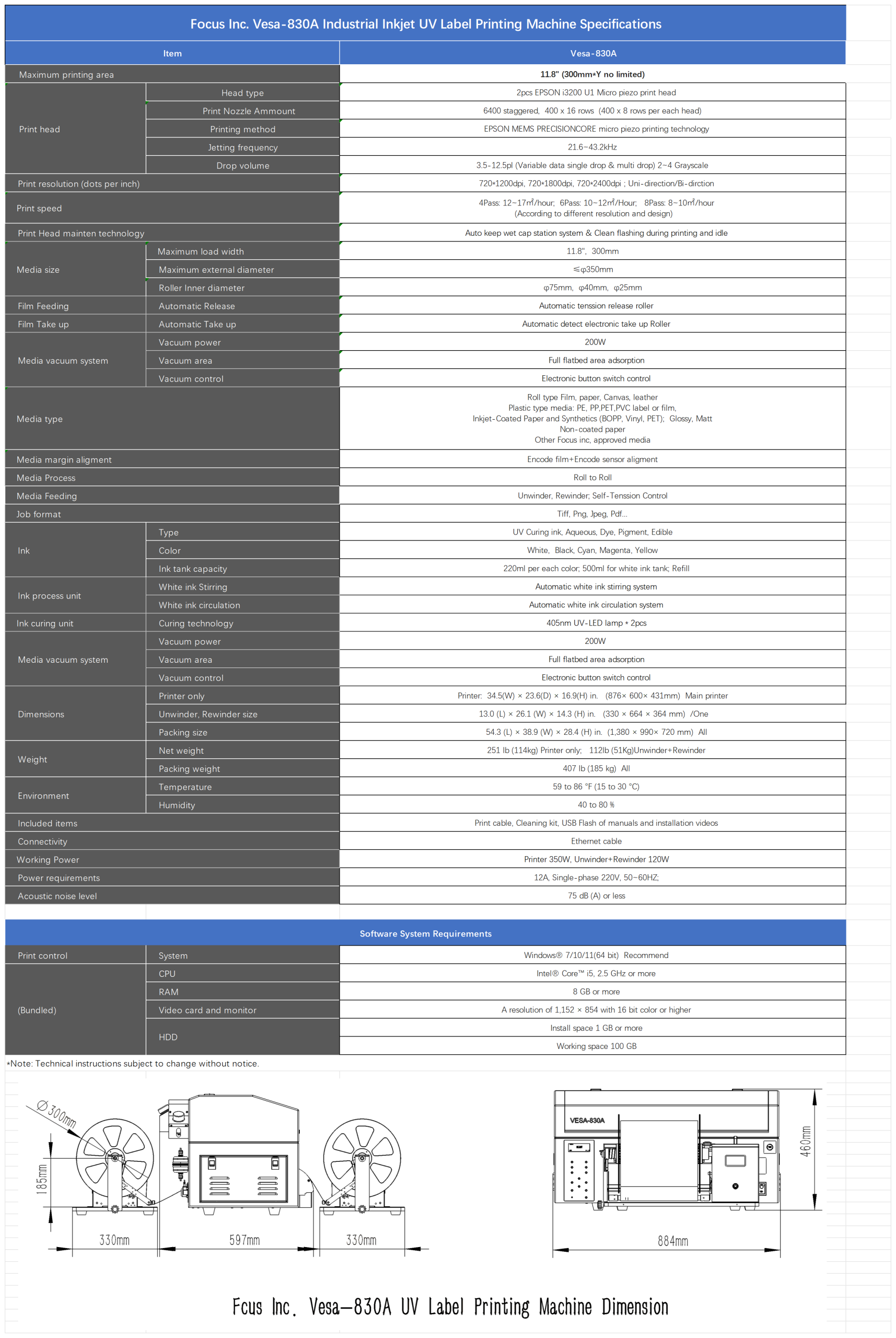

Specification

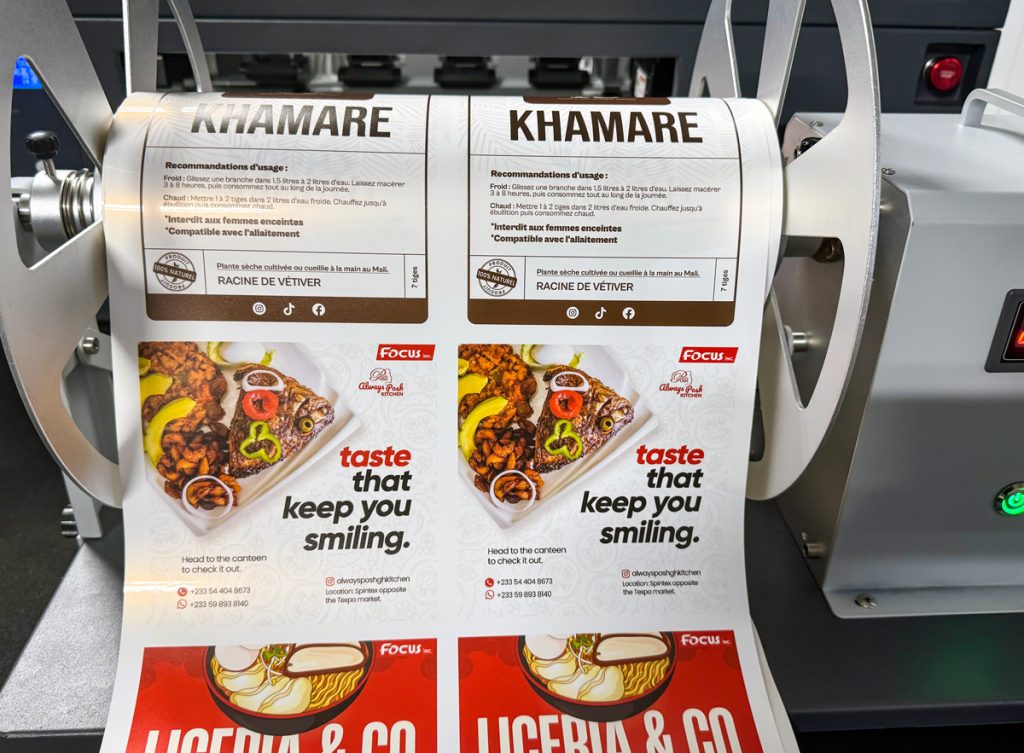

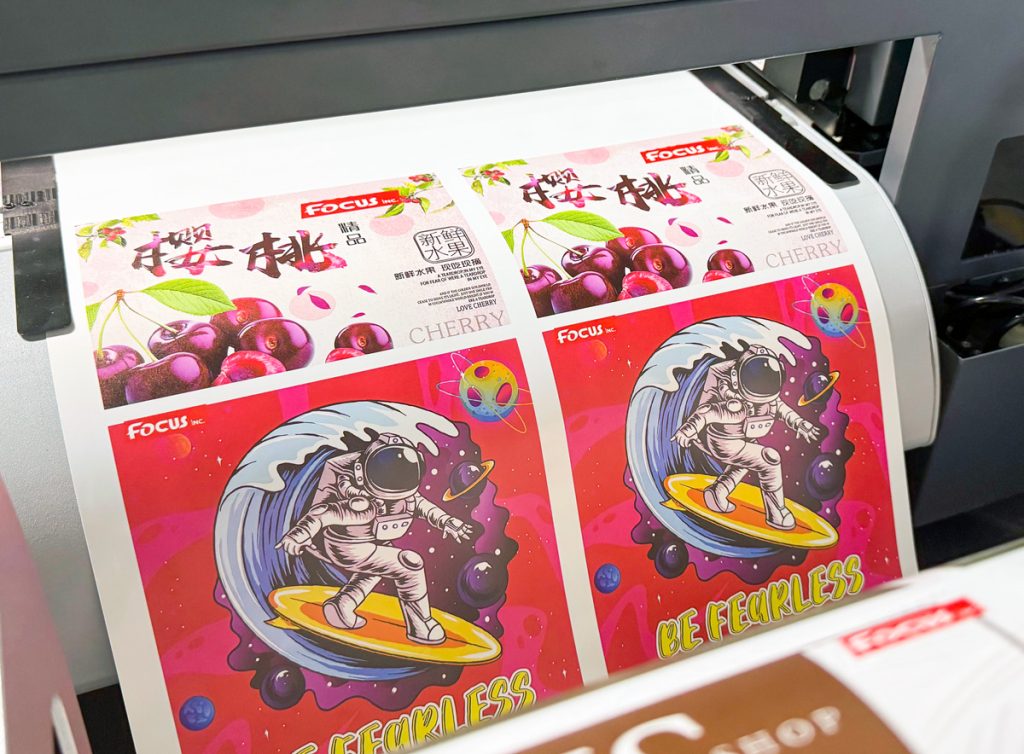

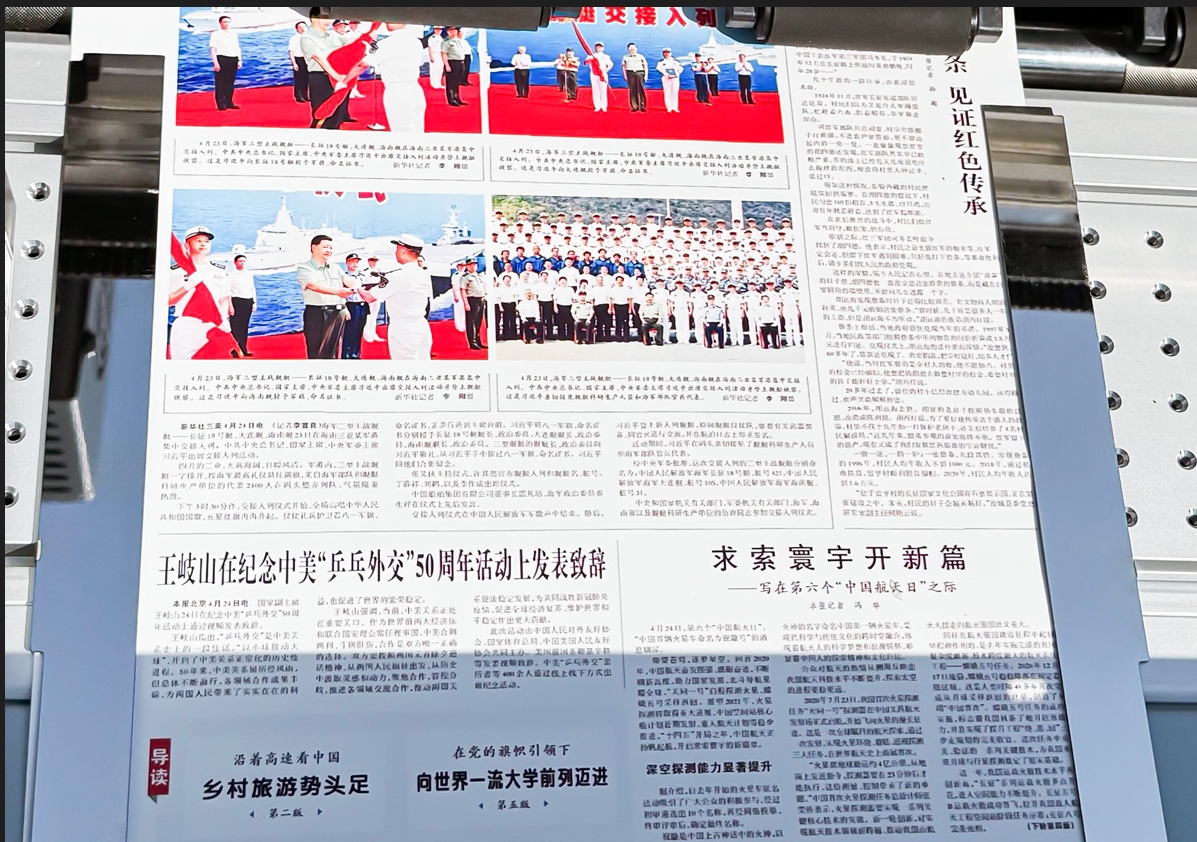

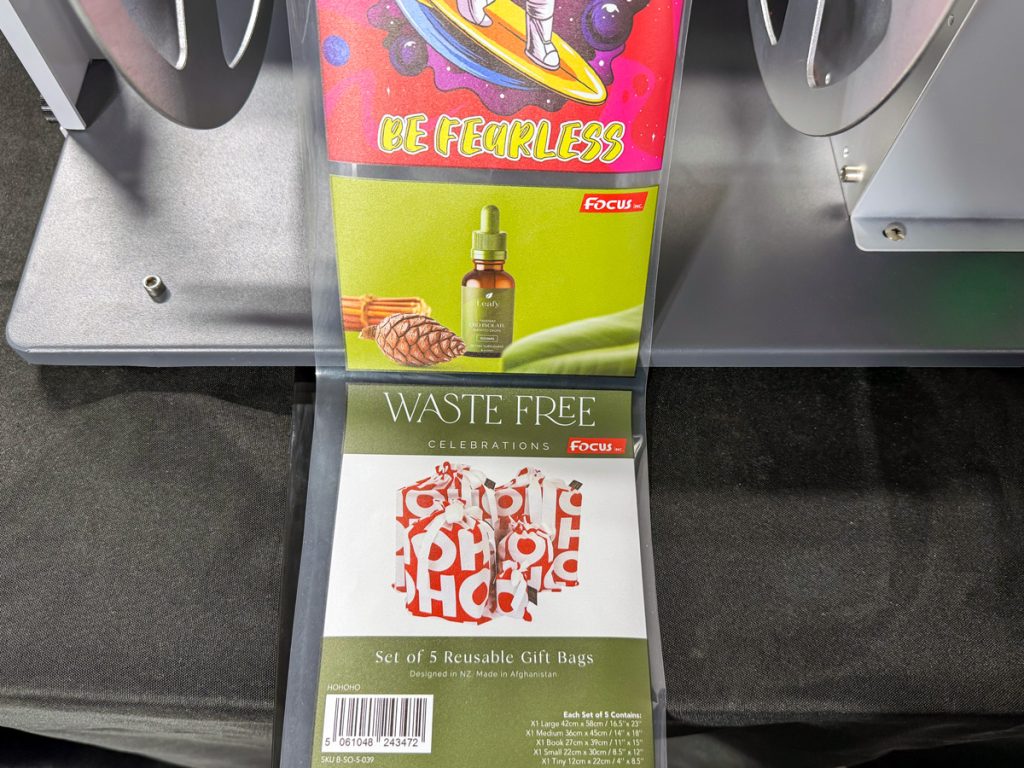

Printing Sample

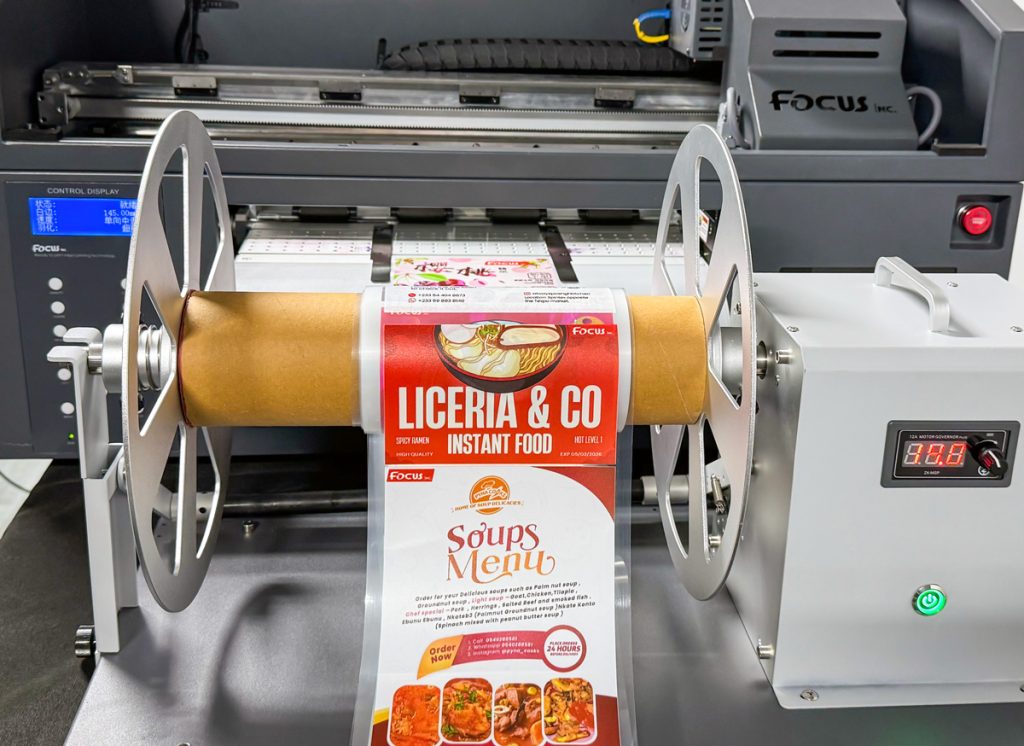

VESA-830A is designed to print high-quality, durable labels on a variety of materials. It supports printing on a wide range of label types including adhesive, waterproof, scratch-resistant, and UV-resistant labels, making it ideal for both indoor and outdoor applications.

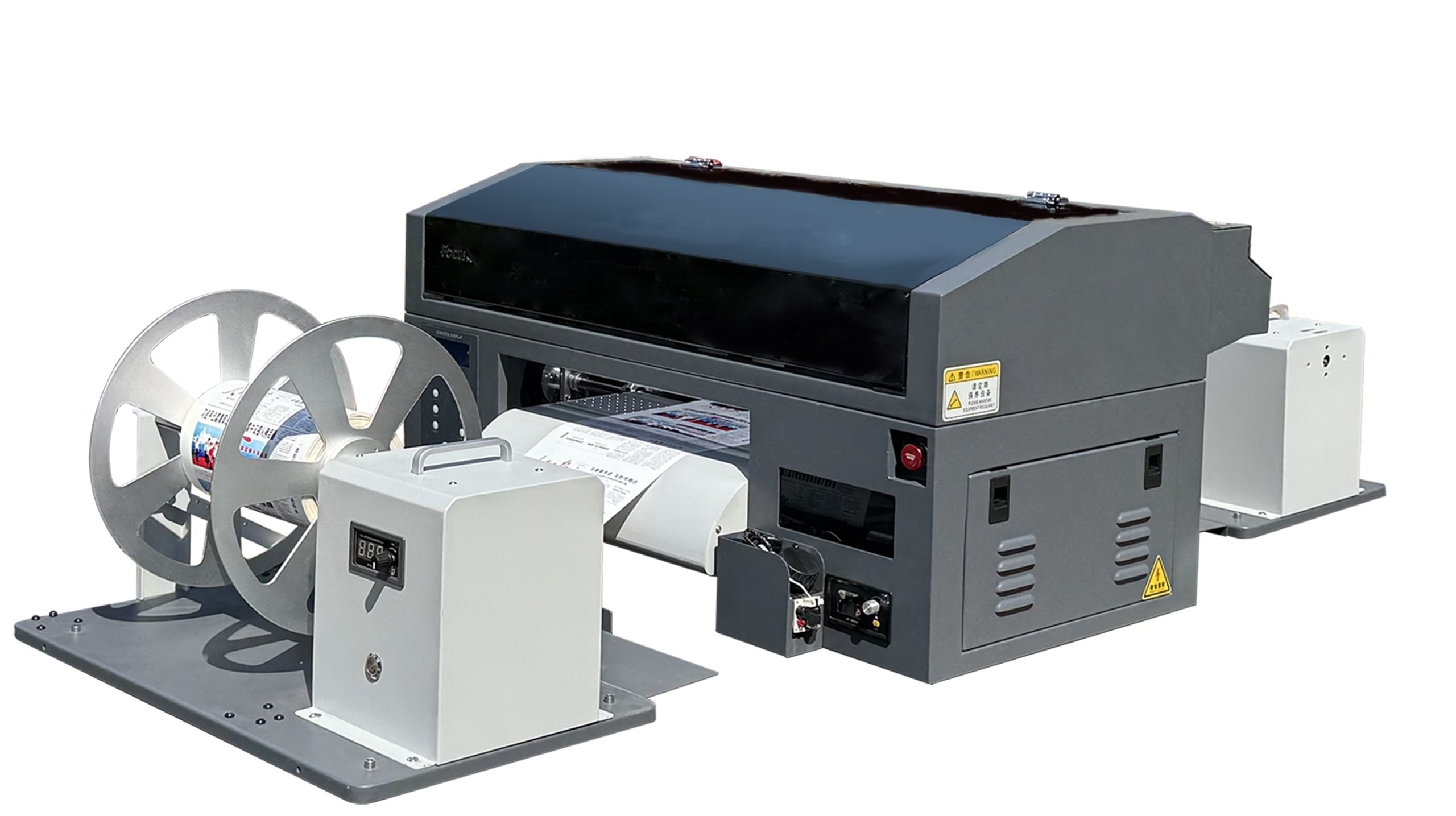

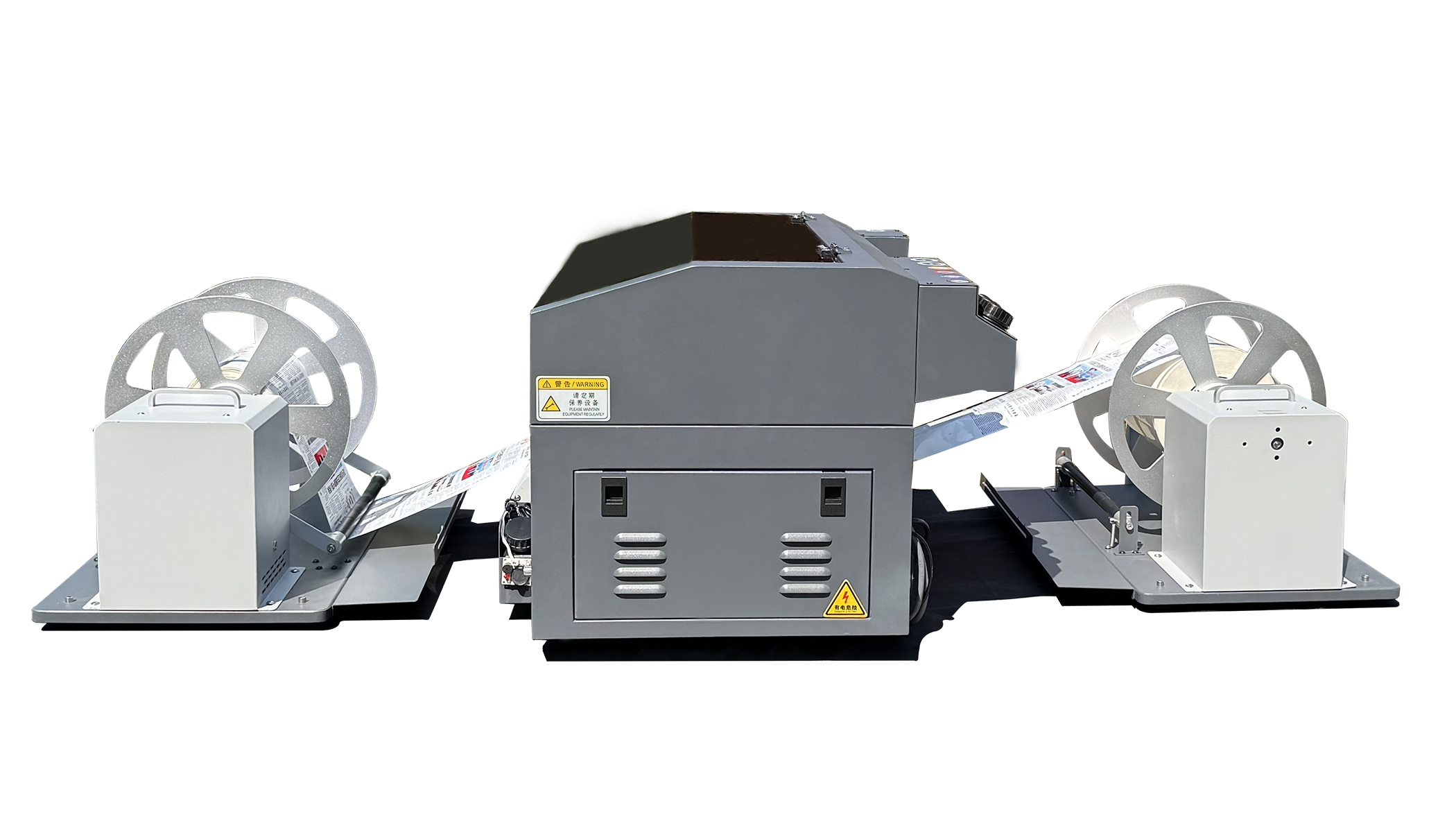

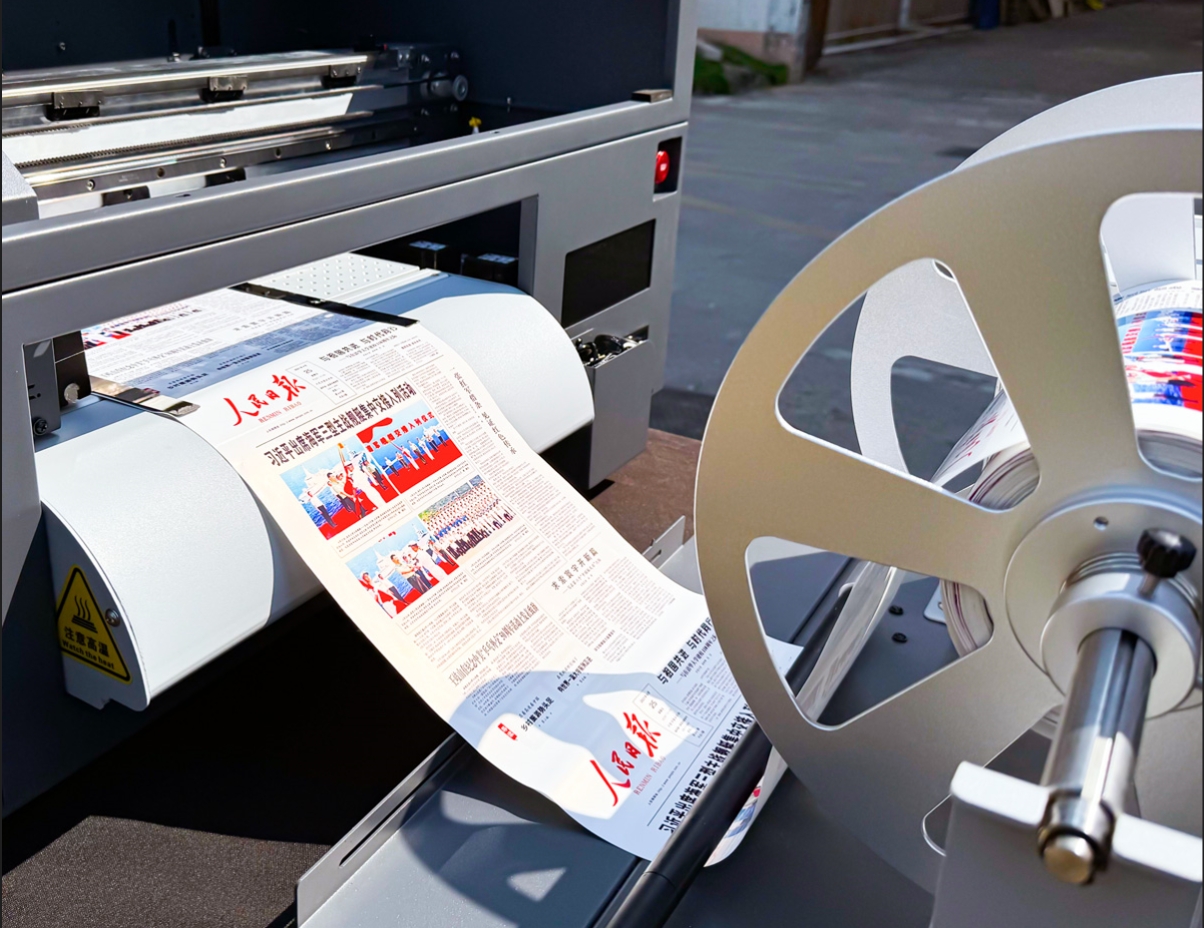

Product Image

Technical Detail

Advantage1

LED UV real-time curing printing technology can achieve high-precision printing on different materials such as uncoated materials, dark materials and plastic materials such as PP, POPP, PE, PET, PVC, et

Advantage2

Maximum 300mm printing width is compatible with different width material printing

Advantage3

Support White with KCMY print same time to entend the print media as transparent or dark film media

Advantage4

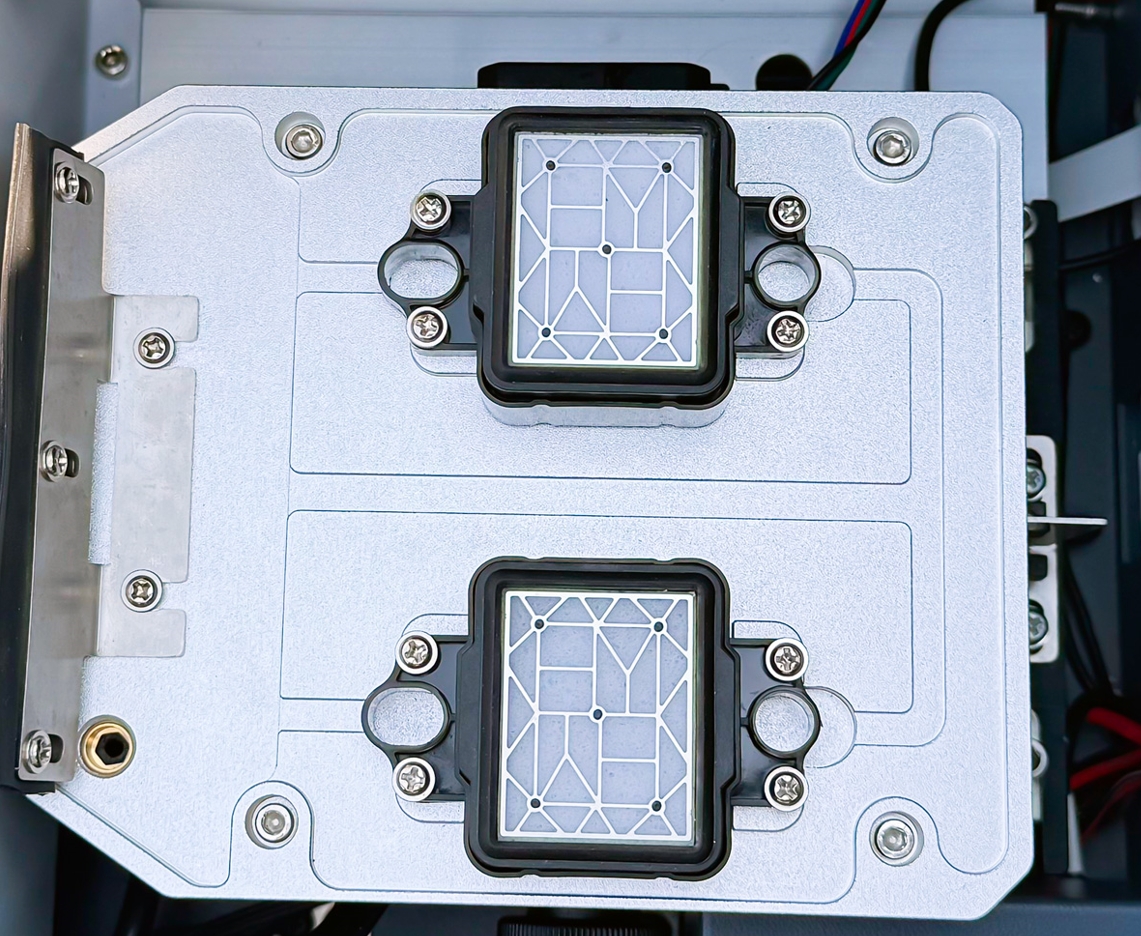

The automatic lifting type cap station design makes the head cleaning and moisturizing more smooth and efficient-

Advantage5

The built-in material tension automatic adjustment function allows the material to be fed smoothly and positioned accurately

Advantage6

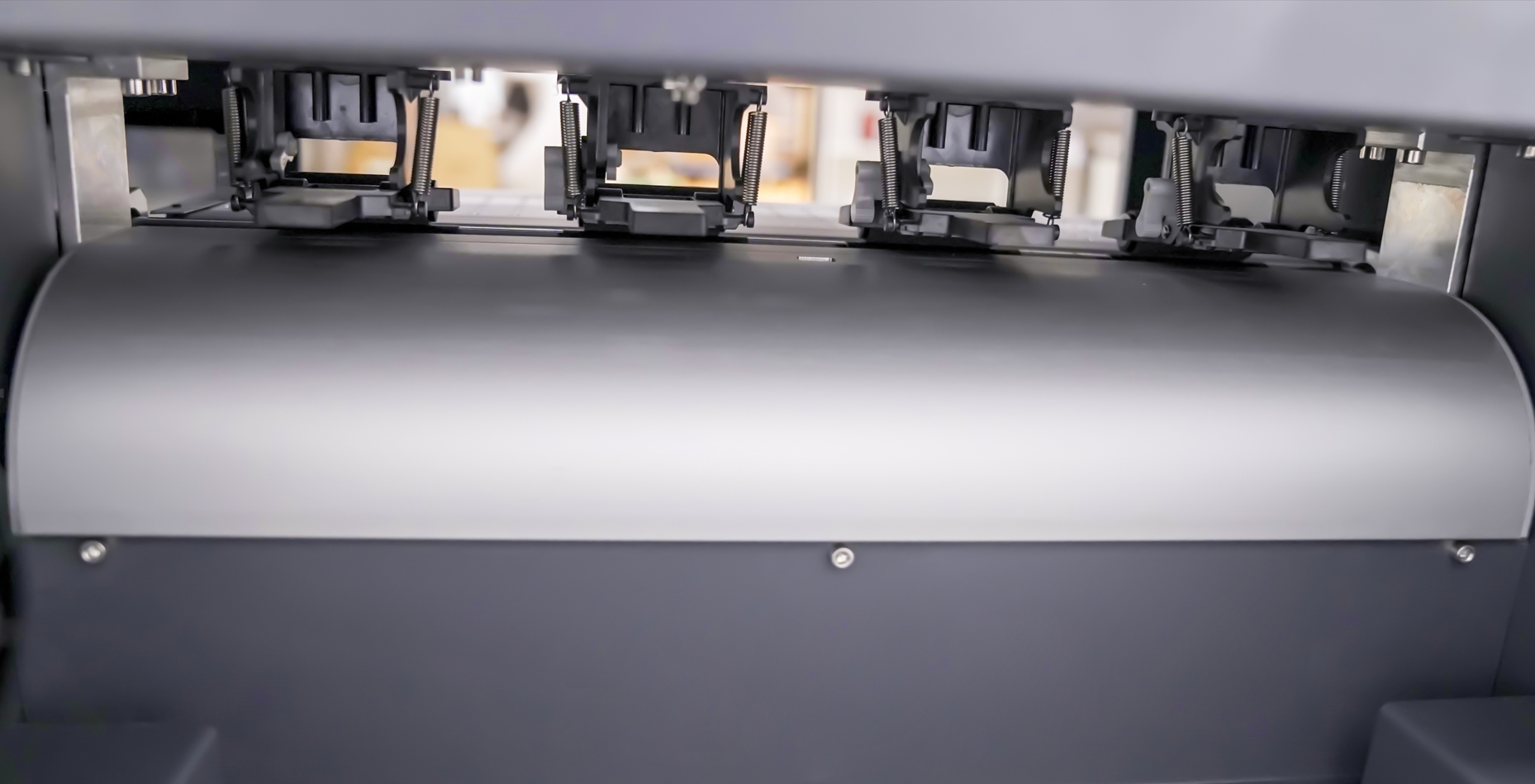

The movable paper pinch sheet can prevent the material from arching during printing, thus effectively protecting the printhead

Advantage7

The pre-printing heating function can greatly improve the ink's firmness and scratch resistance on the material

Advantage8

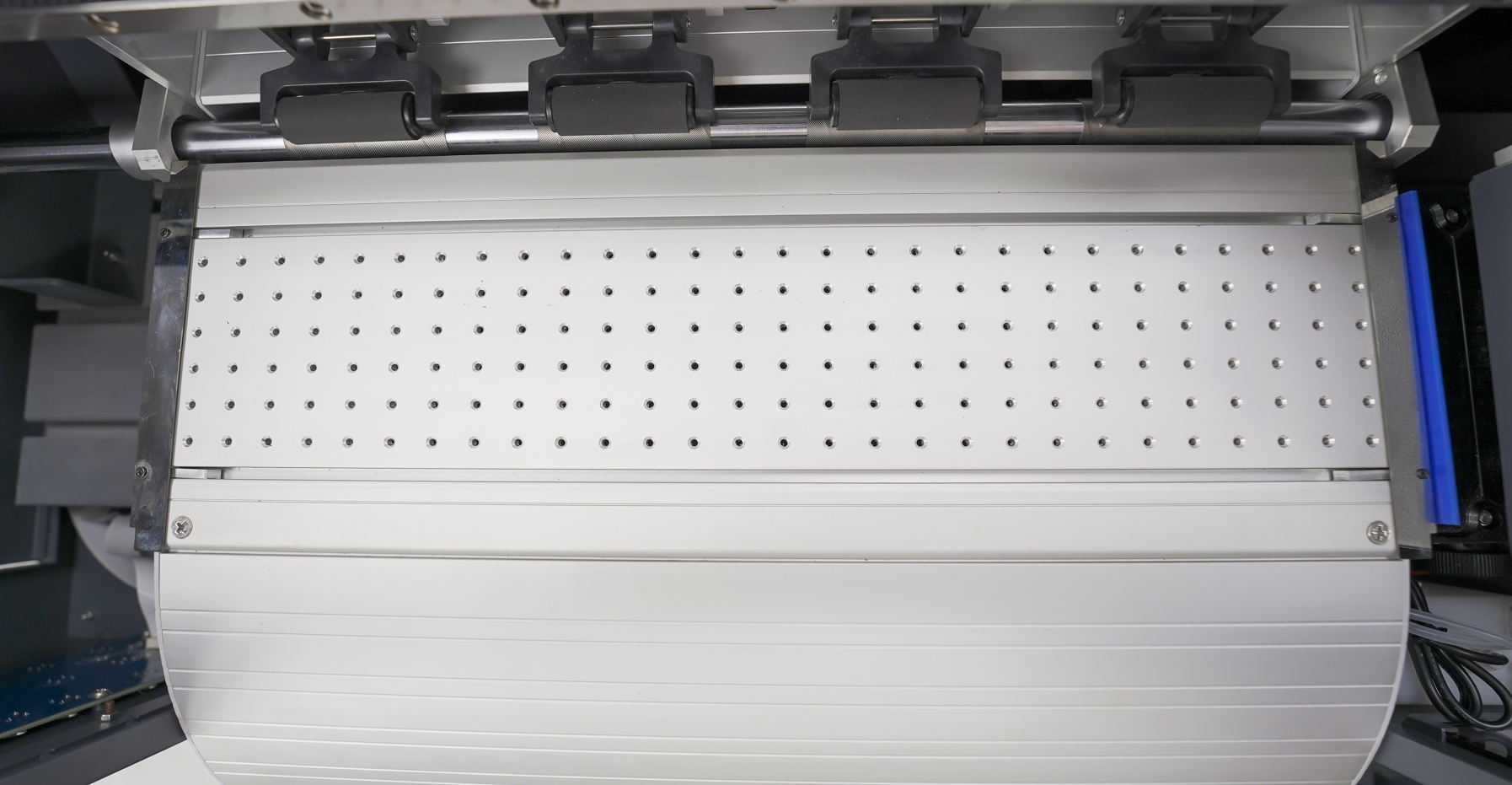

The suction adjustable vacuum adsorption function can prevent the printing film bending from scraping the print heads.

Advantage9

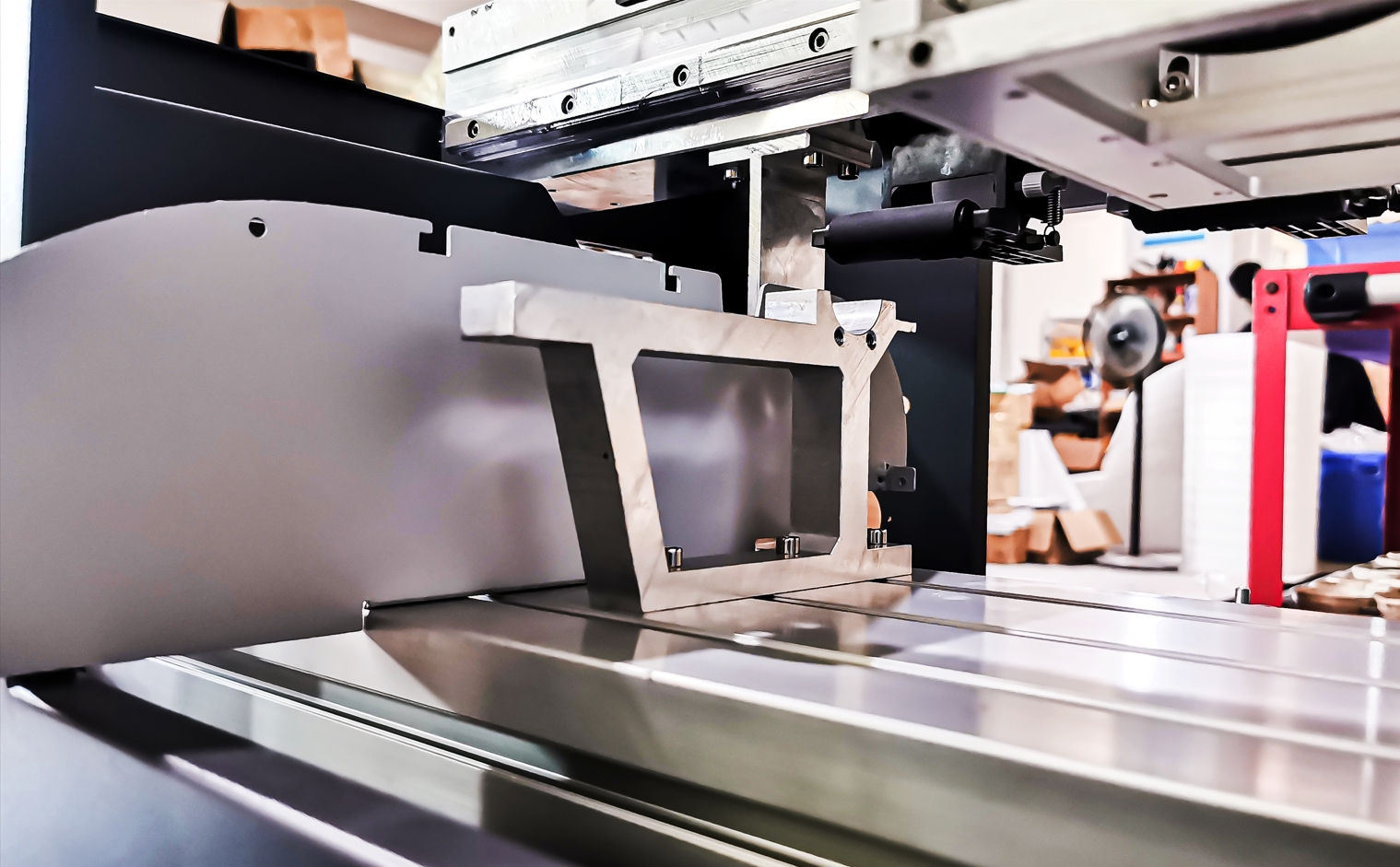

All keel made from high quality Pressure casting aluminum to ensure the high speed stable printing

Advantage10

Configed with 2 pcs EPSON i3200 industrial printheads with 9600 nozzle achieve 3.8PL ink droplet under 43.2KHZ high-speed grayscale printing

Advantage11

Configured with FOCUS INC. WIPCS white ink stirring system to prevent white ink precipitation and thus prevent nozzle clogging

Advantage12

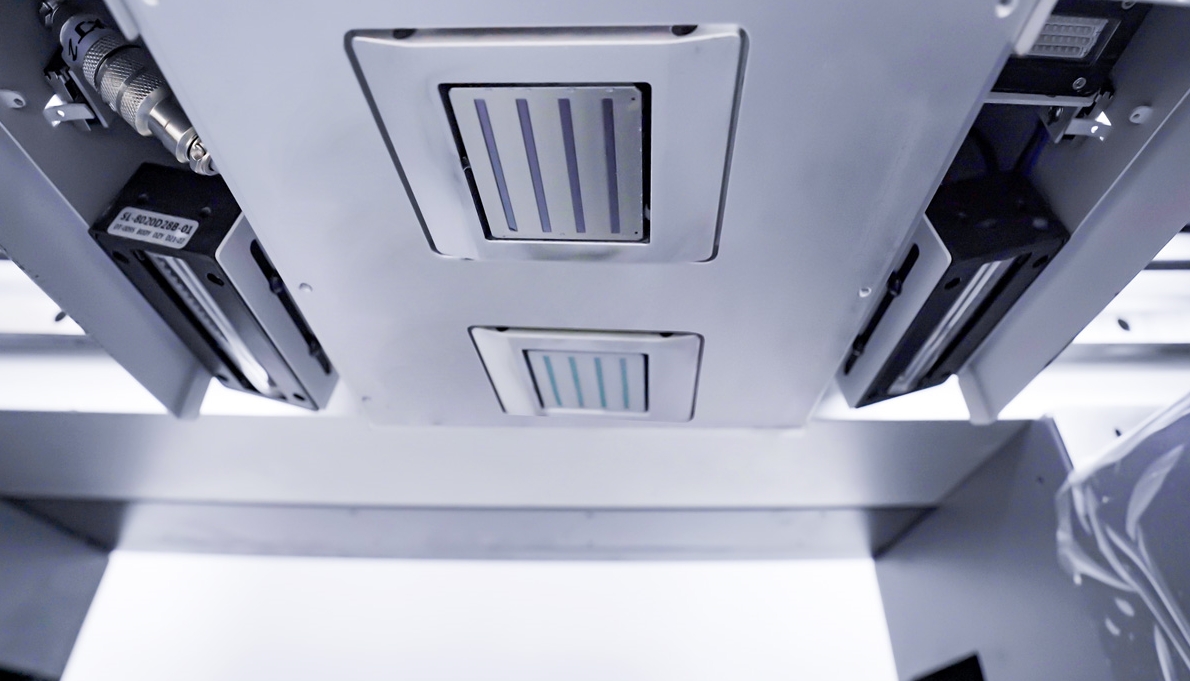

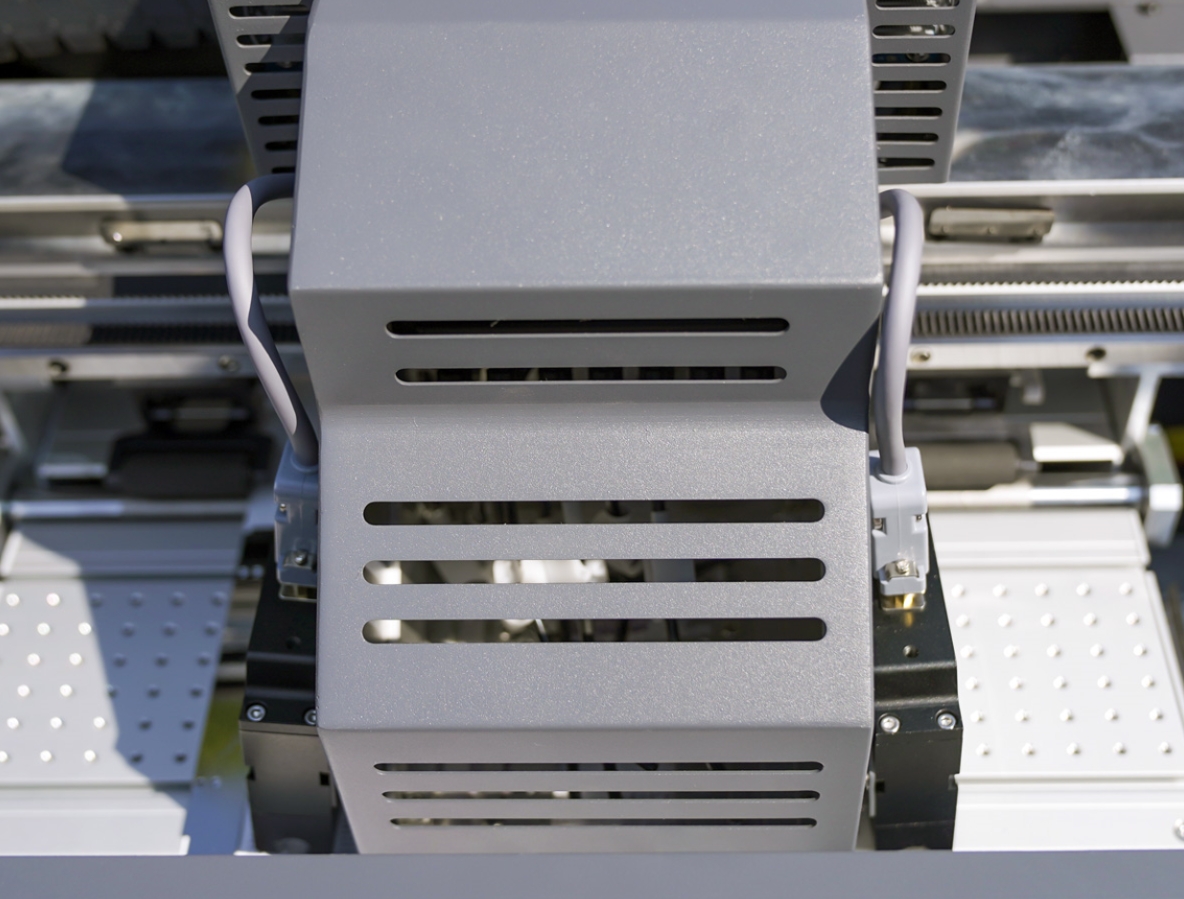

Dual UV LED Curing lamp can cure the ink after print efficaciously

Advantage13

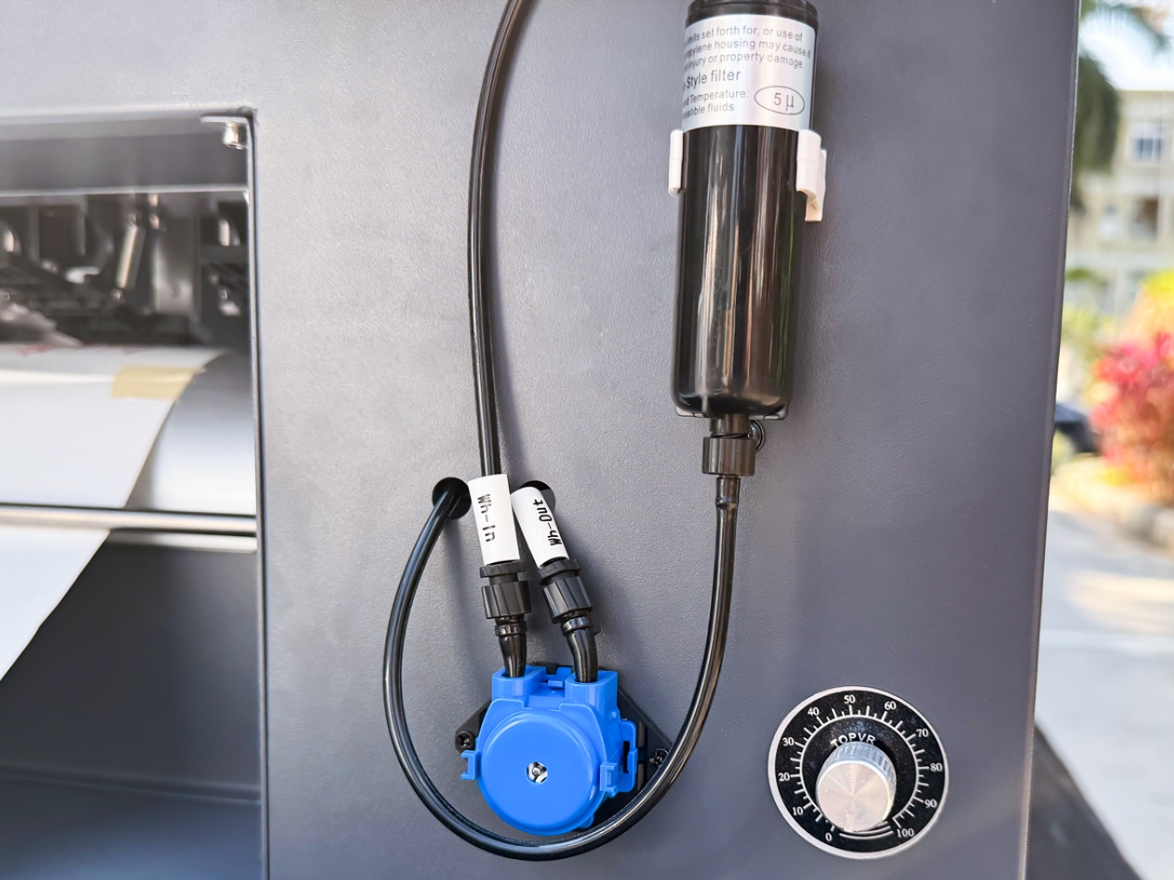

High quality white ink circulation peristaltic pump made from gear motor to extended the service life significantly

Advantage14

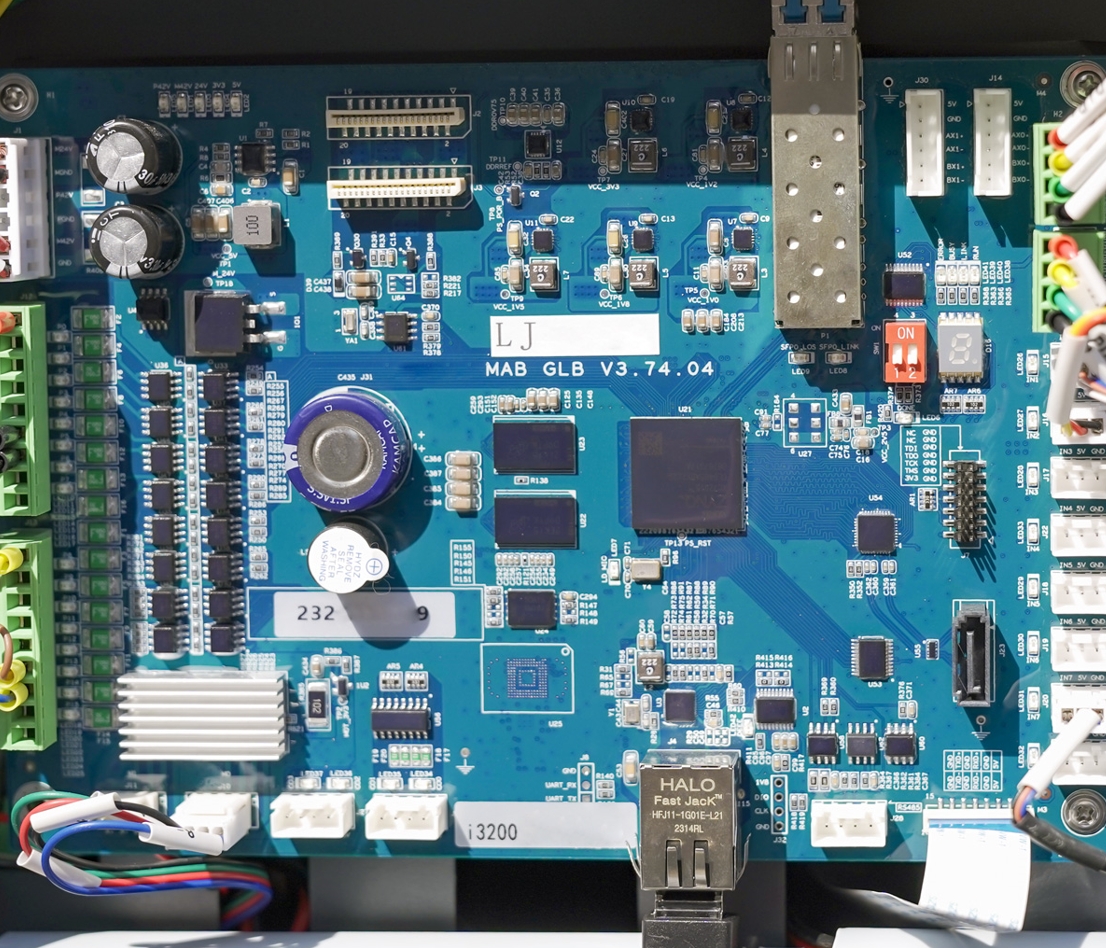

Industry 4.0 tertiary circuit protection design of the multi-functional printing board greatly improve the printing speed and printing quality

Advantage15

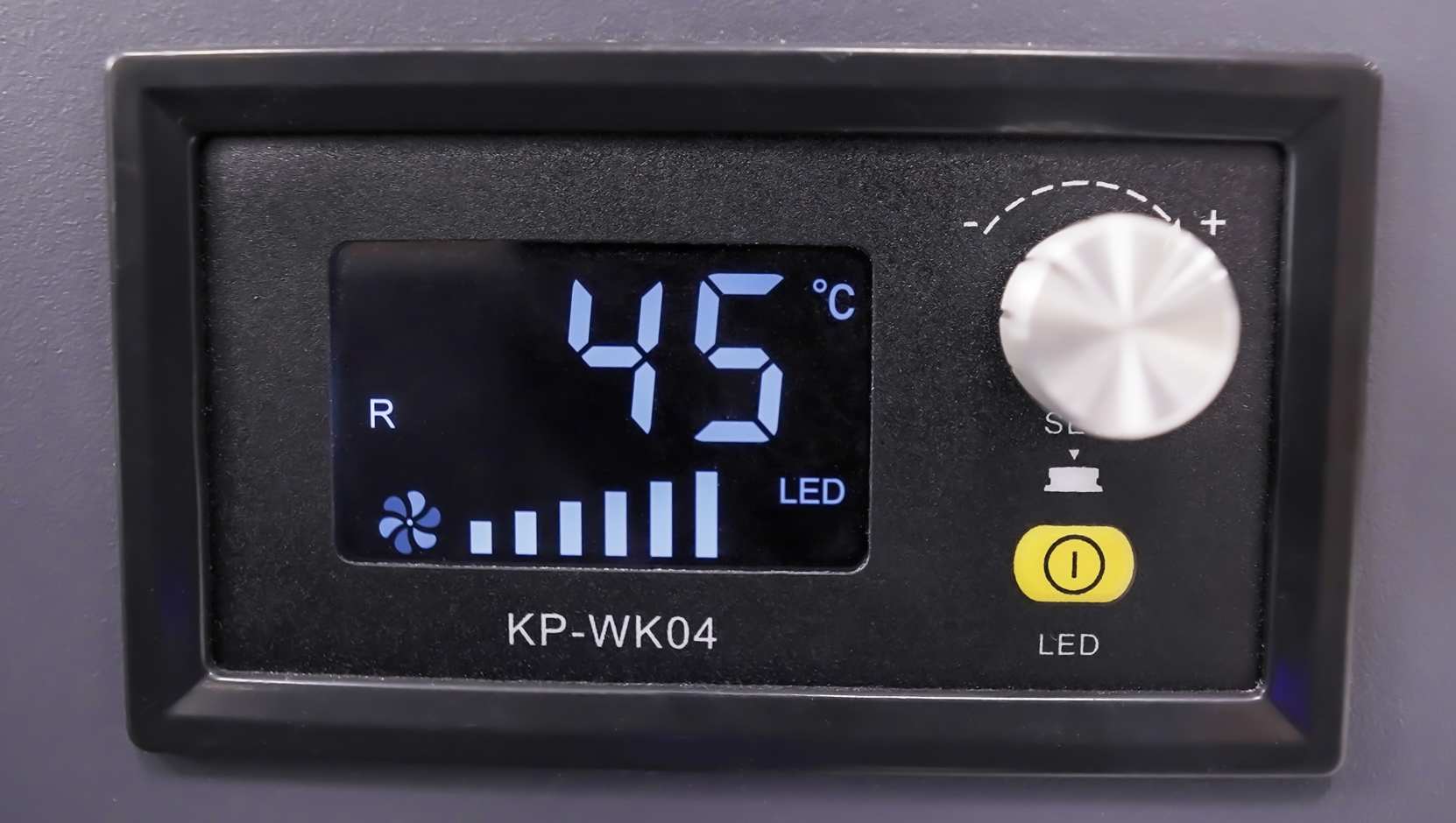

LED control panel for Pre-Heating Post heating & Table adsorption

Advantage16

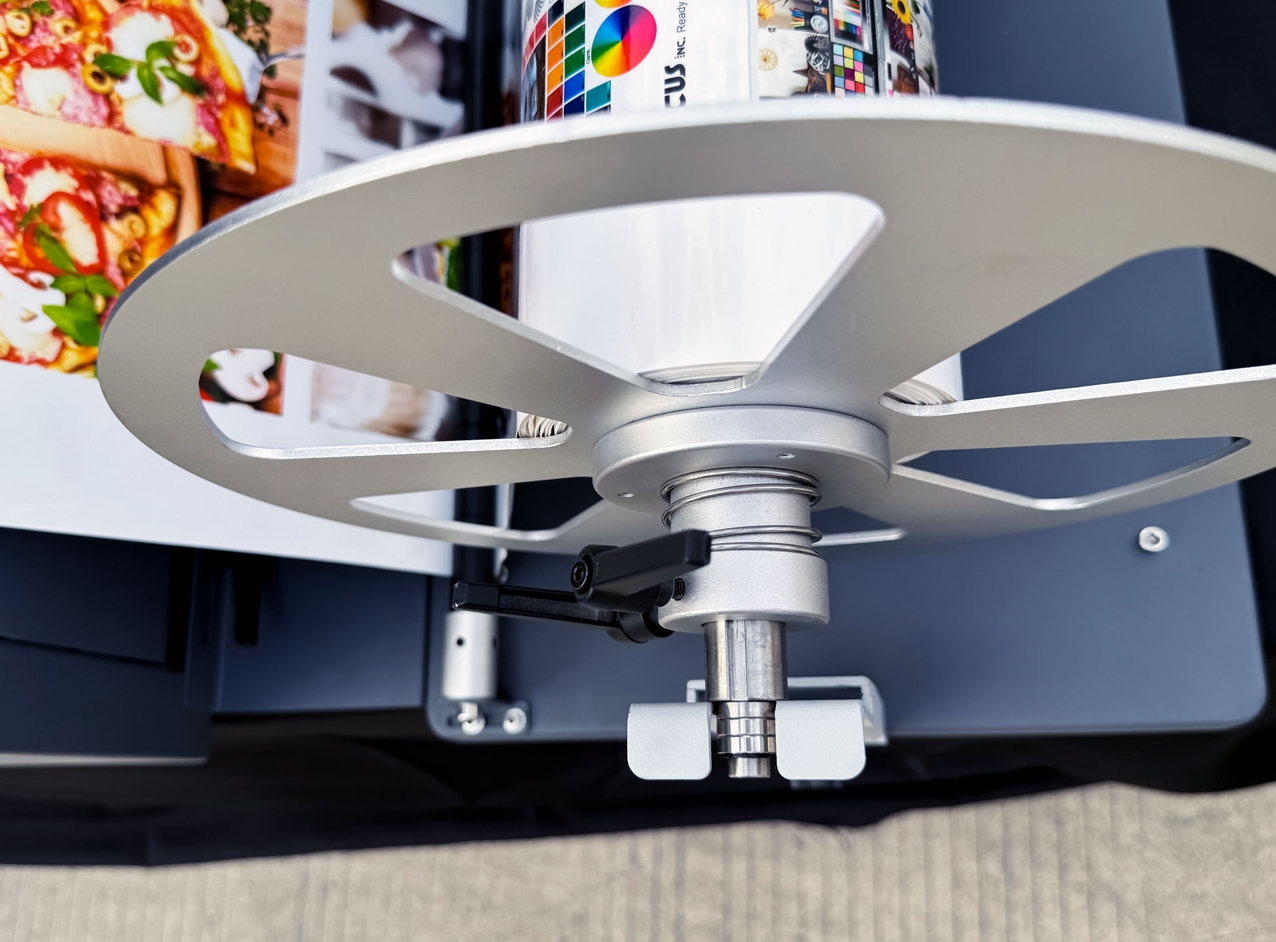

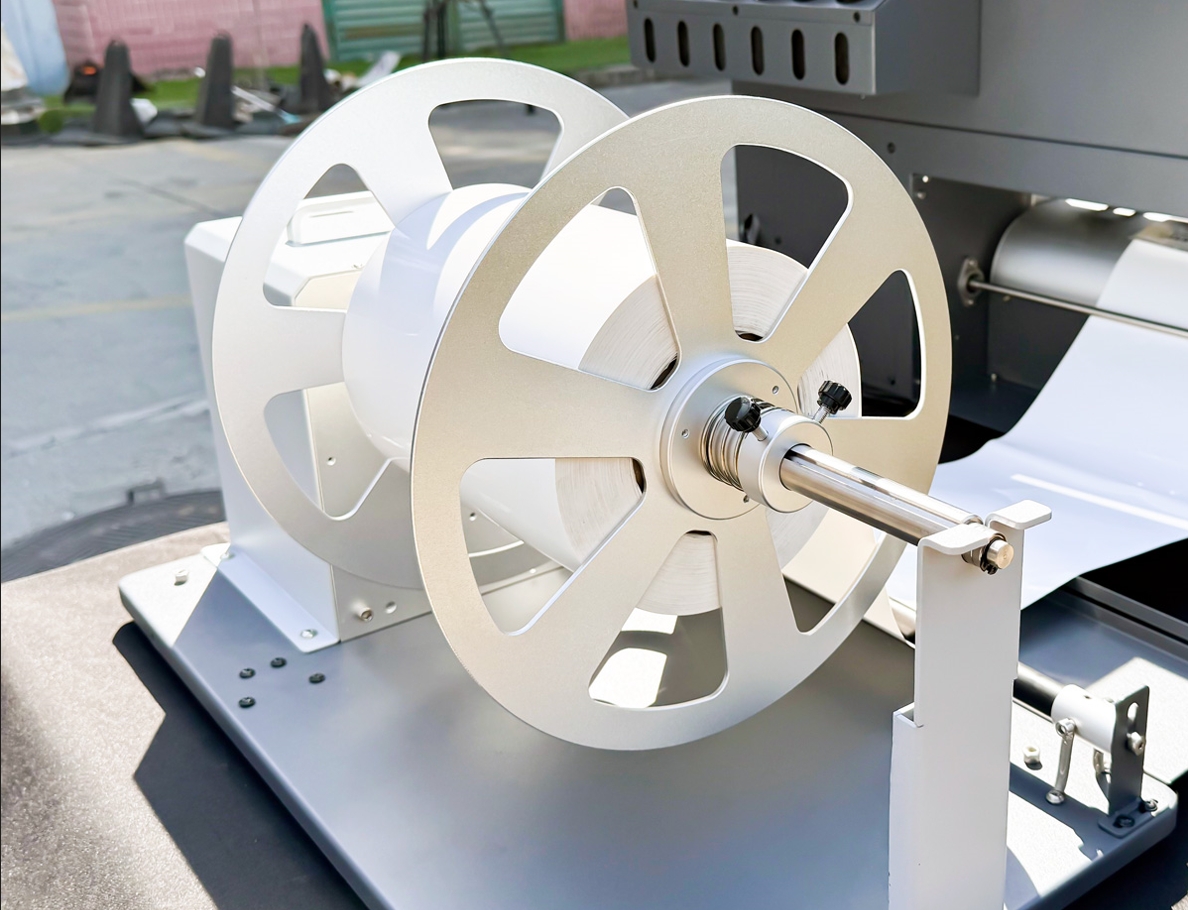

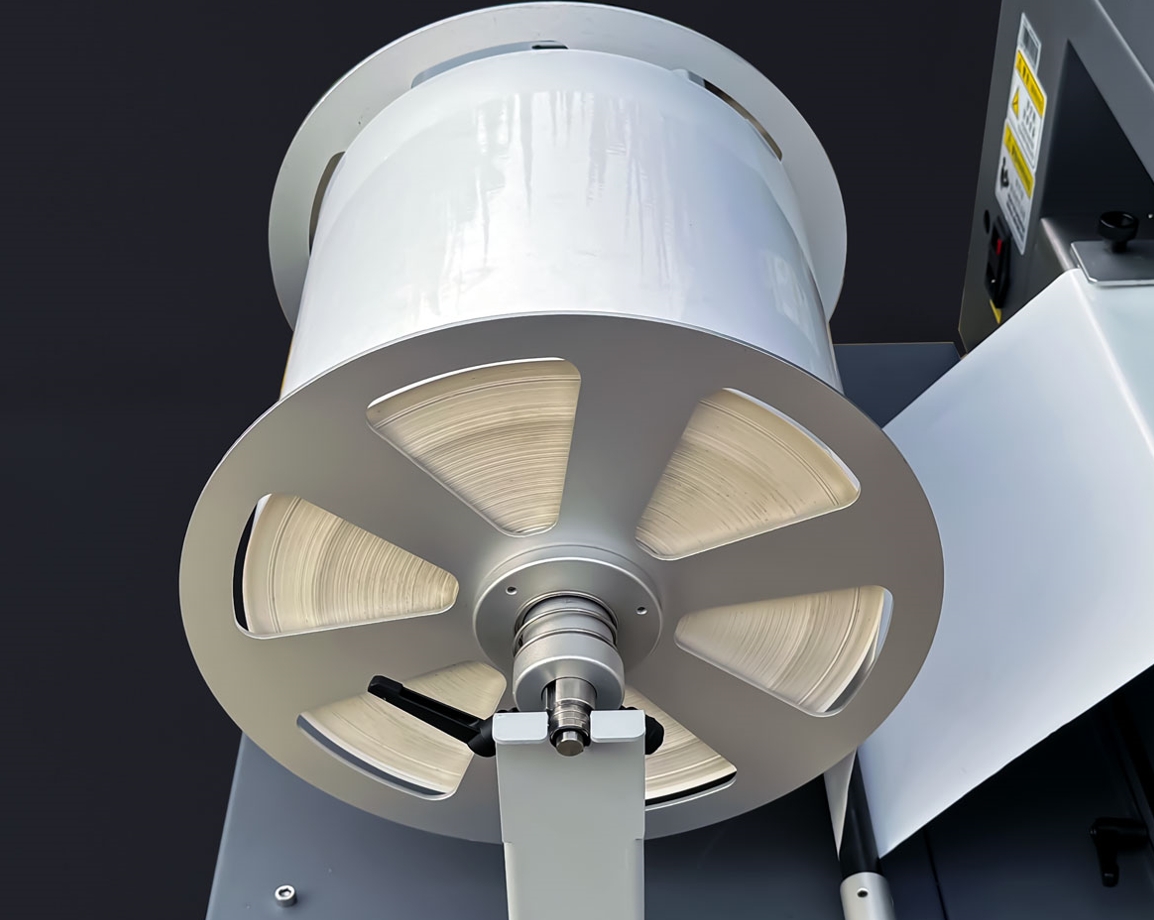

Self tension control baffle plate allow to load max. 350mm diameter media loading.

Advantage17

Self tension control rewinder

Advantage18

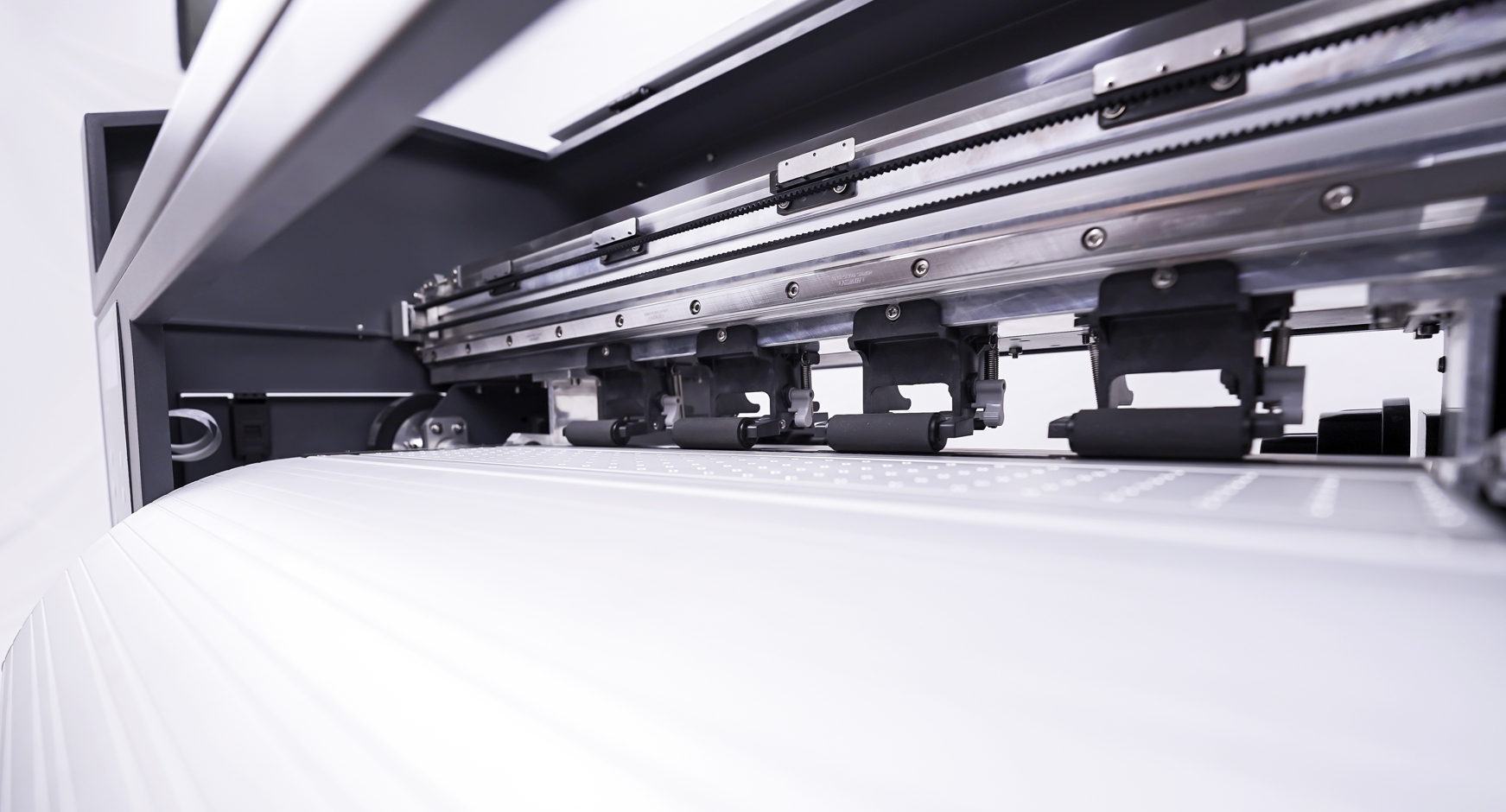

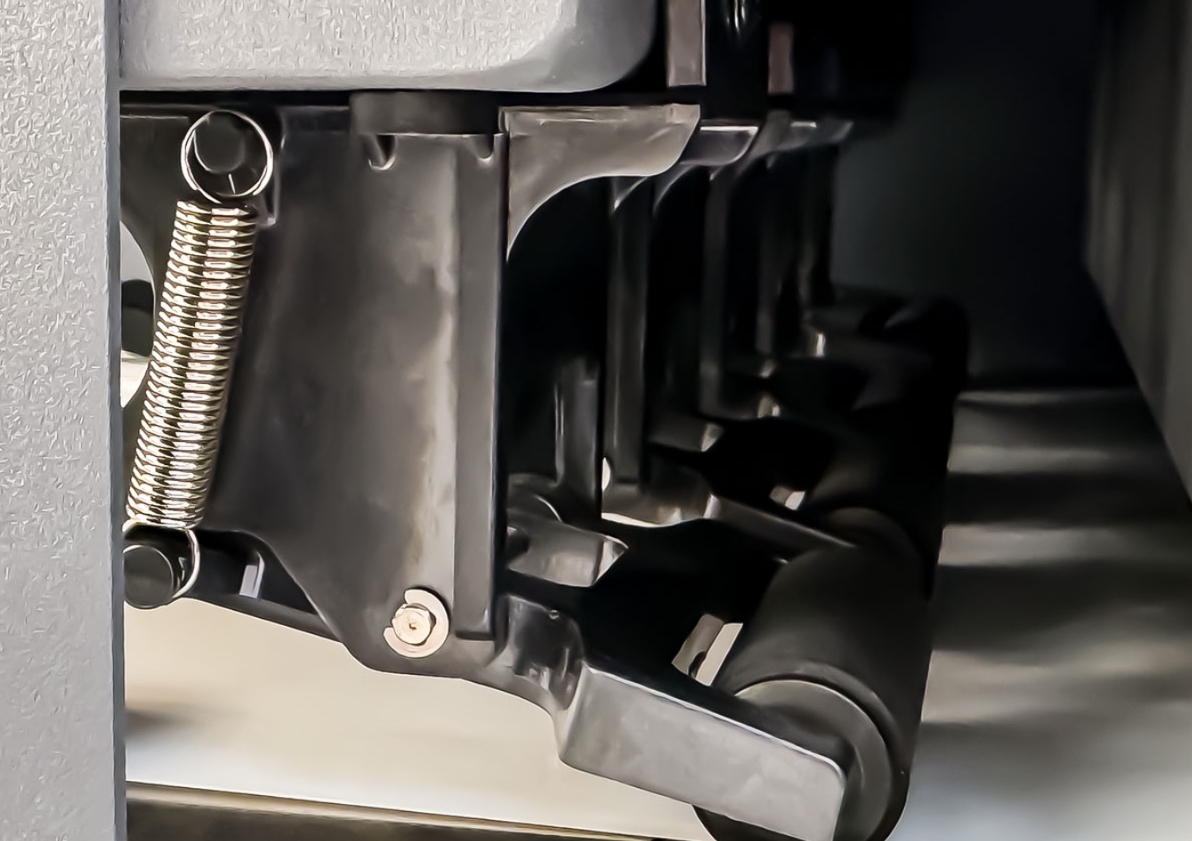

Multi pinch feed roller to make paper feeding stable and faster

Advantage19

Fast exchange roll paper kit.

Advantage20

Support 75mm 40mm 25mm different roller inner diameter paper loading.

Advantage21

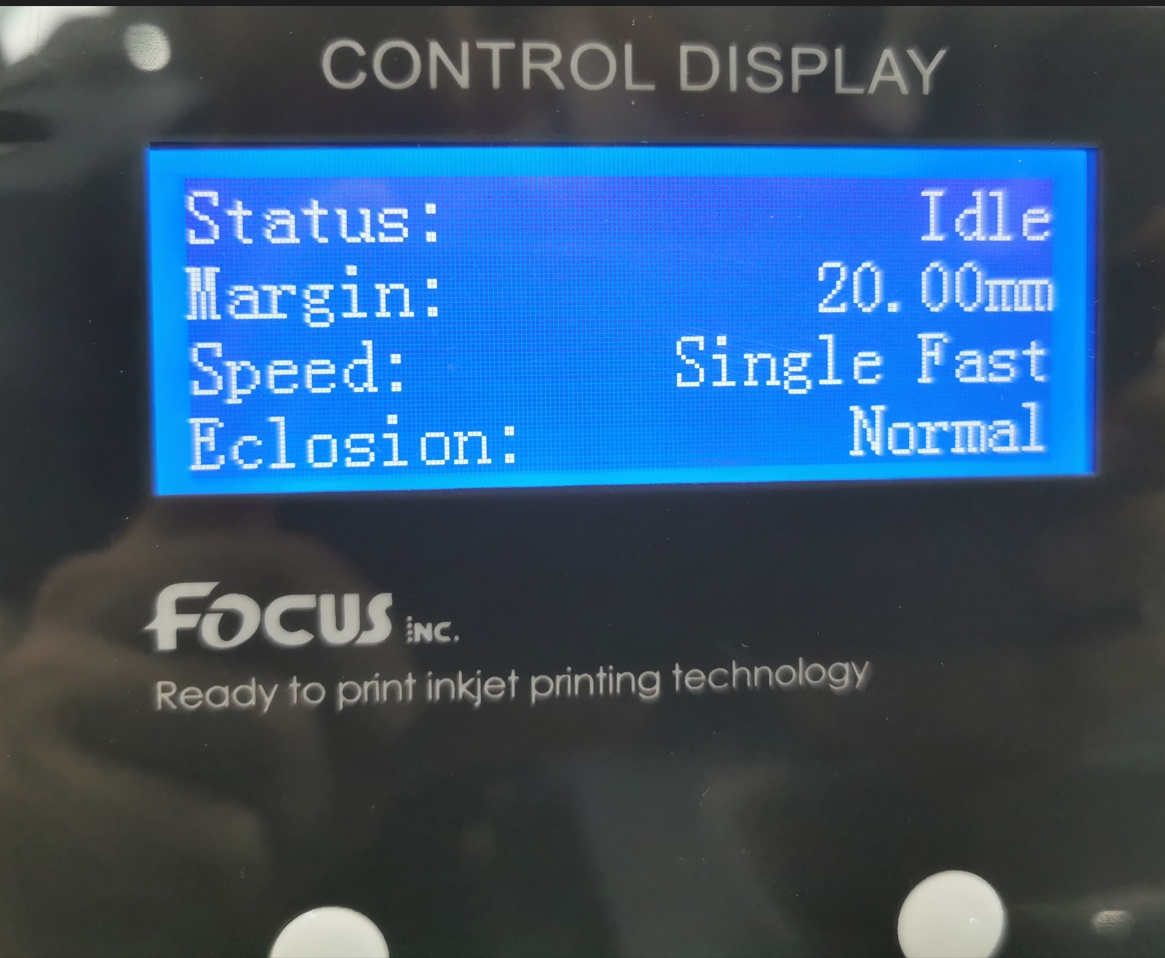

The multi-function printing control panel displays the printing process in real time and makes the printing operation more convenient and faster-

Advantage22

The quick material change and load design makes printing more convenient and faster

Advantage23

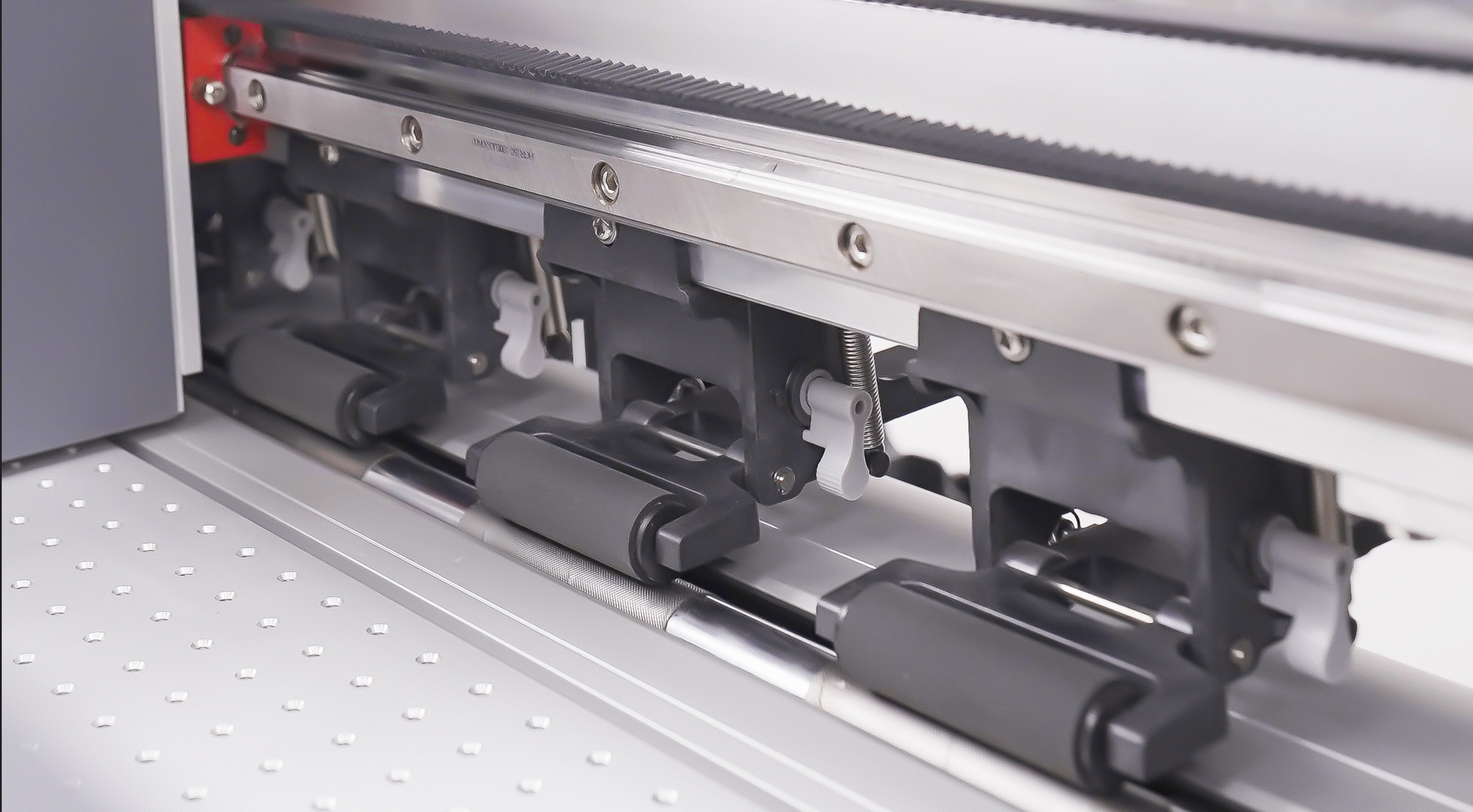

Anti-static rubber Pinch roller can effectively prevent waste ink accumulation to keep film clean and improve the accuracy of step printing

Advantage24

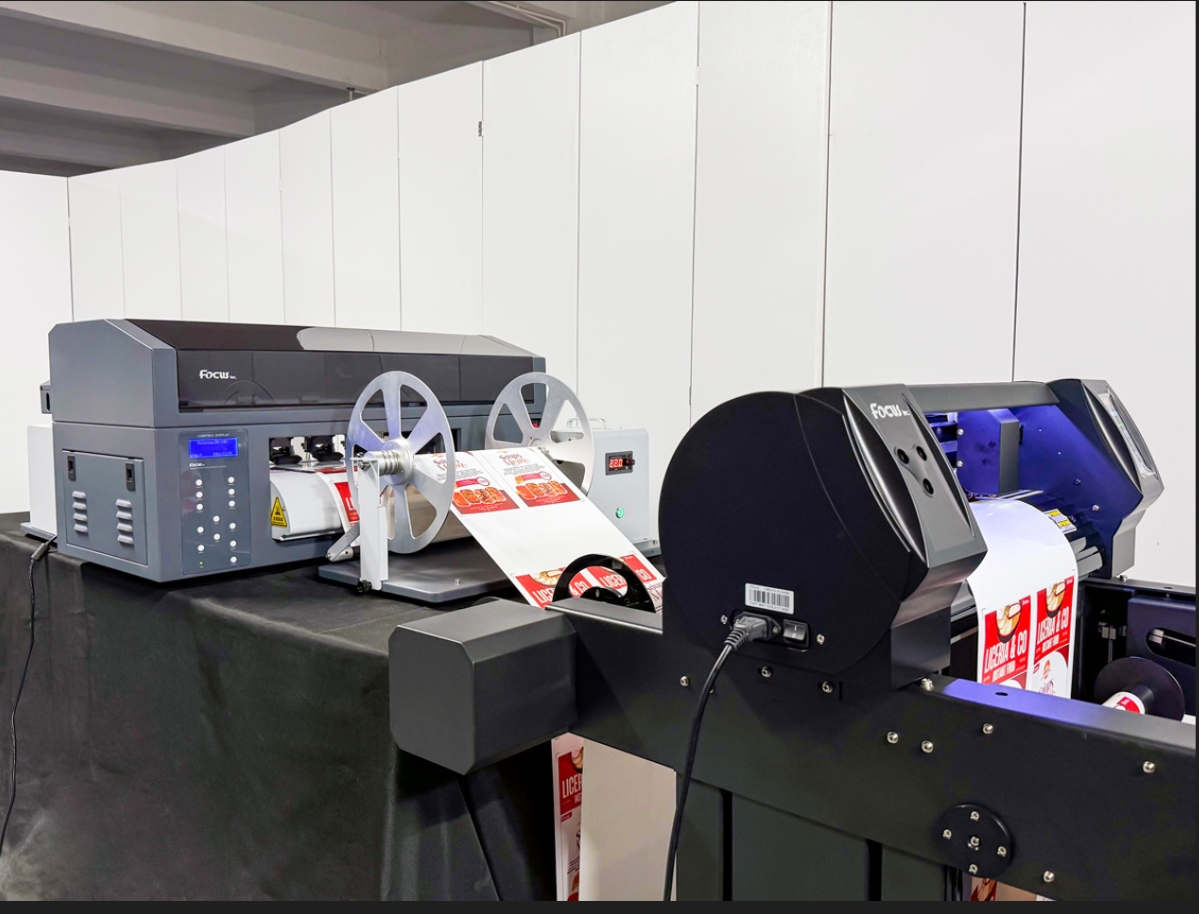

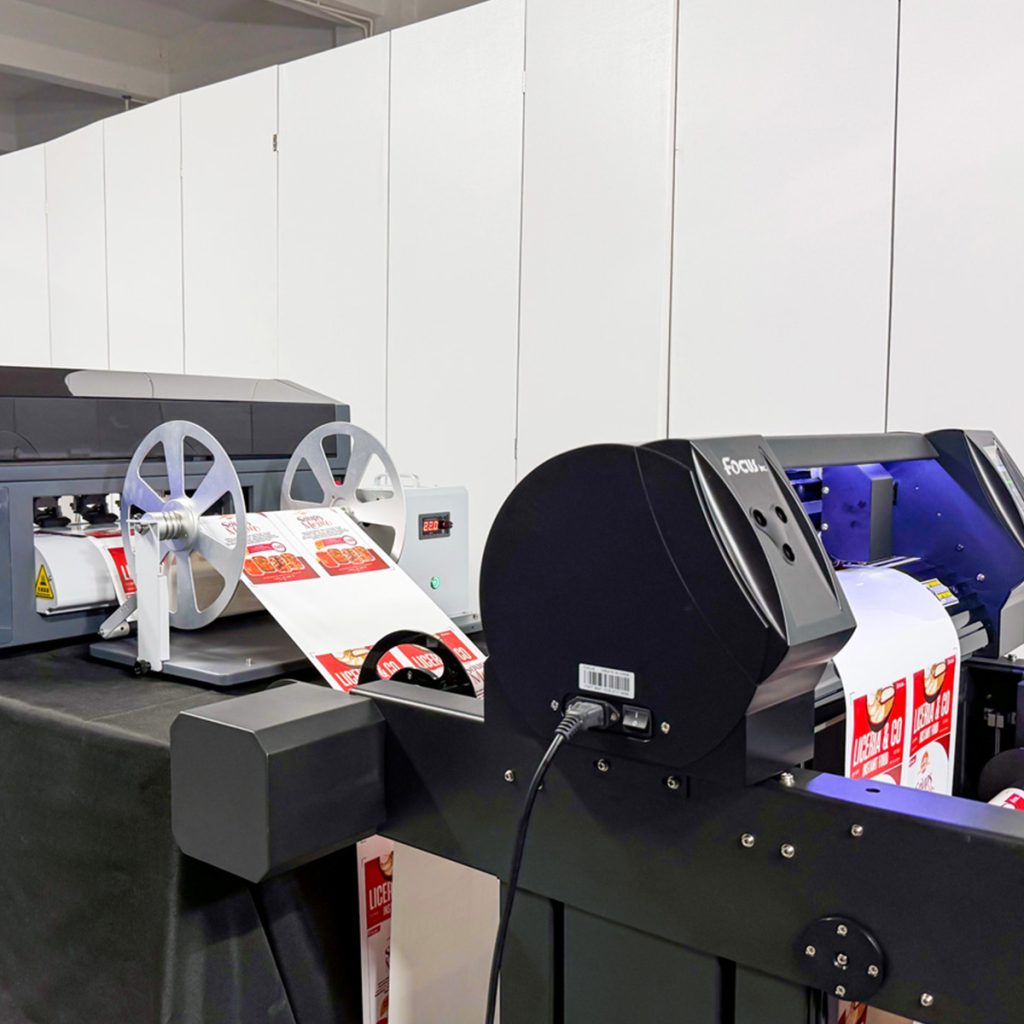

Can be used with automatic die-cutting, waste removal and rewinding system to achieve automated production

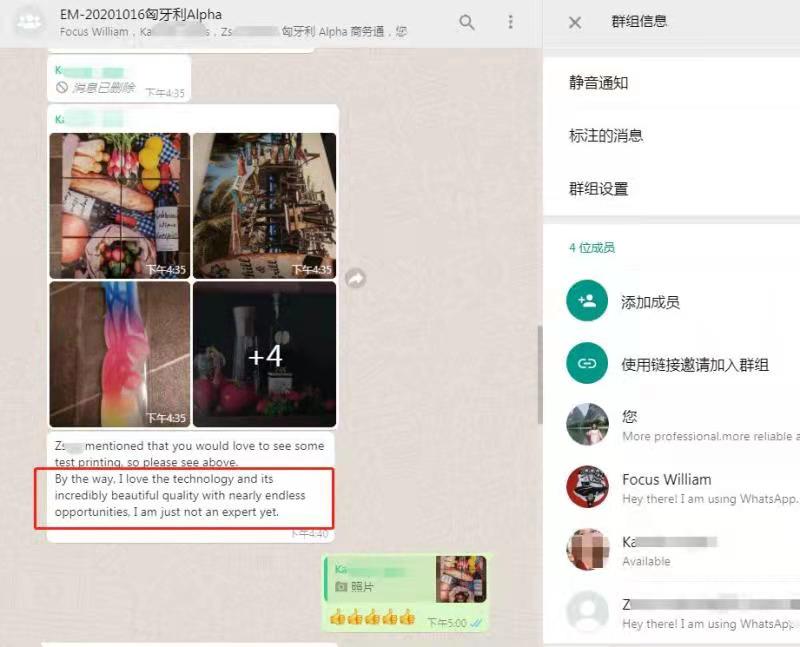

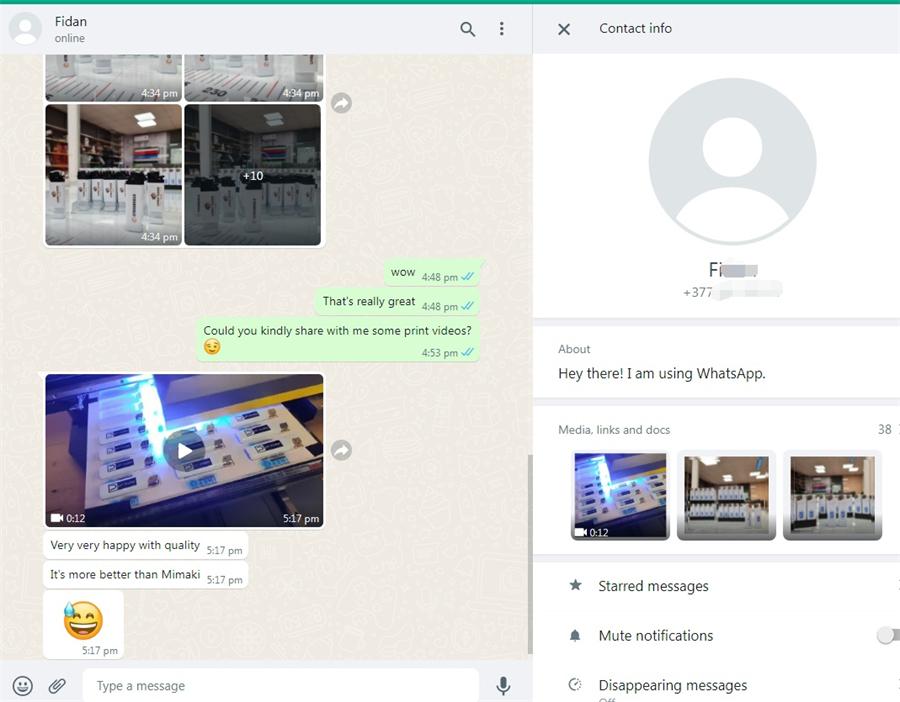

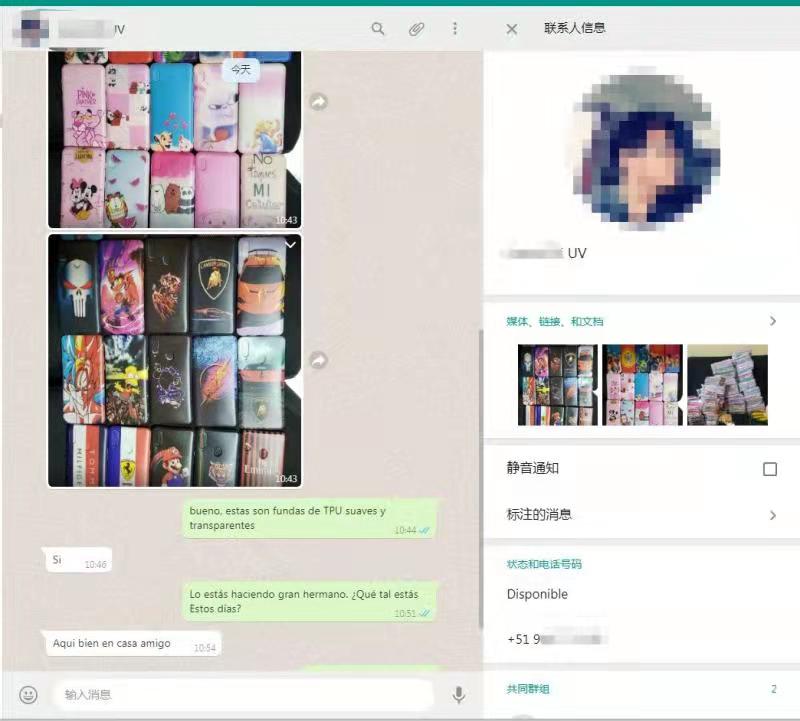

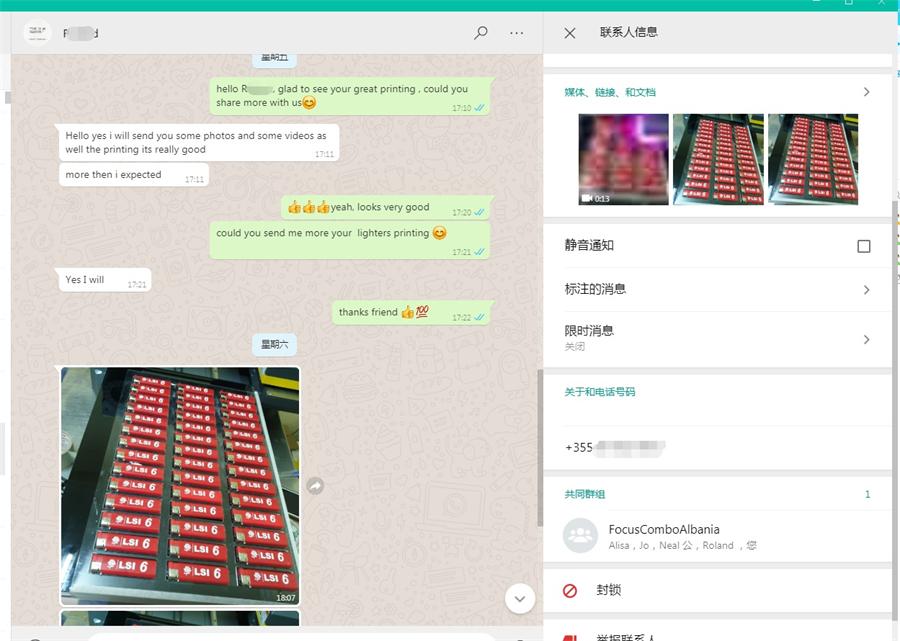

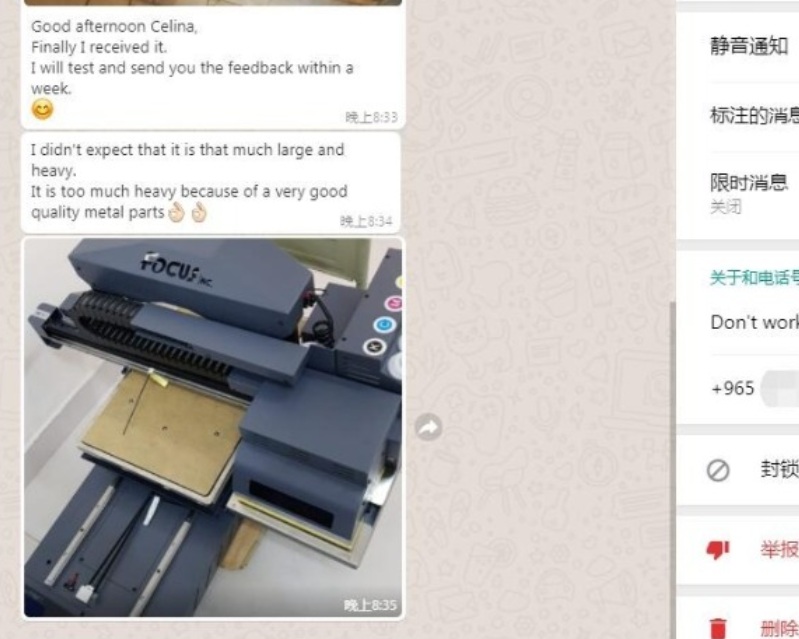

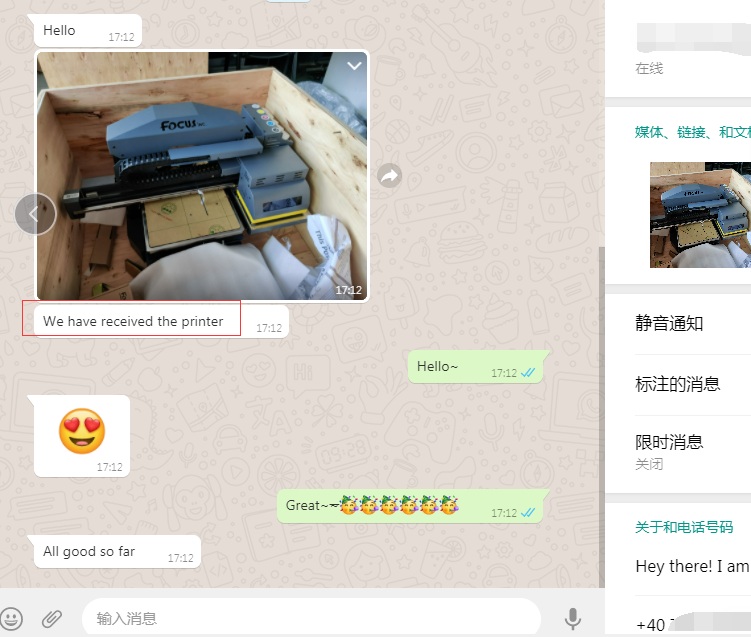

Customer feedback

Customer feedback1

Customer feedback2

Customer feedback3

Customer feedback4

Customer feedback5

Customer feedback6

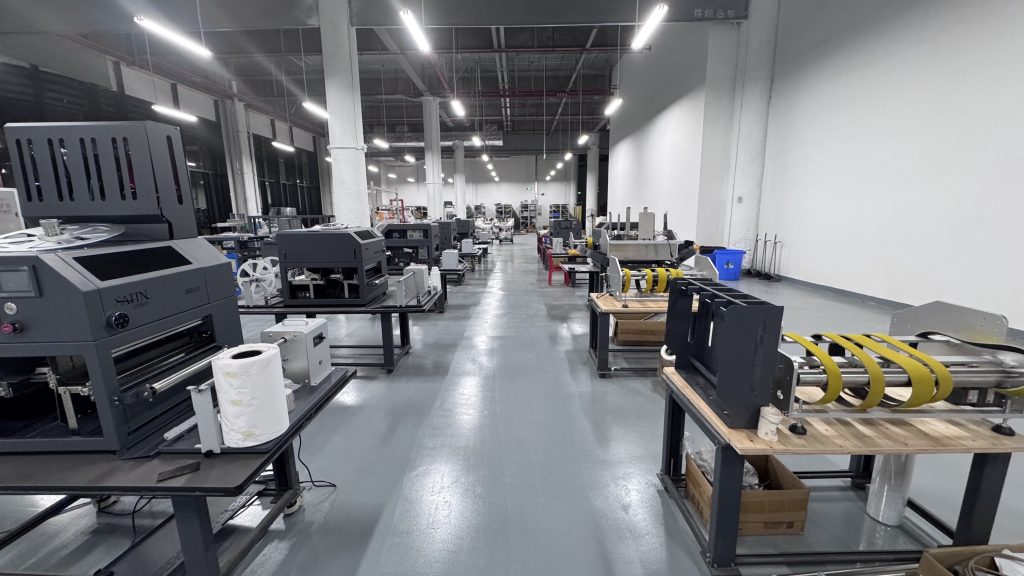

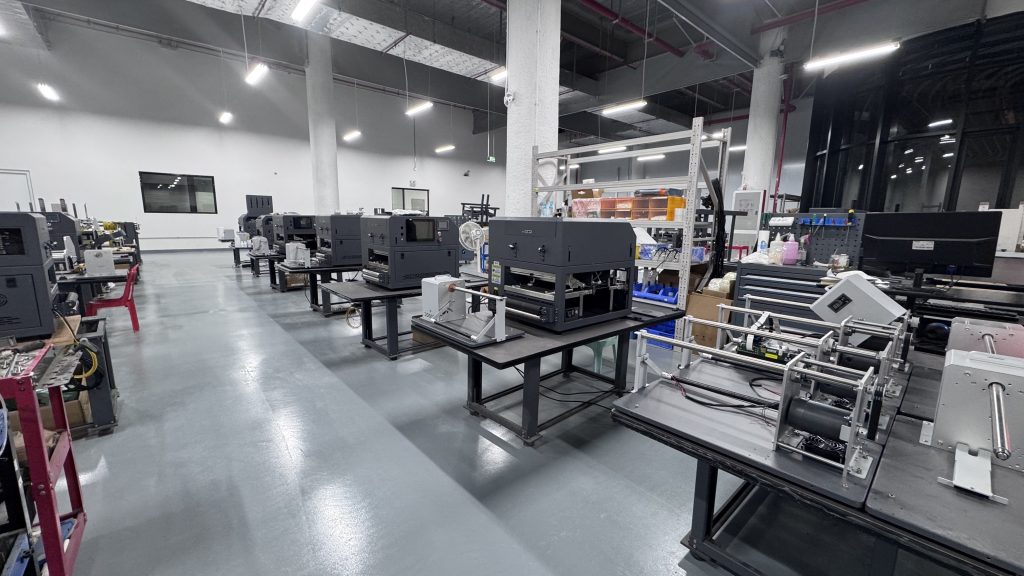

Production Line
